#include <emission.h>

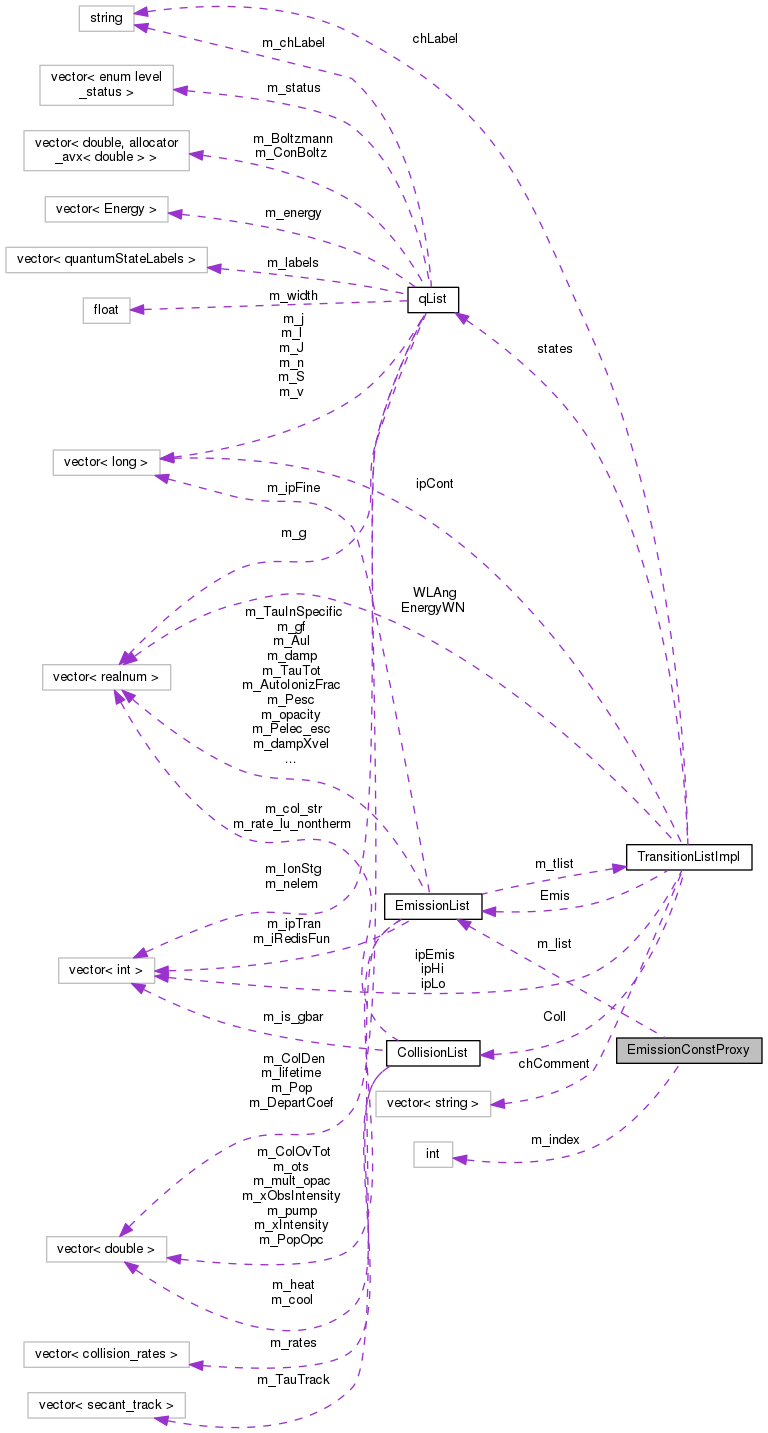

Collaboration diagram for EmissionConstProxy:

Public Types
typedef const EmissionList	list_type

typedef ProxyIterator < EmissionConstProxy, EmissionConstProxy >	iterator

typedef ProxyIterator < EmissionConstProxy, EmissionConstProxy >	const_iterator

Public Member Functions
	EmissionConstProxy ()

	EmissionConstProxy (const EmissionList *list, int index)

void	copy (const EmissionConstProxy &other)

void	check () const

int	iRedisFun () const

long int	ipFine () const

realnum	TauIn () const

realnum	TauInSpecific () const

realnum	TauTot () const

const tracker &	TauTrack () const

realnum	TauCon () const

realnum	FracInwd () const

double	pump () const

double	xIntensity () const

double	xObsIntensity () const

realnum	gf () const

realnum	Pesc () const

realnum	Pelec_esc () const

realnum	Pdest () const

realnum	Pesc_total () const

realnum	Ploss () const

realnum	dampXvel () const

realnum	damp () const

double	ColOvTot () const

realnum	AutoIonizFrac () const

realnum	opacity () const

double	mult_opac () const

double	PopOpc () const

realnum	Aul () const

double	ots () const

int	ipTran () const

TransitionConstProxy	Tran () const

Private Attributes
const EmissionList *	m_list

int	m_index

Friends
class	ProxyIterator< EmissionConstProxy, EmissionConstProxy >

Detailed Description

Definition at line 168 of file emission.h.

Member Typedef Documentation

typedef ProxyIterator<EmissionConstProxy,EmissionConstProxy> EmissionConstProxy::const_iterator

Definition at line 173 of file emission.h.

typedef ProxyIterator<EmissionConstProxy,EmissionConstProxy> EmissionConstProxy::iterator

Definition at line 172 of file emission.h.

typedef const EmissionList EmissionConstProxy::list_type

Definition at line 171 of file emission.h.

Constructor & Destructor Documentation

EmissionConstProxy::EmissionConstProxy ( )

inlineexplicit

Definition at line 179 of file emission.h.

EmissionConstProxy::EmissionConstProxy	(	const EmissionList *	list,
		int	index
	)

inlineexplicit

Definition at line 180 of file emission.h.

Member Function Documentation

realnum EmissionConstProxy::Aul ( ) const

inline

transition prob, Einstein A upper to lower [s-1]

Definition at line 673 of file emission.h.

References EmissionList::m_Aul, m_index, and m_list.

realnum EmissionConstProxy::AutoIonizFrac ( ) const

inline

[dimensionless] branching ratio to auto-ionization, Sum(Aai) / ( Sum(Aul) + Sum(Aai) )

Definition at line 633 of file emission.h.

References EmissionList::m_AutoIonizFrac, m_index, and m_list.

void EmissionConstProxy::check ( ) const

inline

all of these are set to dangerous values by EmLineJunk

Definition at line 184 of file emission.h.

References ASSERT, and ipTran().

Here is the call graph for this function:

double EmissionConstProxy::ColOvTot ( ) const

inline

[dimensionless] ratio of collisional to radiative excitation, C_lu / ( C_lu + pump )

Definition at line 623 of file emission.h.

References EmissionList::m_ColOvTot, m_index, and m_list.

void EmissionConstProxy::copy ( const EmissionConstProxy & other )

realnum EmissionConstProxy::damp ( ) const

inline

[dimensionless] damping constant

Definition at line 613 of file emission.h.

References EmissionList::m_damp, m_index, and m_list.

realnum EmissionConstProxy::dampXvel ( ) const

inline

damping constant is dampXvel divided by line width units are velocity, since becomes dimensionless when div by line width in cm/2 [cm s-1]

Definition at line 603 of file emission.h.

References EmissionList::m_dampXvel, m_index, and m_list.

realnum EmissionConstProxy::FracInwd ( ) const

inline

inward fraction [dimensionless] of total line emission

Definition at line 513 of file emission.h.

References EmissionList::m_FracInwd, m_index, and m_list.

realnum EmissionConstProxy::gf ( ) const

inline

gf value [dimensionless]

Definition at line 563 of file emission.h.

References EmissionList::m_gf, m_index, and m_list.

long int EmissionConstProxy::ipFine ( ) const

inline

index for line within fine continuum array, for line overlap

Definition at line 453 of file emission.h.

References m_index, EmissionList::m_ipFine, and m_list.

int EmissionConstProxy::ipTran ( ) const

inline

Definition at line 553 of file emission.h.

References m_index, EmissionList::m_ipTran, and m_list.

Referenced by check(), and Tran().

int EmissionConstProxy::iRedisFun ( ) const

inline

type of redistribution function,

-1 complete redis Doppler core only, 0 insanity 1 incomplete redistribution with damping wings, 2 complete redistribution with damping wings,

Definition at line 443 of file emission.h.

References m_index, EmissionList::m_iRedisFun, and m_list.

double EmissionConstProxy::mult_opac ( ) const

inline

Definition at line 653 of file emission.h.

References m_index, m_list, and EmissionList::m_mult_opac.

realnum EmissionConstProxy::opacity ( ) const

inline

atomic constant part of line opacity per atom, divide by line width in cm/s, to get line center opacity per atom, or absorption cross section, with units cm^2 multiply by PopOpc to get PopOpc/dopper width, the true opacity (cm-1), then by length to get optical depth

Definition at line 643 of file emission.h.

References m_index, m_list, and EmissionList::m_opacity.

double EmissionConstProxy::ots ( ) const

inline

ots rate [cm-3 s-1]

Definition at line 683 of file emission.h.

References m_index, m_list, and EmissionList::m_ots.

realnum EmissionConstProxy::Pdest ( ) const

inline

destruction probs [dimensionless]

Definition at line 593 of file emission.h.

References m_index, m_list, and EmissionList::m_Pdest.

Referenced by Ploss().

realnum EmissionConstProxy::Pelec_esc ( ) const

inline

electron scattering escape prob [dimensionless]

Definition at line 583 of file emission.h.

References m_index, m_list, and EmissionList::m_Pelec_esc.

Referenced by Pesc_total().

realnum EmissionConstProxy::Pesc ( ) const

inline

escape prob [dimensionless]

Definition at line 573 of file emission.h.

References m_index, m_list, and EmissionList::m_Pesc.

Referenced by Pesc_total().

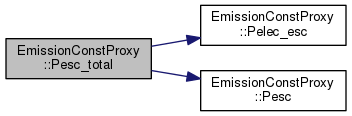

realnum EmissionConstProxy::Pesc_total ( ) const

inline

total escape prob, from line and continuum scattering [dimensionless]

Definition at line 276 of file emission.h.

References Pelec_esc(), and Pesc().

Referenced by Ploss().

Here is the call graph for this function:

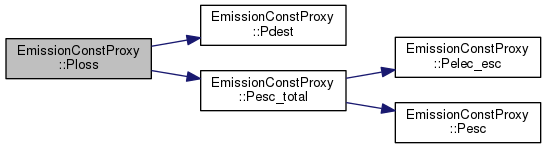

realnum EmissionConstProxy::Ploss ( ) const

inline

total loss from trapped line – escape & destruction [dimensionless]

Definition at line 279 of file emission.h.

References Pdest(), and Pesc_total().

Here is the call graph for this function:

double EmissionConstProxy::PopOpc ( ) const

inline

Population that enters net opacity after correction for stimulated emission [cm-3]

Definition at line 663 of file emission.h.

References m_index, m_list, and EmissionList::m_PopOpc.

double EmissionConstProxy::pump ( ) const

inline

continuum pumping rate [s-1] from lower to upper level, A*occ num * g_up/g_lo, this is evaluated in RTMakeStat and RTMakeWind, which are called by HydroPEsc, RT_line_all

Definition at line 523 of file emission.h.

References m_index, m_list, and EmissionList::m_pump.

realnum EmissionConstProxy::TauCon ( ) const

inline

TauCon - line optical depth [Napier] to the continuum source from the illuminated face to the current position. For an open or expanding closed geometry TauCon is equal to TauIn. For a static closed geometry TauCon is optical depth from the illuminated face to the current depth

Definition at line 503 of file emission.h.

References m_index, m_list, and EmissionList::m_TauCon.

realnum EmissionConstProxy::TauIn ( ) const

inline

optical depths - the escape probability is derived only from TauIn on first iteration. on later iterations it is the average ofesc prob in inward (TauIn) and outward (TauTot - TauIn) directions TauIn - the total inward line optical depth [Napier], in the direction of the continuum source. This is measured from the illuminated face of the cloud to the current position on the first iteration, and on second and later iterations in an open geometry or in an expanding closed geometry. For a static spherical geometry TauIn is the sum of the optical depth from the current position to the illuminated face plus the optical depth on the "other side". At the illuminated face in a static spherical geometry TauIn is TauTot / 2. It includes the effects of line overlap.

Definition at line 463 of file emission.h.

References m_index, m_list, and EmissionList::m_TauIn.

realnum EmissionConstProxy::TauInSpecific ( ) const

inline

TauInSpecific - the inward optical line depth [Napier], in the direction of the continuum source. This is much like TauIn(), except that it does not contain contributions from line overlap.

Definition at line 473 of file emission.h.

References m_index, m_list, and EmissionList::m_TauInSpecific.

realnum EmissionConstProxy::TauTot ( ) const

inline

TauTot - total line optical depth [Napier] through the cloud. TauTot is not used on the first iteration since it is not known. On second and later iterations in an open or expanding closed geometry this is the total optical depth through the computed structure. For a static closed geometry this is twice the computed structure since the geometry is assumed to be symmetric.

when the double command is entered TauTot is set to twice the normal value to simulate the presence of material beyond the computed structure.

Definition at line 483 of file emission.h.

References m_index, m_list, and EmissionList::m_TauTot.

const tracker & EmissionConstProxy::TauTrack ( ) const

inline

TauTrack - track convergence of TauIn / TauTot This class will detect oscillations and adjust the next estimate for TauIn / TauTot if this occurs

Definition at line 493 of file emission.h.

References m_index, m_list, and EmissionList::m_TauTrack.

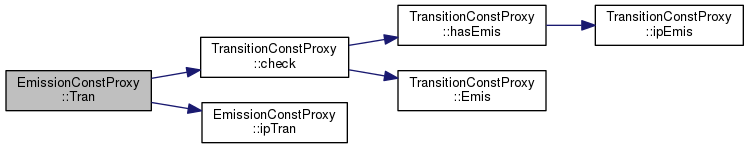

TransitionConstProxy EmissionConstProxy::Tran ( ) const

inline

Definition at line 520 of file transition.h.

References TransitionConstProxy::check(), ipTran(), m_list, and EmissionList::m_tlist.
