cloudy: EnergyEntry Class Reference

#include <energy.h>

Inheritance diagram for EnergyEntry:

Inheritance graph

Collaboration diagram for EnergyEntry:

Collaboration graph

Public Member Functions
	EnergyEntry ()

	EnergyEntry (double energy)

	EnergyEntry (double energy, const char *unit)

void	set (double energy, const char *unit)

void	set (double energy)

long	ip_C ()

long	ip_fortran ()

Public Member Functions inherited from Energy
	Energy ()

	Energy (double energy)

	Energy (double energy, const char *unit)

bool	operator< (const Energy &e) const

void	set (double energy)

void	set (double energy, const char *unit)

double	get (const char *unit) const

double	Ryd () const

double	K () const

double	Erg () const

double	WN () const

double	eV () const

double	keV () const

double	MeV () const

double	Hz () const

double	kHz () const

double	MHz () const

double	GHz () const

double	Angstrom () const

double	nm () const

double	micron () const

double	mm () const

double	cm () const

Private Member Functions
void	p_set_ip ()

Private Attributes
long	p_ip

Detailed Description

EnergyEntry: class for storing a continuum energy and its associated pointer as a pair. This class is safe to construct even before the mesh is set up, as in that case calculating the pointer is delayed until it is actually needed. The energy can be changed after construction using the set() methods, but only if the mesh is already set up.

Definition at line 105 of file energy.h.

Constructor & Destructor Documentation

EnergyEntry::EnergyEntry ( )

inline

Definition at line 110 of file energy.h.

References p_ip.

EnergyEntry::EnergyEntry ( double energy )

inline

Definition at line 114 of file energy.h.

References p_ip.

EnergyEntry::EnergyEntry	(	double	energy,
		const char *	unit
	)

inline

Definition at line 118 of file energy.h.

References p_ip.

Member Function Documentation

long EnergyEntry::ip_C ( )

inline

Definition at line 133 of file energy.h.

References p_ip, and p_set_ip().

Referenced by ip_fortran().

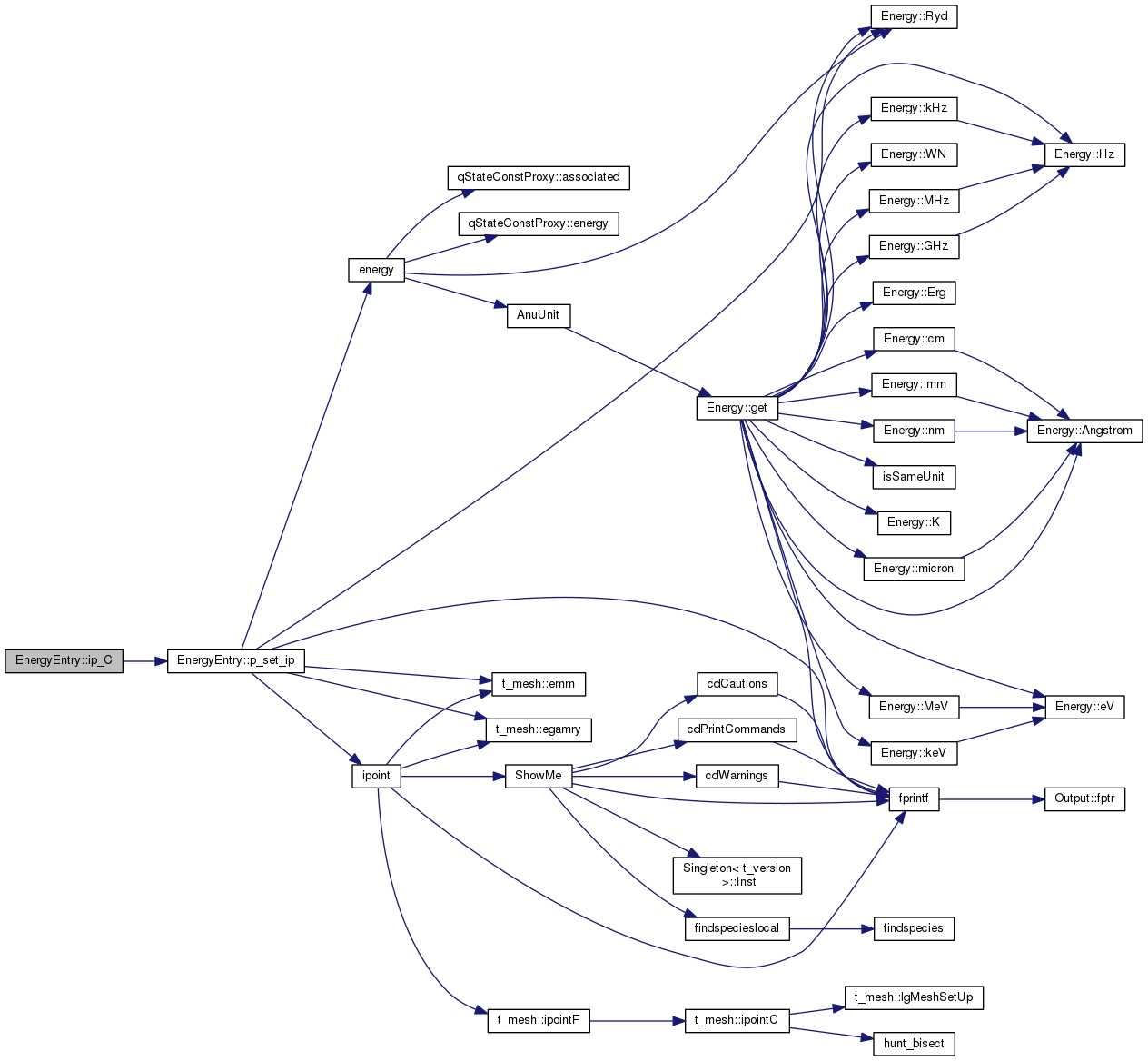

Here is the call graph for this function:

long EnergyEntry::ip_fortran ( )

inline

Definition at line 142 of file energy.h.

References ip_C().

Here is the call graph for this function:

void EnergyEntry::p_set_ip ( )

private

Definition at line 290 of file energy.cpp.

References ASSERT, cdEXIT, DEBUG_ENTRY, t_mesh::egamry(), t_mesh::emm(), energy(), EXIT_FAILURE, fprintf(), ioQQQ, ipoint(), p_ip, rfield, and Energy::Ryd().

Referenced by ip_C(), and set().

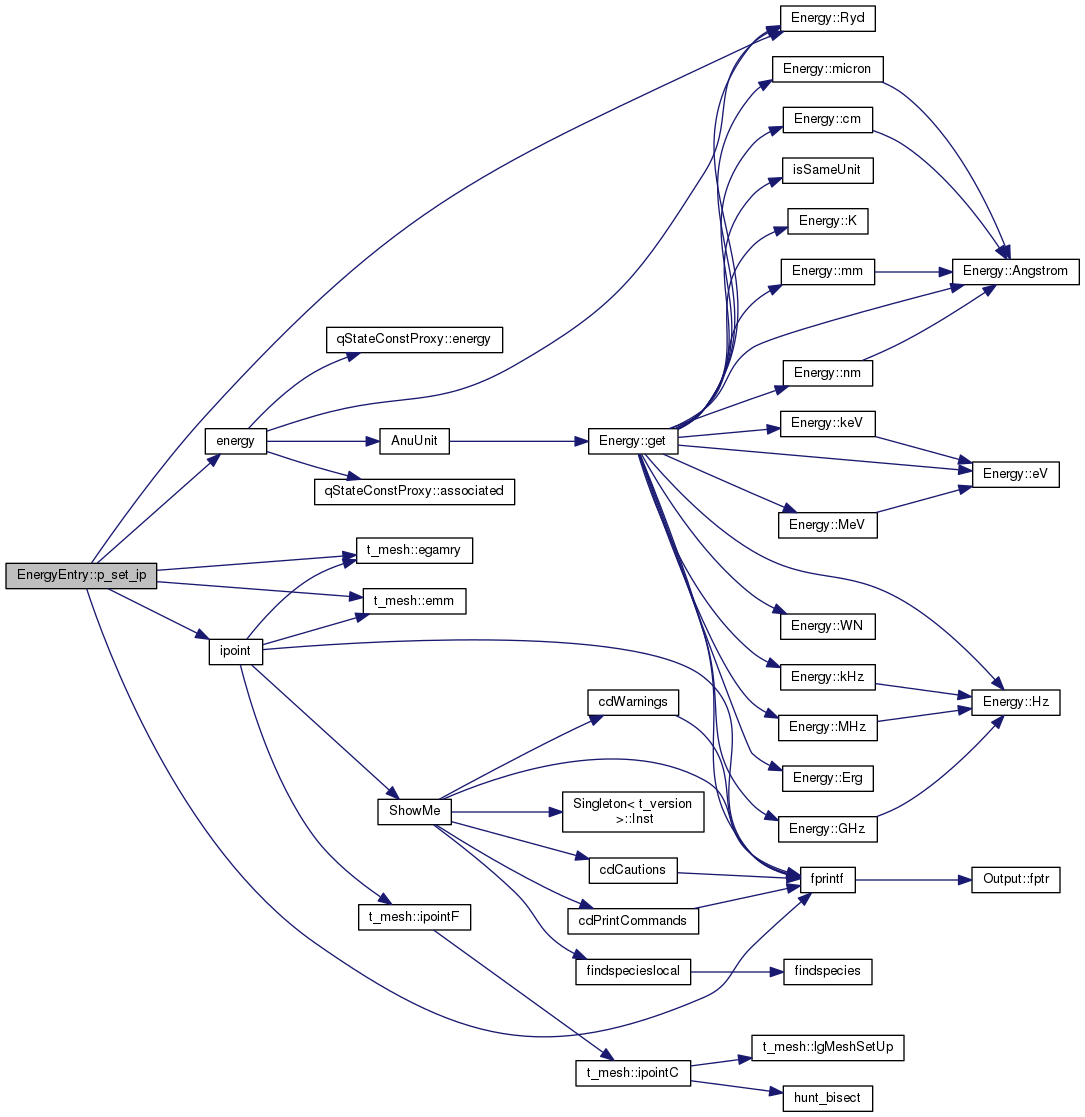

Here is the call graph for this function:

void EnergyEntry::set	(	double	energy,
		const char *	unit
	)

inline

Definition at line 122 of file energy.h.

References p_set_ip(), and Energy::set().

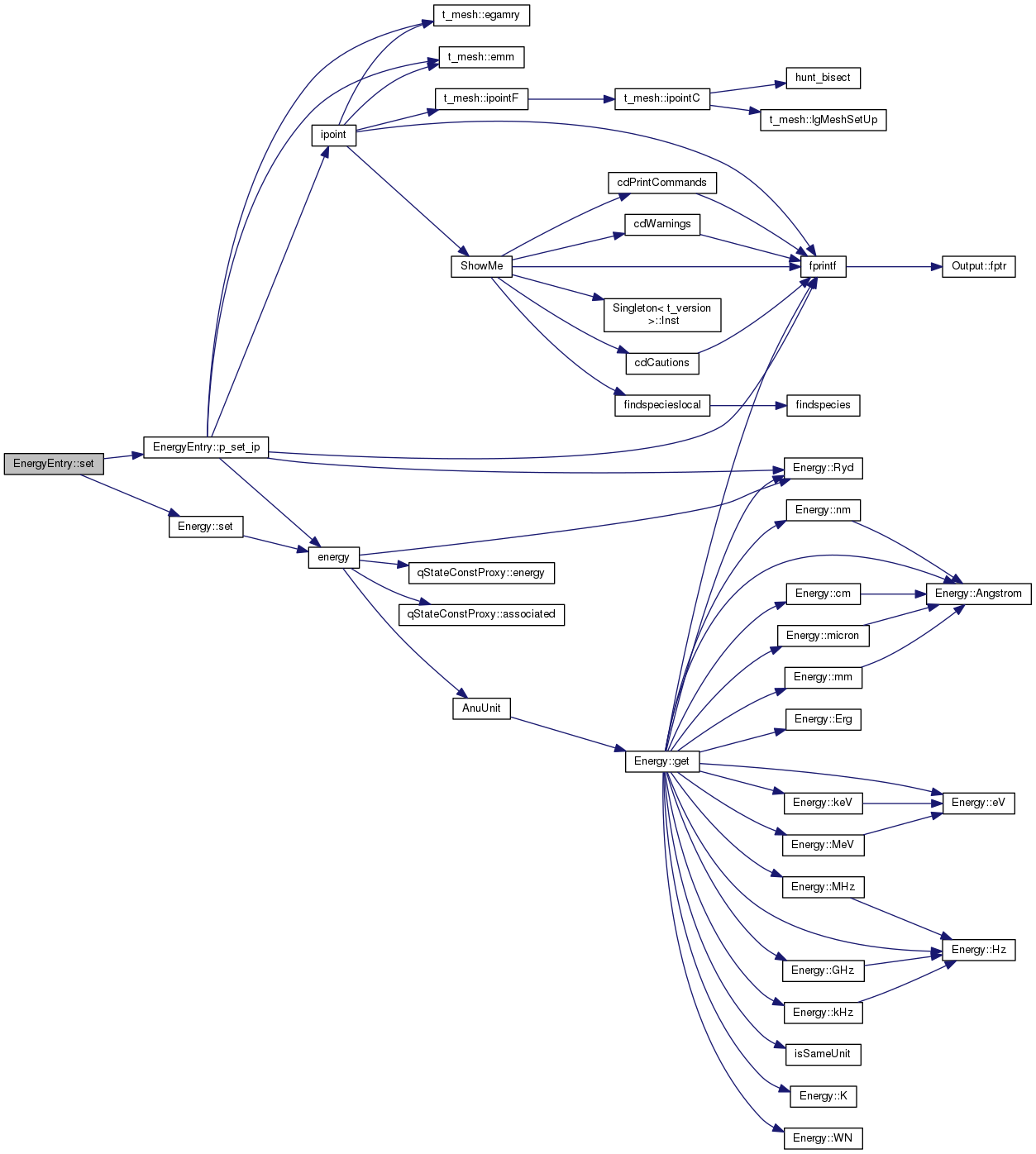

Here is the call graph for this function:

void EnergyEntry::set ( double energy )

inline

Definition at line 127 of file energy.h.

References p_set_ip(), and Energy::set().

Here is the call graph for this function:

Field Documentation

long EnergyEntry::p_ip

private

Definition at line 107 of file energy.h.

Referenced by EnergyEntry(), ip_C(), and p_set_ip().

The documentation for this class was generated from the following files:

/home66/gary/public_html/cloudy/c17_branch/source/energy.h
/home66/gary/public_html/cloudy/c17_branch/source/energy.cpp
