 All Data Structures Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Pages
Public Member Functions | Private Attributes
setCollRate Class Reference

#include <atoms.h>

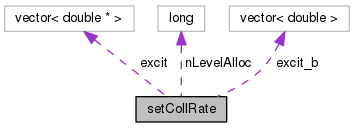

Collaboration diagram for setCollRate:
Collaboration graph

Public Member Functions

 setCollRate ()
void resize (long int nlev)
void operator() (long nlev, double TeInverse, double **col_str, const double ex[], const double g[], double **CollRate)

Private Attributes

long nLevelAlloc
vector< double * > excit
vector< double > excit_b

Detailed Description

atom_levelN - compute populations of arbitrary n-level atom

nlevnlev is the number of levels to compute
abundABUND is total abundance of species, used for nth equation
g[]G(ndim) is stat weight of levels
ex[]EX(ndim) is excitation potential of levels, either wn or deg K 0 for first one, NOT d(ENER), but energy rel to ground
chExUnitsthis is 'K' for above ex[] as Kelvin deg, is 'w' for wavenumbers
pops[]populations of each level as deduced here
depart[]departure coefficient derived here
AulEscpnet transition rate, A * esc prob, s-1
AulDestAulDest(ilo,ihi) is destruction rate, from up to low, A * dest prob, [s-1], asserts confirm that ihi,lo is zero
AulPumpAulPump(lo, hi) is pumping rate, A * occ num, (hi,lo) must be zero, [s-1]
CollRatecollision rates, evaluated here and returned for cooling by calling function, unless following flag is true. If true then calling function has already filled in these rates. CollRate[i][j] is rate from i to j
createthis is an additional creation rate, normally zero, units cm-3 s-1
destroy[]this is an additional destruction rate to continuum, normally zero, units s-1
lgCollRateDoneflag saying whether CollRate already done, or we need to do it here
cooltltotal cooling, set here but nothing done with it
coolderderivative of cooling, set here but nothing done with it
chLabelstring used to identify calling program in case of error
lgNegPoplgNegPop flag indicating what we have done positive if negative populations occurred zero if normal calculation done negative if too cold (for some atoms other routine will be called in this case)
lgZeroPoptrue if populations are zero, either due to zero abundance of very low temperature
lgDeBugoption to print matrices for debugging
atoms.PopLevels[n], atoms.DepLTELevels[n] are set lines added to ots array
grnd_excitis the total excitation rate out of ground state

Definition at line 45 of file atoms.h.

Constructor & Destructor Documentation

setCollRate::setCollRate ( )

Definition at line 51 of file atoms.h.

Member Function Documentation

void setCollRate::operator() ( long  nlev,
double  TeInverse,
double **  col_str,
const double  ex[],
const double  g[],
double **  CollRate

Definition at line 27 of file atom_leveln.cpp.

References ASSERT, t_dense::cdsqte, dense, dsexp(), excit, fprintf(), ioQQQ, t_trace::lgTrace, t_trace::lgTrLevN, phycon, resize(), t_phycon::te, and trace.

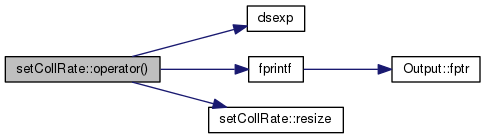

Here is the call graph for this function:

void setCollRate::resize ( long int  nlev)

Definition at line 52 of file atoms.h.

References ASSERT, excit, excit_b, and nLevelAlloc.

Referenced by operator()().

Field Documentation

vector<double*> setCollRate::excit

Definition at line 48 of file atoms.h.

Referenced by operator()(), and resize().

vector<double> setCollRate::excit_b

Definition at line 49 of file atoms.h.

Referenced by resize().

long setCollRate::nLevelAlloc

Definition at line 47 of file atoms.h.

Referenced by resize().

The documentation for this class was generated from the following files:
