t_hydro Struct Reference

#include <hydrogenic.h>

Inheritance diagram for t_hydro:
Inheritance graph
[legend]

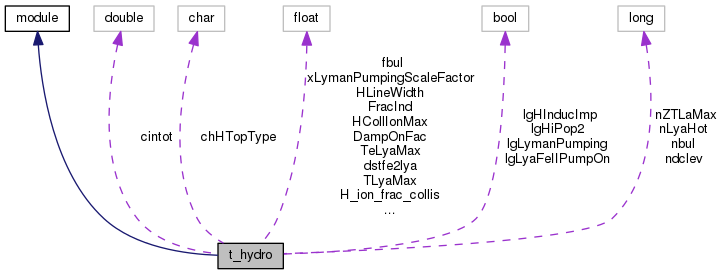

Collaboration diagram for t_hydro:
Collaboration graph
[legend]

Public Member Functions

const char * chName () const

void zero ()

void comment (t_warnings &)

- Public Member Functions inherited from module
 module ()

virtual ~module ()


Data Fields

bool lgHiPop2

realnum pop2mx

bool lgLyaFeIIPumpOn

realnum dstfe2lya

realnum HLineWidth

realnum TexcLya

long int nLyaHot

realnum TLyaMax

realnum TeLyaMax

long int nZTLaMax

char chHTopType [5]

realnum H_ion_frac_photo

realnum HCollIonMax

realnum H_ion_frac_collis

double cintot

bool lgHInducImp

realnum DampOnFac

realnum FracInd

long int ndclev

realnum fbul

long int nbul

bool lgLymanPumping

realnum xLymanPumpingScaleFactor


Detailed Description

all of these are initialized in zero

Definition at line 75 of file hydrogenic.h.

Member Function Documentation

const char* t_hydro::chName ( ) const
inlinevirtual

Implements module.

Definition at line 77 of file hydrogenic.h.

void t_hydro::comment ( t_warnings )
inlinevirtual

Implements module.

Definition at line 83 of file hydrogenic.h.

void t_hydro::zero ( void  )
virtual

Field Documentation

char t_hydro::chHTopType[5]

chHTopType is the method.used to top off the H atom

Definition at line 116 of file hydrogenic.h.

Referenced by PrtFinal(), and zero().

double t_hydro::cintot

cintot is total induced cooling over model

Definition at line 128 of file hydrogenic.h.

Referenced by IterStart(), lines(), PrtComment(), and zero().

realnum t_hydro::DampOnFac

usually 1, set to 0 with hydrogen damping off command, scales rayleigh scat

Definition at line 134 of file hydrogenic.h.

Referenced by ParseDatabaseISO(), rayleh(), and zero().

realnum t_hydro::dstfe2lya

dstfe2lya is destruction probability for Lya onto FeII, net deexcitation of Lya but not ots destruction

Definition at line 96 of file hydrogenic.h.

Referenced by dBase_solve(), lines_hydro(), PrtHydroTrace1(), and RT_line_all_escape().

realnum t_hydro::fbul

Definition at line 139 of file hydrogenic.h.

Referenced by IterStart(), and PrtComment().

realnum t_hydro::FracInd

remember induced fractions for hydrogen

Definition at line 137 of file hydrogenic.h.

Referenced by IterStart(), and PrtComment().

realnum t_hydro::H_ion_frac_collis

fraction of H ionizations due to ground collisions

Definition at line 125 of file hydrogenic.h.

Referenced by IonHydro(), and lines_hydro().

realnum t_hydro::H_ion_frac_photo

relative importance of photo ioniz from n=2 of H

Definition at line 119 of file hydrogenic.h.

Referenced by IonHydro(), and PrtZone().

realnum t_hydro::HCollIonMax

largest fraction of ground state H destruction due to collisional ionization

Definition at line 122 of file hydrogenic.h.

Referenced by IterStart(), lines_hydro(), PrtComment(), and zero().

realnum t_hydro::HLineWidth

width of Lya

Definition at line 99 of file hydrogenic.h.

Referenced by iso_zero(), PresTotCurrent(), and setXtraRatesFe2().

bool t_hydro::lgHInducImp

lgHInducImp says whether or not induced recombination is important

Definition at line 131 of file hydrogenic.h.

Referenced by ContSetIntensity(), iso_photo(), OpacityAdd1SubshellInduc(), and PrtFinal().

bool t_hydro::lgHiPop2

lgHiPop2 flag set if H n=2 population gets large relative to ground pop2mx is maximum population of n=2 relative to ground

Definition at line 87 of file hydrogenic.h.

Referenced by IonHydro(), IterStart(), PrtComment(), and zero().

bool t_hydro::lgLyaFeIIPumpOn

says whether (true) or not (false) pumping of the FeII model atom by HI Lya is included normally true, set false with the 'NO FEII' command

Definition at line 92 of file hydrogenic.h.

Referenced by ParseDont(), setXtraRatesFe2(), and zero().

bool t_hydro::lgLymanPumping

is continuum pumping of H lyman lines included? yes, but turned off with atom h-like lyman pumping off command

Definition at line 144 of file hydrogenic.h.

Referenced by ParseDatabaseISO(), RT_line_all_escape(), and zero().

long int t_hydro::nbul

Definition at line 140 of file hydrogenic.h.

Referenced by IterStart(), and PrtComment().

long int t_hydro::ndclev

Definition at line 138 of file hydrogenic.h.

Referenced by IterStart(), and PrtComment().

long int t_hydro::nLyaHot

nLyaHot is counts how ofter Lya hotter than gas

Definition at line 105 of file hydrogenic.h.

Referenced by IterStart(), PrtComment(), radius_increment(), and zero().

long int t_hydro::nZTLaMax

nZTLaMax is the zone where this happened

Definition at line 113 of file hydrogenic.h.

Referenced by PrtComment(), and radius_increment().

realnum t_hydro::pop2mx

Definition at line 88 of file hydrogenic.h.

Referenced by IonHydro(), IterStart(), PrtComment(), and zero().

realnum t_hydro::TeLyaMax

TeLyaMax is electron temp at point where Lya max

Definition at line 108 of file hydrogenic.h.

Referenced by PrtComment(), and radius_increment().

realnum t_hydro::TexcLya

TexcLya is the excitation temperature of Lya

Definition at line 102 of file hydrogenic.h.

Referenced by PrtZone(), radius_increment(), and zero().

realnum t_hydro::TLyaMax

TLyaMax is hottest

Definition at line 108 of file hydrogenic.h.

Referenced by IterStart(), PrtComment(), radius_increment(), and zero().

realnum t_hydro::xLymanPumpingScaleFactor

multiplicative scale factor for HI lyman line pump rate, takes into account possible emission lines - NB test against equal to 1.f in rt_lines_all to see if it has been set

Definition at line 149 of file hydrogenic.h.

Referenced by ParseDatabaseISO(), RT_line_pumping(), and zero().


The documentation for this struct was generated from the following files:
