t_phycon Struct Reference

#include <phycon.h>

Inheritance diagram for t_phycon:
Inheritance graph
[legend]

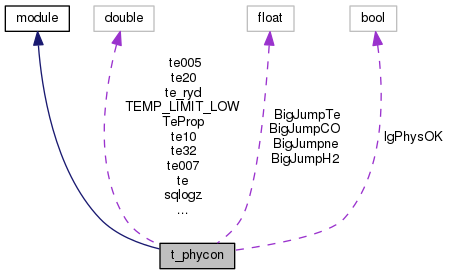

Collaboration diagram for t_phycon:
Collaboration graph
[legend]

Public Member Functions

const char * chName () const

void zero ()

void comment (t_warnings &)

 t_phycon ()

- Public Member Functions inherited from module
 module ()

virtual ~module ()


Data Fields

double te

double te_eV

double te_ryd

double te_wn

double teinv

double tesqrd

double EnergyIonization

double EnergyExcitation

double EnthalpyDensity

double EnergyBinding

double sqrte

double te32

double te90

double te70

double te40

double te30

double te20

double te10

double te07

double te05

double te04

double te03

double te02

double te01

double te007

double te005

double te004

double te003

double te002

double te001

double te0001

double te0002

double te0003

double te0004

double te0005

double te0007

double telogn [7]

double sqlogz [LIMELM]

double alogte

double alnte

double TeInit

double TeProp

double EdenInit

double EdenProp

double TEnerDen

bool lgPhysOK

realnum BigJumpTe

realnum BigJumpne

realnum BigJumpH2

realnum BigJumpCO

const double TEMP_STOP_DEFAULT

const double TEMP_LIMIT_LOW

const double TEMP_LIMIT_HIGH

const double TEMP_LIMIT_HIGH_LOG


Detailed Description

phycon.h

Definition at line 11 of file phycon.h.

Constructor & Destructor Documentation

t_phycon::t_phycon ( )
inline

define constructor to set initial values for these constant variables within class. Order matters here - from PvH: This is what Stroustrup says: "The constructors [i.e. the initializers for TEMP_LIMIT_LOW, etc.] are called in the order in which the members are declared in the class rather than the order in which the members appear in the initializer list. To avoid confusion, it is best to specify the initializers in the member declaration order."

Definition at line 133 of file phycon.h.

Member Function Documentation

const char* t_phycon::chName ( ) const
inlinevirtual

Implements module.

Definition at line 12 of file phycon.h.

void t_phycon::comment ( t_warnings &  )
inlinevirtual

Implements module.

Definition at line 18 of file phycon.h.

void t_phycon::zero ( void  )
virtual

Implements module.

Definition at line 8 of file phycon.cpp.

References BigJumpCO, BigJumpH2, BigJumpne, BigJumpTe, DEBUG_ENTRY, and lgPhysOK.

Field Documentation

double t_phycon::alnte

alnte is natural log of temperature

Definition at line 95 of file phycon.h.

Referenced by ChargTranEval(), and tfidle().

double t_phycon::alogte

alogte is base 10 log of temperature

Definition at line 92 of file phycon.h.

Referenced by CoolEvaluate(), HeCSTableInterp(), iso_dielec_recomb_rate(), lines(), lines_hydro(), diatomics::mole_H2_form(), radius_increment(), and tfidle().

realnum t_phycon::BigJumpCO

Definition at line 116 of file phycon.h.

Referenced by prt_smooth_predictions(), PrtFinal(), and zero().

realnum t_phycon::BigJumpH2

Definition at line 116 of file phycon.h.

Referenced by prt_smooth_predictions(), PrtFinal(), and zero().

realnum t_phycon::BigJumpne

Definition at line 116 of file phycon.h.

Referenced by prt_smooth_predictions(), PrtFinal(), and zero().

realnum t_phycon::BigJumpTe

largest relative changes in Te, ne, H+, H2, and CO in structure this is computed as part of prtcomment so does not exist when code not talking, set to zero in zero and still zero if prtcomment not called

Definition at line 116 of file phycon.h.

Referenced by prt_smooth_predictions(), PrtFinal(), and zero().

double t_phycon::EdenInit

initial electron density

Definition at line 99 of file phycon.h.

Referenced by ZoneStart().

double t_phycon::EdenProp

proposed electron density

Definition at line 99 of file phycon.h.

Referenced by ZoneStart().

double t_phycon::EnergyBinding

this is the total binding energy of the molecules, and is negative, the energy need to get back to free atoms

Definition at line 54 of file phycon.h.

Referenced by DynaPrtZone(), PresTotCurrent(), and SaveDo().

double t_phycon::EnergyExcitation

the total internal energy of atoms and molecules within the gas, erg/cm^3. This is the amount of energy to excite the current level populations from the ground. this includes electronic excitations of atoms and rotation excitations of molecules

Definition at line 47 of file phycon.h.

Referenced by DynaPrtZone(), PresTotCurrent(), and SaveDo().

double t_phycon::EnergyIonization

total ionization energy of gas, erg/cm^3, evaluated in PressureTotal, this is the amount of energy needed to go from pure atoms to the current ionization of the gas.

Definition at line 41 of file phycon.h.

Referenced by DynaPrtZone(), PresTotCurrent(), and SaveDo().

double t_phycon::EnthalpyDensity

the enthalpy per unit vol, updated with pressure updated

Definition at line 50 of file phycon.h.

Referenced by t_dynamics::Cool(), DynaIonize(), DynaSave(), t_dynamics::Heat(), PresTotCurrent(), and SaveDo().

bool t_phycon::lgPhysOK

lag set if a physical condition has been disabled

Definition at line 111 of file phycon.h.

Referenced by newreact(), ParseDatabaseISO(), ParseDont(), ParseEden(), ParseGrain(), ParseSet(), PrtComment(), and zero().

double t_phycon::sqlogz[LIMELM]

this is used to rescale telogn array for other charge, ith element is log(i+1)^(i+1)

Definition at line 86 of file phycon.h.

Referenced by HydroRecCool(), iso_rad_rec_cooling_extra(), and tfidle().

double t_phycon::sqrte

these are simple powers of the electron temperature, are evaluated in tfidle, and can be used to avoid exponentials

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), ColStrGBar(), CoolEvaluate(), CS_l_mixing_PS64(), CS_l_mixing_PS64_expI(), dBase_solve(), dBaseUpdateCollCoeffs(), EdenChange(), GetHelikeCollisionStrength(), GetHlikeCollisionStrength(), GrainDrift(), GrainTemperature(), hmirat(), Hydcs123(), hydro_vs_deexcit(), HyperfineCreate(), iso_collide(), iso_get_collision_strength(), iso_rad_rec_cooling_discrete(), lines(), mole_h2_grain_form(), OpacityAddTotal(), RT_diffuse(), RT_iso_integrate_RRC(), RT_stark(), SanityCheckBegin(), Save1LineData(), and tfidle().

double t_phycon::te

te, electron temperature K

Definition at line 21 of file phycon.h.

Referenced by AbundChange(), AGN_He1_CS(), AGN_Hemis(), atmdat_3body(), atom_level2(), Badnell_DR_rate_eval(), Badnell_RR_rate_eval(), C6cs123(), Ca20cs123(), cdTemp_last(), ChargTranEval(), ChargTranPun(), ColStrGBar(), ContNegative(), ContSetIntensity(), ConvBase(), ConvFail(), ConvInitSolution(), ConvIterCheck(), ConvPresTempEdenIoniz(), ConvTempEdenIoniz(), CoolEvaluate(), CoolHeatError(), CoolHyperfine(), CoolSave(), CS_l_mixing_PS64(), CS_l_mixing_PS64_expI(), CS_l_mixing_S62(), dBase_solve(), dBaseUpdateCollCoeffs(), t_dynamics::dCooldT(), dmpary(), DumpLine(), DynaIonize(), DynaIterEnd(), eeBremsSpectrum(), Fe26cs123(), find_solution(), FindTempChangeFactor(), fndstr(), gbar0(), gbar1(), GetAveVelocity(), GetDopplerWidth(), GetHelikeCollisionStrength(), GetHlikeCollisionStrength(), GrainCharge(), GrainChargeTemp(), GrainCollHeating(), GrainDrift(), GrainDrive(), GrainElecRecomb1(), GrainScreen(), GrainTemperature(), H21_cm_pops(), diatomics::H2_CollidRateEvalAll(), diatomics::H2_Cooling(), diatomics::H2_LevelPops(), diatomics::H2_PunchDo(), HCSAR_interp(), HCTIon(), HCTRecom(), He2cs123(), HeatSum(), Hydcs123(), hydro_vs_deexcit(), HydroLevel(), HydroRecCool(), HyperfineCreate(), HyperfineCS(), ion_collis(), ion_photo(), ion_recom_calculate(), ion_recomb(), ion_recombAGN(), iso_collide(), iso_collisional_ionization(), iso_continuum_lower(), iso_cool(), iso_get_collision_strength(), iso_level(), iso_rad_rec_cooling_approx(), iso_rad_rec_cooling_discrete(), iso_rad_rec_cooling_extra(), iso_radiative_recomb(), iso_radiative_recomb_effective(), iso_solve(), iter_end_check(), IterStart(), lgConvTemp(), lgCoolNetConverge(), lines(), lines_continuum(), lines_helium(), lines_hydro(), lines_molecules(), map_do(), matchGeneric(), t_mean::MeanInc(), mole_h2_grain_form(), diatomics::mole_H2_LTE(), mole_h_rate_diagnostics(), mole_h_reactions(), mole_partition_function(), mole_solve(), Ne10cs123(), NewChargeData(), OpacityAddTotal(), setCollRate::operator()(), Atom_LevelN::operator()(), PressureChange(), PresTotCurrent(), PrintRates(), PrtComment(), PrtHydroTrace1a(), PrtZone(), qheat_init(), radius_increment(), radius_next(), RT_diffuse(), RT_iso_integrate_RRC(), RT_recom_effic(), SanityCheckBegin(), Save_Line_RT(), SaveDo(), SaveHeat(), SaveLineData(), TempChange(), tfidle(), UpdatePot(), and ZoneStart().

double t_phycon::te0001

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te0002

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te0003

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te0004

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te0005

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te0007

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te001

Definition at line 58 of file phycon.h.

Referenced by hmirat(), and tfidle().

double t_phycon::te002

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te003

Definition at line 58 of file phycon.h.

Referenced by ColStrGBar(), hmirat(), and tfidle().

double t_phycon::te004

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te005

Definition at line 58 of file phycon.h.

Referenced by lines(), and tfidle().

double t_phycon::te007

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te01

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), hmirat(), RT_stark(), and tfidle().

double t_phycon::te02

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te03

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), hmirat(), lines(), lines_hydro(), RT_stark(), SaveDo(), and tfidle().

double t_phycon::te04

Definition at line 58 of file phycon.h.

Referenced by lines(), and tfidle().

double t_phycon::te05

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), and tfidle().

double t_phycon::te07

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te10

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), ColStrGBar(), hmirat(), lines(), lines_hydro(), RT_stark(), SaveDo(), and tfidle().

double t_phycon::te20

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), hmirat(), and tfidle().

double t_phycon::te30

Definition at line 58 of file phycon.h.

Referenced by ChargTranEval(), lines(), and tfidle().

double t_phycon::te32

Definition at line 58 of file phycon.h.

Referenced by Badnell_DR_rate_eval(), diatomics::H2_LevelPops(), iso_collide(), iso_satellite_update(), mole_h_reactions(), and tfidle().

double t_phycon::te40

Definition at line 58 of file phycon.h.

Referenced by lines(), and tfidle().

double t_phycon::te70

Definition at line 58 of file phycon.h.

Referenced by hmirat(), lines(), lines_hydro(), SaveDo(), and tfidle().

double t_phycon::te90

Definition at line 58 of file phycon.h.

Referenced by tfidle().

double t_phycon::te_eV

the current electron temperature in eV

Definition at line 24 of file phycon.h.

Referenced by ChargTranEval(), ion_recom_calculate(), and tfidle().

double t_phycon::te_ryd

the current electron temperature in Ryd

Definition at line 27 of file phycon.h.

Referenced by GammaBn(), ion_trim(), iso_collide(), iso_cool(), iso_ionize_recombine(), iso_rad_rec_cooling_discrete(), iso_satellite_update(), RT_iso_integrate_RRC(), and tfidle().

double t_phycon::te_wn

the current electron temperature in wavenumbers

Definition at line 30 of file phycon.h.

Referenced by diatomics::H2_CollidRateEvalAll(), diatomics::H2_Cooling(), diatomics::H2_LevelPops(), Atom_LevelN::operator()(), and tfidle().

double t_phycon::TeInit

initial temperature

Definition at line 99 of file phycon.h.

Referenced by SaveDo(), and ZoneStart().

double t_phycon::teinv

1/TE

Definition at line 33 of file phycon.h.

Referenced by CoolEvaluate(), iso_cool(), and tfidle().

double t_phycon::telogn[7]

1 is log Te, 2 is (log T)^2, etc

Definition at line 86 of file phycon.h.

Referenced by ContSetIntensity(), HydroRecCool(), iso_rad_rec_cooling_extra(), SaveDo(), and tfidle().

const double t_phycon::TEMP_LIMIT_HIGH

highest temperature to ever allow

Definition at line 123 of file phycon.h.

Referenced by ConvInitSolution(), dgaunt_check(), HyperfineCreate(), InitDefaultsPreparse(), map_do(), ParseConstant(), ParseCoronal(), ParseSet(), ParseStop(), and TempChange().

const double t_phycon::TEMP_LIMIT_HIGH_LOG

Definition at line 123 of file phycon.h.

Referenced by HydroRecCool().

const double t_phycon::TEMP_LIMIT_LOW

lowest temperature to ever allow

Definition at line 121 of file phycon.h.

Referenced by ConvInitSolution(), ConvTempEdenIoniz(), dgaunt_check(), HyperfineCreate(), map_do(), ParseConstant(), ParseCoronal(), ParseSet(), ParseStop(), and TempChange().

const double t_phycon::TEMP_STOP_DEFAULT

The default value of the stopping temperature

Definition at line 119 of file phycon.h.

Referenced by AbundancesSet(), InitDefaultsPreparse(), ParseCommands(), and PrtComment().

double t_phycon::TEnerDen

energy density temperature

Definition at line 108 of file phycon.h.

Referenced by ContSetIntensity(), ConvInitSolution(), PrtComment(), and PrtHeader().

double t_phycon::TeProp

proposed temperature

Definition at line 99 of file phycon.h.

Referenced by SaveDo(), and ZoneStart().

double t_phycon::tesqrd

T^2

Definition at line 36 of file phycon.h.

Referenced by ChargTranEval(), and tfidle().

The documentation for this struct was generated from the following files:
