a. (5 points)

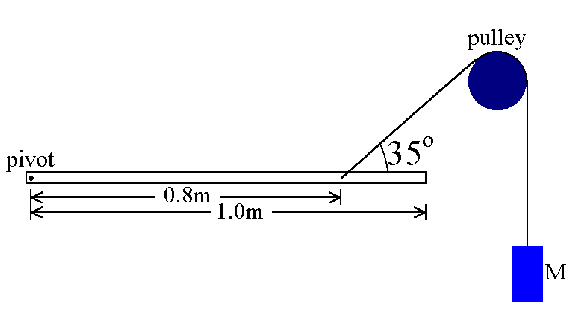

In the diagram draw all forces acting on the rod.



















b. (10 points)

What should be the mass M for equilibrium to occur?





















c. (10 points)

What are the horizontal and vertical components of the force exerted by the pivot on the bar?
