Discussion of the section on circuits

Here are some things to do to finish this section.

Discuss these questions with the people in your group. Please send us a discussion of two of these questions. Don't forget to tell us the group name.
  1. Electric circuits #3 What's wrong here? in the manual.
  2. If we wanted an indicator light to tell whether the toaster is on, we could use a parallel circuit or a series circuit two ways to make a toaster

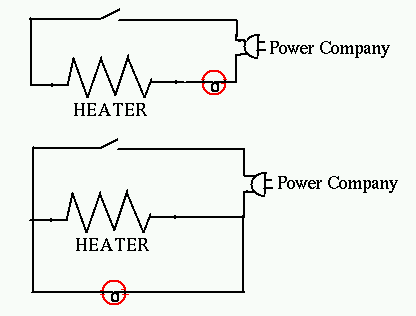

    The heater in a toaster is just a resistor. It's actually a rather low resistance, so that a big current flows and lots of power is turned into heat. Look inside your toaster, and you will see these wires -- they look quite a bit like the diagram!


    The red circle indicates where the indicator light is to be placed in each circuit. What are the advantages of each design?


If there is something that you don't understand about electrical circuits, Ask us!

This is the end of this section. (Check this box check box )   The next section is a summary of the second module
