Here are some things to do to finish this section.
What question did you think of that could be studied, or observation could you make
that is interesting or unexpected?
Send it to the
Question
board!
Discuss these questions with the people in your group.
Please
send us a discussion of these two questions. Don't forget to tell us the
group name.
Part of the sign
on the back of a
computer monitor. It
says it can be used in a 100-to-120 V system,
and will draw 1.8A, or in a 220-to-240 V system,
and then it will draw 1.0 A.
Electrical appliances usually have a little placard on the back or bottom giving
their electrical ratings, specifying voltage (V) and either current (A) or wattage (W)
(or possibly both). (It also tells the frequency (Hz or cycles); this is of less interest
to us at the moment).
Please make a table of the information for various
devices.
(Here is a blank table that you can print out) Judging from your table, what are the implications of a device with a very large
current rating?
Houses have fuses or circuit breakers that act like switches to disconnect any
device that is drawing a current that is too large -- for example, more than 15 Amperes.
You probably did not find any device with a current rating that is this high -- so
why do we need the circuit breaker?
This label on a heater gives
both current and wattage information.

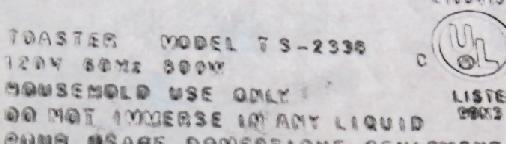

The label on the bottom of a toaster
In your kit you will find a small piece of thermal sensing sheet. It is a kind of
thermometer, that is probably black at room temperature but will turn green or blue when you
touch it (or if it is rather warm in the room).
When you are through playing with it, let it cool back to a uniform color. Meanwhile,
cut a piece of aluminum foil that is 1/2 cm wide and 10 cm long. Straight
is OK, but it is more fun if it is somewhat curvey.
We are going to use this as a wire. Place the thermal sensing sheet on
top of the aluminum foil wire, so that the two ends of the wire stick
out. Attach wires with clip ends to the battery, and then to the ends
of the aluminum foil, to make the circuit diagrammed at left.
Explain what happens.
Notice that what we have made here is an example of the circuit
(sometimes called "a short circuit"), which you
were warned not to make. What's wrong with a short circuit?
If there is something that you don't understand about electrical current,
Ask us!
This is the end of this unit.
(Check this box
)
The next section is about current direction
