Assemble, one at a time, each of the following closed circuits.
Compare and contrast the performance of each one, as evidenced by the light bulbs' behaviors.

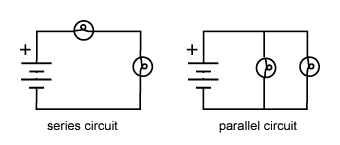

The following circuits are similar in some ways to the basic series and parallel circuits just discussed. Compared to how brightly the light bulbs glowed in those basic circuits, predict how they will behave in the following. Will they be brighter, dimmer, or the same?
Circuit A will be | ![]() |
Circuit B will be | ![]() |
Circuit C will be | ![]() |
Circuit D will be |
![]() |
