Discussion of the section on the magnetic field

Here are some things to do to finish this section.

Discuss these questions with the people in your group. Please send us a discussion of two of these questions. Don't forget to tell us the group name.
  1. Make a map of the field for one of the round magnets from the kit, lying on one circular face. Explain what you see. various ways to package two magnets

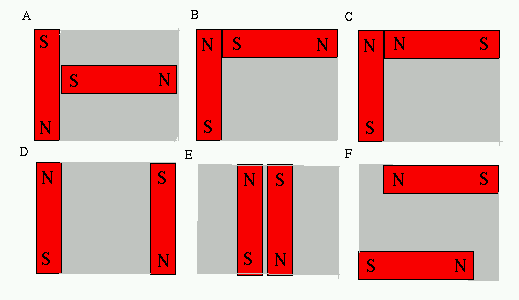

  2. There are many ways to put two bar magnets into a package that is 4 cm x 5 cm. Suppose someone gave you one of these packages -- how could you use a magnetic field map to find out which one it was? Make one of the packages to test. Cut pieces of heavy corrugated cardboard to make the gray parts, tape the parts together, and then wrap prettily with opaque paper.

    For dessert, use the compass and the magnetic field viewing card to see if there are magnets in the motor, the buzzer, or the light-emitting diode.

  3. Have one member of the group hide several paper clips under a magazine. Then have other members of the group find them. How can you tell which way the paper clips are pointing? (Note: this will not work on a steel desk top!).

If there is something that you don't understand about the magnetic field, Ask us!

This is the end of this section. (Check this box check box )   The next section is about magnets
