Frame Stack Test Assembly:


Related Pages:
  1. BeamMonitor
  2. Ion Chamber
  3. IonChamber-Assembly
  4. IonChamber-Cabling
  5. IonChamber-CAD
  6. IonChamber-Installation
  7. IonChamber-LessonsLearned
  8. IonChamber-Simulation
  9. IonChamber-TestAssembly
  10. IonChamber-VoltageScan


A test assembly of the frame stack was performed at the University of Manitoba November 15th using unstrung frames.

It was learned during the test assembly that the compression rods will need to be clean and bur free to seat square on the mount flange as is required.

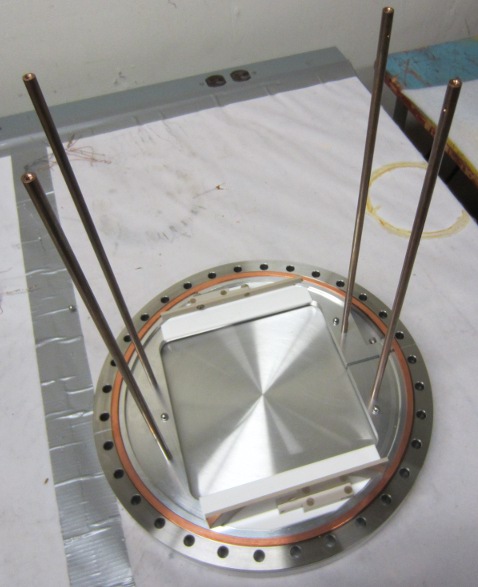

n3He split plate with HV shielding and phosphor bronze compression rods in place on end mount flange.

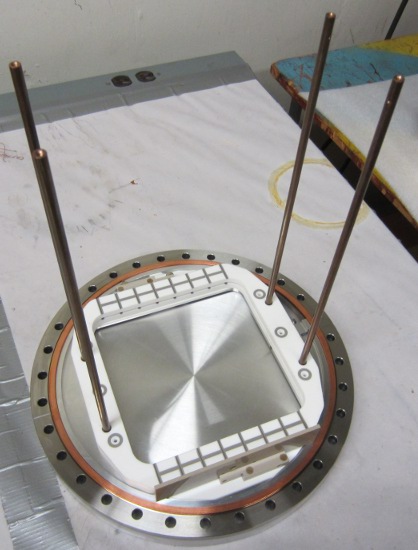

First 2 frames on the frame stack, currently showing signal frame on top.

Note: The face with the wires should face towards the flange. The wire frames here were placed upside down.

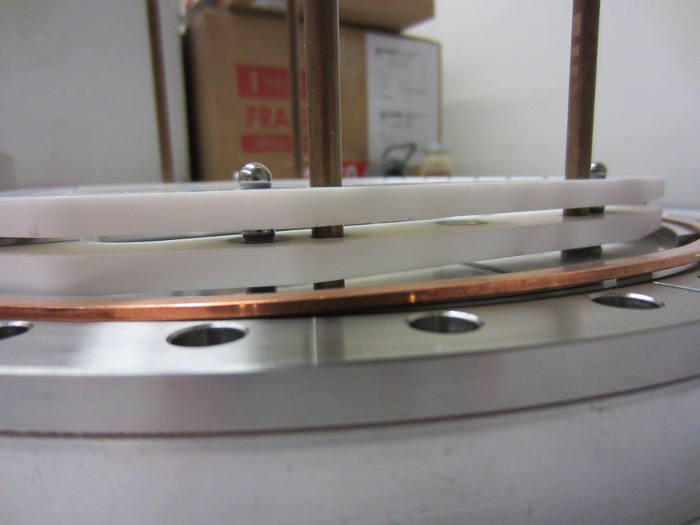

Close up of three point mount. Stainless steel balls will be replaced with alumina ceramic in final assembly.

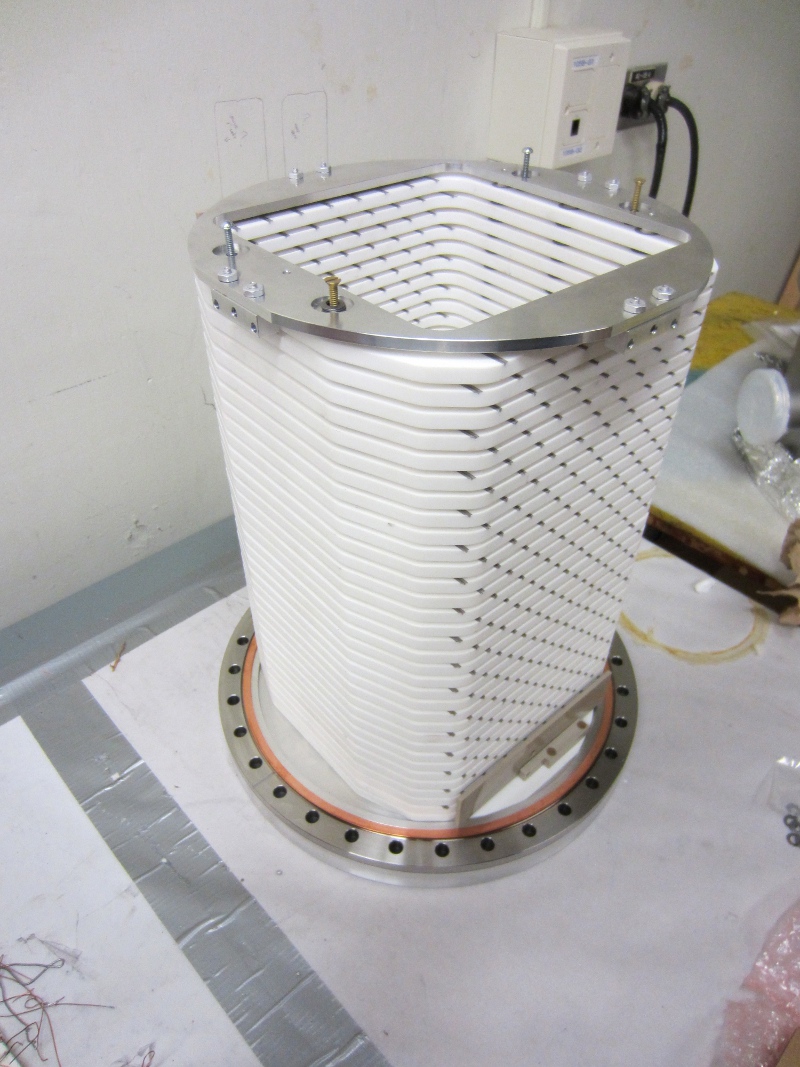

Full Frame Stack with screws loosely in place on retaining end plate.
