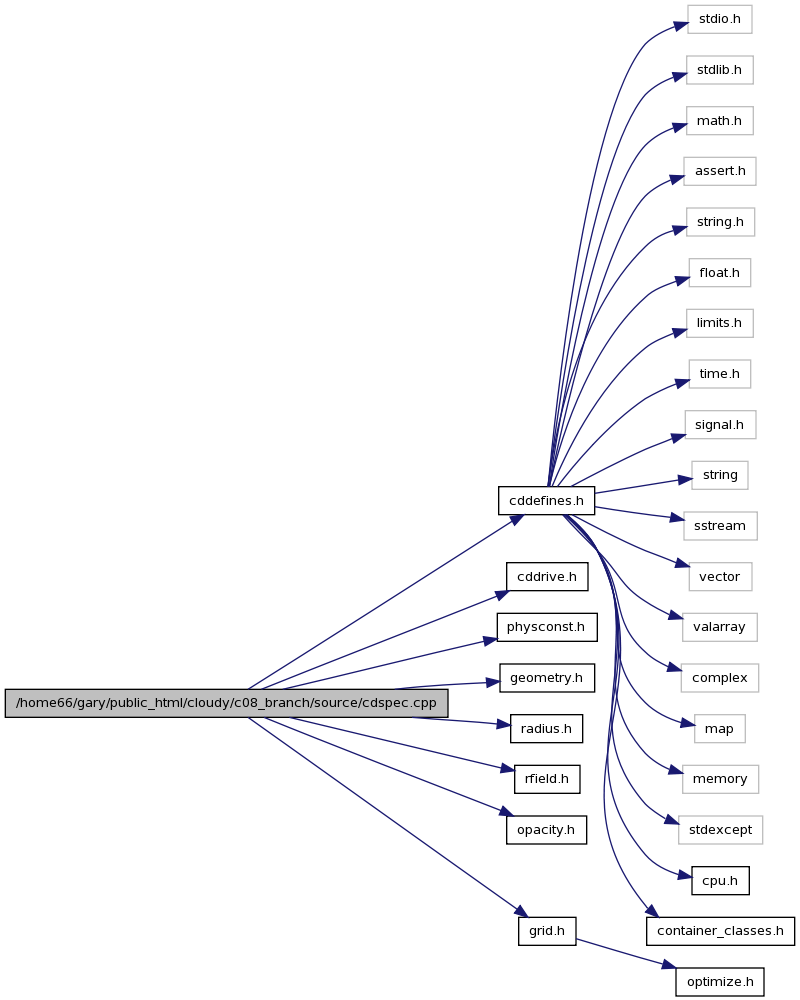

#include "cddefines.h"#include "cddrive.h"#include "physconst.h"#include "geometry.h"#include "radius.h"#include "rfield.h"#include "opacity.h"#include "grid.h"Include dependency graph for cdspec.cpp:
Go to the source code of this file.
Functions | |
| STATIC double | Spec_cont (realnum cont[]) |
| void | cdSPEC (int nOption, double EnergyLow[], long int nEnergy, double ReturnedSpectrum[]) |
| void | cdSPEC2 (int nOption, long int nEnergy, realnum ReturnedSpectrum[]) |
Variables | |
| static long int | iplo |
| static long int | iphi |
| static double | Elo |
| static double | Ehi |
| void cdSPEC | ( | int | Option, | |
| double | EnergyLow[], | |||
| long int | nEnergy, | |||
| double | ReturnedSpectrum[] | |||
| ) |
this routine returns the spectrum needed for Keith Arnaud's XSPEC X-Ray analysis code. It should be called after cdDrive has successfully computed a model. The calling routine must ensure that the vectors have enough space to store the resulting spectrum, given the bounds and energy resolution
| Option | option - the type of spectrum to be returned 1 the incident continuum 4\pi nuJ_nu, , erg cm-2 s-1 2 the attenuated incident continuum, same units 3 the reflected continuum, same units 4 diffuse continuous emission outward direction 5 diffuse continuous emission, reflected 6 collisional+recombination lines, outward 7 collisional+recombination lines, reflected all lines and continuum emitted by the cloud assume full coverage of continuum source | |
| EnergyLow[] | * the energy of the lower edge of each cell (in Ryd to be consistent with all the rest of Cloudy | |
| nEnergy | the number of cells + 1 | |
| ReturnedSpectrum[] | the returned spectrum, same size is two energy spectra (see option), returns nEnergy -1 pts |
Definition at line 31 of file cdspec.cpp.
References t_rfield::anu, cdEXIT, t_rfield::ConEmitOut, t_rfield::ConEmitReflec, t_rfield::ConRefIncid, t_geometry::covgeo, DEBUG_ENTRY, Ehi, Elo, t_rfield::flux, t_rfield::flux_total_incident, geometry, ioQQQ, iphi, iplo, t_geometry::lgSphere, MALLOC, t_rfield::nflux, t_rfield::nupper, t_rfield::outlin, t_radius::r1r0sq, radius, t_rfield::reflin, rfield, Spec_cont(), and t_rfield::widflx.
Referenced by PunchNewContinuum().
Here is the call graph for this function:
| void cdSPEC2 | ( | int | Option, | |
| long int | nEnergy, | |||
| realnum | ReturnedSpectrum[] | |||
| ) |
| Option | the type of spectrum to be returned 1 the incident continuum 4\pi nuJ_nu, , erg cm-2 s-1 2 the attenuated incident continuum, same units 3 the reflected continuum, same units 4 diffuse continuous emission outward direction 5 diffuse continuous emission, reflected 6 collisional+recombination lines, outward 7 collisional+recombination lines, reflected all lines and continuum emitted by the cloud assume full coverage of continuum source | |
| nEnergy | the number of cells + 1 | |
| ReturnedSpectrum[] | the returned spectrum, same size is two energy spectra (see option), returns nEnergy -1 pts |
Definition at line 313 of file cdspec.cpp.
References ASSERT, t_rfield::ConEmitOut, t_rfield::ConEmitReflec, t_rfield::ConRefIncid, t_geometry::covgeo, DEBUG_ENTRY, t_rfield::flux, t_rfield::flux_total_incident, geometry, MALLOC, t_rfield::nflux, NUM_OUTPUT_TYPES, t_rfield::nupper, t_rfield::outlin, t_radius::r1r0sq, radius, and rfield.
Referenced by punchFITS_GenericData().
| STATIC double Spec_cont | ( | realnum | cont[] | ) |
Definition at line 180 of file cdspec.cpp.
References t_rfield::anu, t_rfield::anu2, t_rfield::AnuOrg, ASSERT, DEBUG_ENTRY, Ehi, Elo, EN1RYD, iphi, iplo, t_rfield::nflux, rfield, and t_rfield::widflx.
Referenced by cdSPEC().
double Ehi [static] |
Definition at line 26 of file cdspec.cpp.
Referenced by cdSPEC(), fiddle(), qheat_init(), Spec_cont(), and UpdatePot1().
double Elo [static] |
Definition at line 26 of file cdspec.cpp.
Referenced by cdSPEC(), fiddle(), Spec_cont(), and UpdatePot1().
long int iphi [static] |
Definition at line 23 of file cdspec.cpp.
Referenced by cdSPEC(), GammaPrtShells(), ion_photo(), IonIron(), and Spec_cont().
long int iplo [static] |
1.4.7
