#include <grainvar.h>

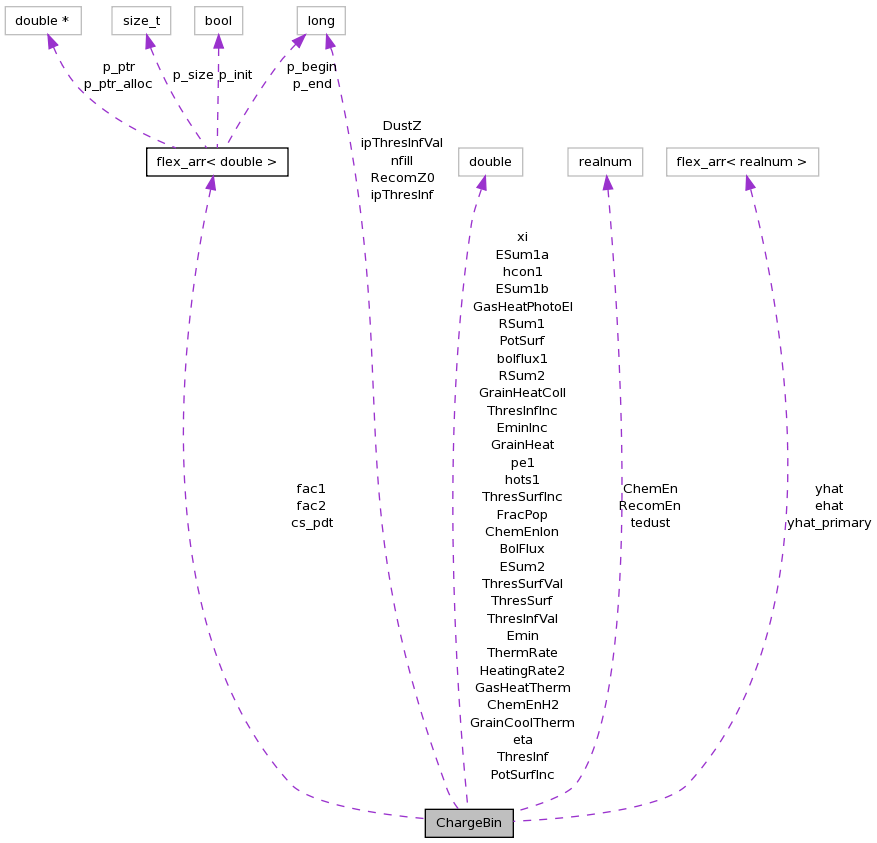

Collaboration diagram for ChargeBin:
Data Fields | |
| long | DustZ |
| long | ipThresInf |
| long | ipThresInfVal |
| long | nfill |
| double | FracPop |
| double | Emin |
| double | EminInc |
| double | PotSurf |
| double | PotSurfInc |
| double | ThresInf |
| double | ThresInfInc |
| double | ThresInfVal |
| double | ThresSurf |
| double | ThresSurfInc |
| double | ThresSurfVal |
| double | ThermRate |
| flex_arr< realnum > | yhat |
| flex_arr< realnum > | yhat_primary |
| flex_arr< realnum > | ehat |
| flex_arr< double > | cs_pdt |
| long | RecomZ0 [LIMELM][LIMELM+1] |
| double | eta [LIMELM+2] |
| double | xi [LIMELM+2] |
| double | RSum1 |
| double | RSum2 |
| double | ESum1a |
| double | ESum1b |
| double | ESum2 |
| realnum | tedust |
| double | hcon1 |
| double | hots1 |
| double | bolflux1 |
| double | pe1 |
| flex_arr< double > | fac1 |
| flex_arr< double > | fac2 |
| realnum | RecomEn [LIMELM][LIMELM+1] |
| realnum | ChemEn [LIMELM][LIMELM+1] |
| double | BolFlux |
| double | GrainHeat |
| double | GrainHeatColl |
| double | GasHeatPhotoEl |
| double | GasHeatTherm |
| double | GrainCoolTherm |
| double | ChemEnIon |
| double | ChemEnH2 |
| double | HeatingRate2 |
this is the data structure for all grain data that depends on the charge state (i.e. all data that used to have an [NCHS] dependance in days of old),
each data item will be referenced as: gv.bin[nd]->chrg[nz]->data_item
this structure is allocated for each charge state at run time.
Data items that do not depend on charge state, or are summed over all charge states, should go in gv or gv.bin[nd] below !!
NB NB !! every field that is in ChargeBin should be initialized or invalidated in UpdatePot1/2 !! NB NB
Definition at line 158 of file grainvar.h.
| double ChargeBin::BolFlux |
heating/cooling balance, all entries are valid for current zone, actual depl, and are in erg/cm^3/s total photon flux absorbed, used for energy conservation test
Definition at line 206 of file grainvar.h.
| double ChargeBin::bolflux1 |
reminder of heating integral over all fields, Ryd/H/s at default depl
Definition at line 197 of file grainvar.h.
Referenced by NewChargeData().
net contribution of ion recomb to grain heating, in Ryd
Definition at line 203 of file grainvar.h.
Referenced by UpdateRecomZ0().
| double ChargeBin::ChemEnH2 |
net amount of energy donated by H2 formation on grain surface
Definition at line 206 of file grainvar.h.
| double ChargeBin::ChemEnIon |
net amount of energy donated by recombining ions
Definition at line 206 of file grainvar.h.
| flex_arr<double> ChargeBin::cs_pdt |
photo-detachment cross section, for default depl
Definition at line 180 of file grainvar.h.
Referenced by GrainElecEmis1(), and PE_init().
| long ChargeBin::DustZ |
grain charging grain charge, in e
Definition at line 161 of file grainvar.h.
Referenced by GrainCharge(), GrainDrive(), GrainElecEmis1(), GrainElecRecomb1(), GrainIonColl(), GrainScreen(), PE_init(), qheat_init(), UpdatePot(), UpdatePot1(), UpdateRecomZ0(), and Yfunc().
average energy per photo-electron (incl. Auger and secondary electrons), Ryd
Definition at line 179 of file grainvar.h.
Referenced by PE_init(), qheat_init(), and UpdatePot1().
| double ChargeBin::Emin |
negative threshold to be overcome by outgoing electron, in Ryd
Definition at line 165 of file grainvar.h.
Referenced by UpdatePot1().
| double ChargeBin::EminInc |
same as Emin, but for incoming electrons (using Zg instead of Zg+1), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by UpdatePot1().
| double ChargeBin::ESum1a |
PE rate from band and inner shells (includes Auger and secondary electrons)
Definition at line 189 of file grainvar.h.
Referenced by GrainElecEmis1(), and NewChargeData().
| double ChargeBin::ESum1b |
PE rate from conduction band
Definition at line 190 of file grainvar.h.
Referenced by GrainElecEmis1(), and NewChargeData().
| double ChargeBin::ESum2 |
electron loss due to recombination with colliding ions
Definition at line 191 of file grainvar.h.
Referenced by GrainElecEmis1(), and NewChargeData().
| double ChargeBin::eta[LIMELM+2] |
cache for GrainScreen results
Definition at line 184 of file grainvar.h.
Referenced by GrainScreen(), NewChargeData(), and UpdatePot1().
| flex_arr<double> ChargeBin::fac1 |
auxiliary data for GrainTemperature
Definition at line 199 of file grainvar.h.
Referenced by qheat_init().
| flex_arr<double> ChargeBin::fac2 |
auxiliary data for GrainTemperature
Definition at line 200 of file grainvar.h.
| double ChargeBin::FracPop |
fractional population for lower and upper charge state
Definition at line 165 of file grainvar.h.
Referenced by GrainCharge(), GrainChrgTransferRates(), GrainDrive(), qheat(), and qheat_init().
| double ChargeBin::GasHeatPhotoEl |
photoelectric heating of the gas, added in GrGH 0
Definition at line 206 of file grainvar.h.
| double ChargeBin::GasHeatTherm |
heating due to thermionic emission
Definition at line 206 of file grainvar.h.
| double ChargeBin::GrainCoolTherm |
grain cooling due to thermionic emissions, summed over charge states
Definition at line 206 of file grainvar.h.
| double ChargeBin::GrainHeat |
total heating of current grain type
Definition at line 206 of file grainvar.h.
Referenced by NewChargeData().
| double ChargeBin::GrainHeatColl |
collisional heating of current grain type
Definition at line 206 of file grainvar.h.
| double ChargeBin::hcon1 |
reminder of heating integral over incident flux, Ryd/H/s at default depl
Definition at line 195 of file grainvar.h.
Referenced by GrainTemperature().
| double ChargeBin::HeatingRate2 |
quantum heating quantum heating by electron recomb - thermionic cooling, erg/H/s, default depl
Definition at line 216 of file grainvar.h.
Referenced by NewChargeData(), qheat(), and qheat_init().
| double ChargeBin::hots1 |
reminder of heating integral over diffuse fields, Ryd/H/s at default depl
Definition at line 196 of file grainvar.h.
Referenced by NewChargeData().
pointer to ThresInf in anu array
Definition at line 161 of file grainvar.h.
Referenced by GrainElecEmis1(), GrainUpdateRadius2(), PE_init(), and qheat_init().
pointer to ThresInfVal in anu array
Definition at line 161 of file grainvar.h.
Referenced by GrainElecEmis1(), PE_init(), qheat_init(), and UpdatePot1().
| long ChargeBin::nfill |
remember how far the flex_arr's were filled in
Definition at line 161 of file grainvar.h.
Referenced by GrainDrive(), UpdatePot(), and UpdatePot1().
| double ChargeBin::pe1 |
reminder of photoelectric heating integral, Ryd/H/s at default depl
Definition at line 198 of file grainvar.h.
Referenced by NewChargeData().
| double ChargeBin::PotSurf |
potential difference between grain surface and infinity (phi_g), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by PE_init(), qheat_init(), and UpdatePot1().
| double ChargeBin::PotSurfInc |
same as PotSurf, but for incoming electrons (using Zg instead of Zg+1), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by qheat_init(), and UpdatePot1().
chemical energy released into grain upon impact, in Ryd
Definition at line 202 of file grainvar.h.
Referenced by UpdateRecomZ0().
| long ChargeBin::RecomZ0[LIMELM][LIMELM+1] |
ionization stage the atom/ion recombines to upon impact
Definition at line 182 of file grainvar.h.
Referenced by GrainChrgTransferRates(), GrainElecRecomb1(), and UpdateRecomZ0().
| double ChargeBin::RSum1 |
electron gain from colliding electrons
Definition at line 187 of file grainvar.h.
Referenced by GrainElecRecomb1(), and NewChargeData().
| double ChargeBin::RSum2 |
electron gain from colliding ions
Definition at line 188 of file grainvar.h.
Referenced by GrainElecRecomb1(), and NewChargeData().
grain heating equilibrium temperature for this zone
Definition at line 194 of file grainvar.h.
Referenced by GrainDrive().
| double ChargeBin::ThermRate |
thermionic rate, in e/cm^2/s
Definition at line 165 of file grainvar.h.
Referenced by GrainElecEmis1(), NewChargeData(), and UpdatePot2().
| double ChargeBin::ThresInf |
threshold for removing electron from grain well to infinity (phi), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by GrainCharge(), UpdatePot1(), and UpdatePot2().
| double ChargeBin::ThresInfInc |
same as ThresInf, but for incoming electrons (using Zg instead of Zg+1), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by qheat_init(), and UpdatePot1().
| double ChargeBin::ThresInfVal |
threshold for removing electron from valence band to infinity (phi^v), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by GrainCharge(), and UpdatePot1().
| double ChargeBin::ThresSurf |
threshold for removing electron from grain well to surface (phi_s), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by PE_init(), qheat_init(), UpdatePot1(), and UpdateRecomZ0().
| double ChargeBin::ThresSurfInc |
same as ThresSurf, but for incoming electrons (using Zg instead of Zg+1), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by UpdatePot1(), and UpdateRecomZ0().
| double ChargeBin::ThresSurfVal |
threshold for removing electron from valence band to surface (phi_s^v), in Ryd
Definition at line 165 of file grainvar.h.
Referenced by PE_init(), qheat_init(), UpdatePot1(), and y0b01().
| double ChargeBin::xi[LIMELM+2] |
cache for GrainScreen results
Definition at line 184 of file grainvar.h.
Referenced by GrainScreen(), NewChargeData(), and UpdatePot1().
electron yield per absorbed photon (incl. Auger and secondary electrons)
Definition at line 177 of file grainvar.h.
Referenced by GrainElecEmis1(), PE_init(), qheat_init(), and UpdatePot1().
electron yield per absorbed photon (only primary electrons)
Definition at line 178 of file grainvar.h.
Referenced by qheat_init(), and UpdatePot1().
