hydro_bauman.h File Reference

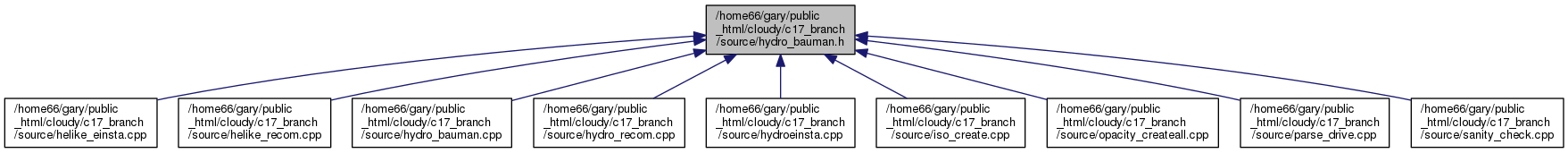

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
double	H_photo_cs (double photon_energy, long int n, long int l, long int iz)
double	H_Einstein_A (long int n, long int l, long int np, long int lp, long int iz)

Detailed Description

these are the hydrogenic routines written by Robert Bauman For references, see h_bauman.c

Author

Robert Bauman

Definition in file hydro_bauman.h.

Function Documentation

double H_Einstein_A	(	long int	n,
		long int	l,
		long int	np,
		long int	lp,
		long int	iz
	)

Calculates the Einstein A's for hydrogen
for the transition n,l --> n',l'
units of sec^(-1)

In the following, we have n > n'

Parameters

n	principal quantum number, 1 for ground, upper level
l	angular momentum, 0 for s
np	principal quantum number, 1 for ground, lower level
lp	angular momentum, 0 for s
iz	Nuclear charge, 1 for H+, 2 for He++, etc

Definition at line 2356 of file hydro_bauman.cpp.

References ASSERT, t_dense::AtomicWeight, DEBUG_ENTRY, dense, H_Einstein_A_lin(), H_Einstein_A_log10(), and LIMELM.

Referenced by DrvHyas(), FillExtraLymanLine(), he_1trans(), hydro_transprob(), hydro_transprob_collapsed_to_resolved(), and SanityCheckBegin().

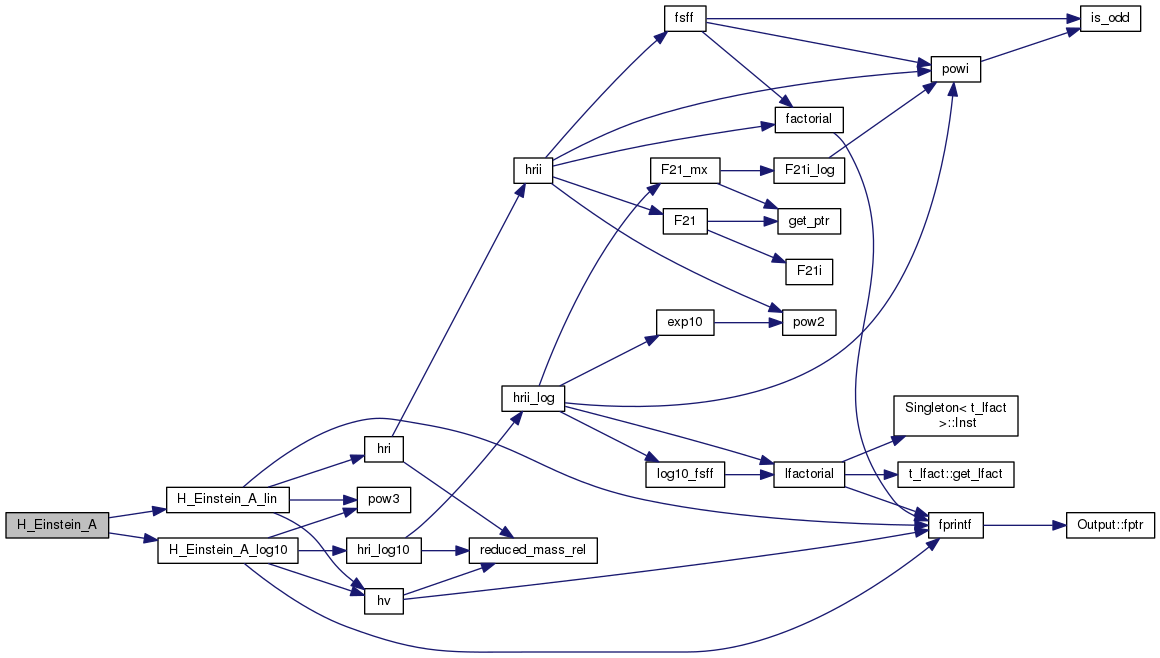

Here is the call graph for this function:

double H_photo_cs	(	double	photon_energy,
		long int	n,
		long int	l,
		long int	iz
	)

returns hydrogenic photoionization cross section in cm-2

Parameters

photon_energy	photon energy relative to threshold
n	principal quantum number, 1 for ground
l	angular momentum, 0 for s
iz	charge, 1 for H+, 2 for He++, etc

Definition at line 572 of file hydro_bauman.cpp.

References DEBUG_ENTRY, H_photo_cs_lin(), and H_photo_cs_log10().

Referenced by cross_section(), H_cross_section(), Opacity_iso_photo_cs(), and SanityCheckBegin().

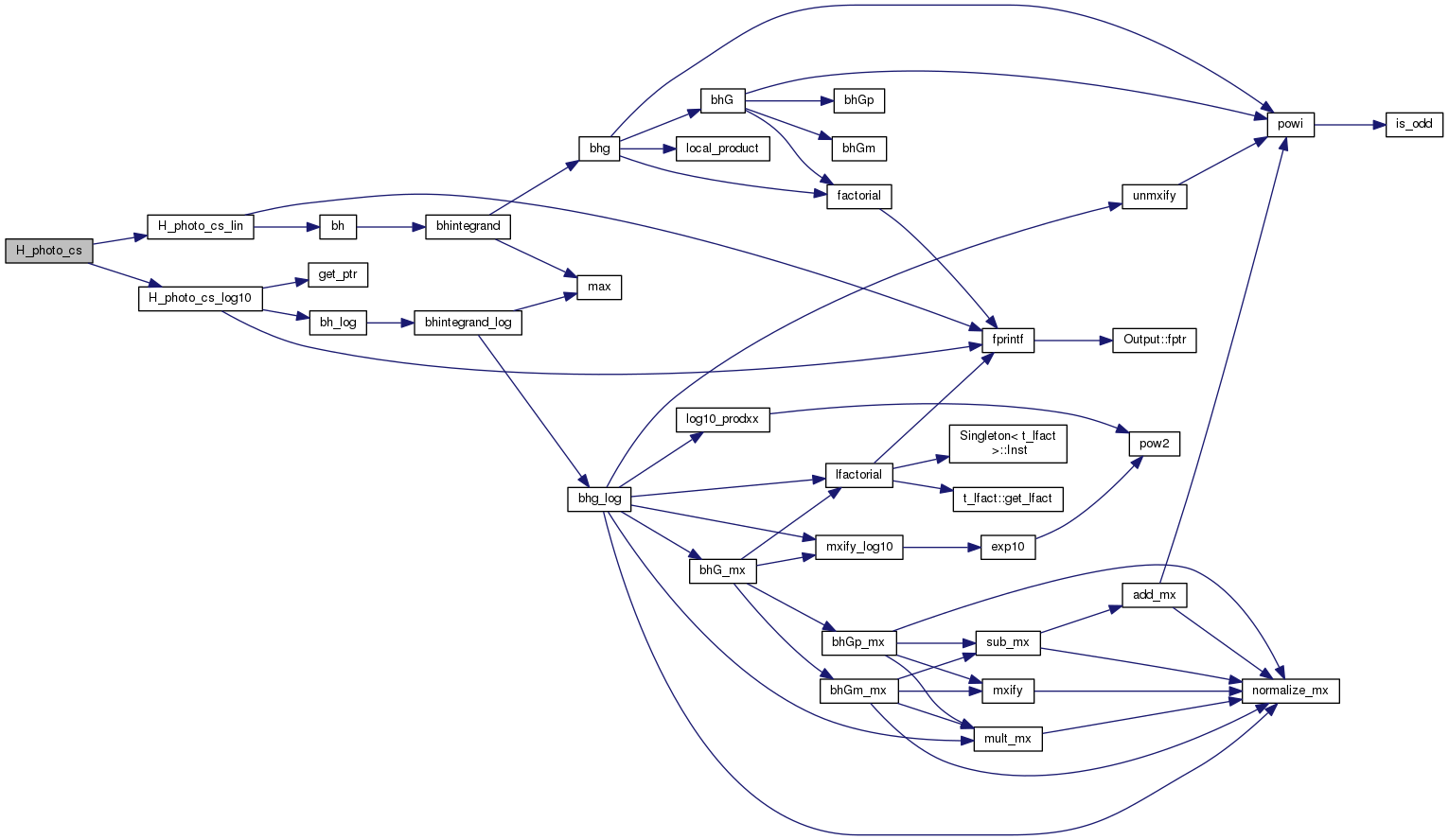

Here is the call graph for this function:
