Chamber and Beamline Model
HFS000 Target Chamber Assembly 2014_03_14.stpHFS002 - n3He_ver0_prelim Dec 11.stp
Chamber model as of December 11 with beamline floor and some other coil details. Only chamber model is completely accurate, holding field solenoids are approximate, and NPDGamma coils are not verified.

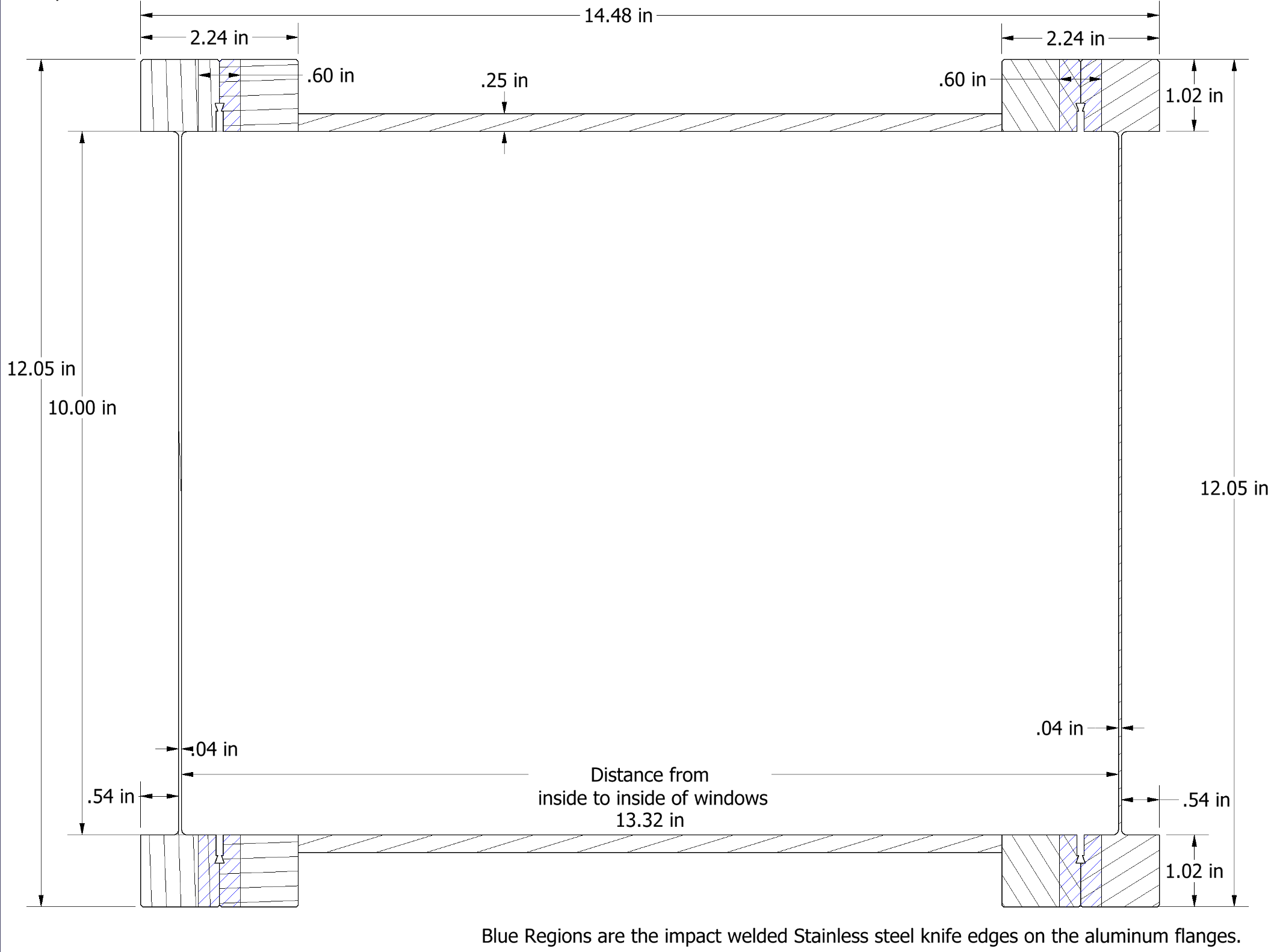

Chamber Housing Simplified Drawing

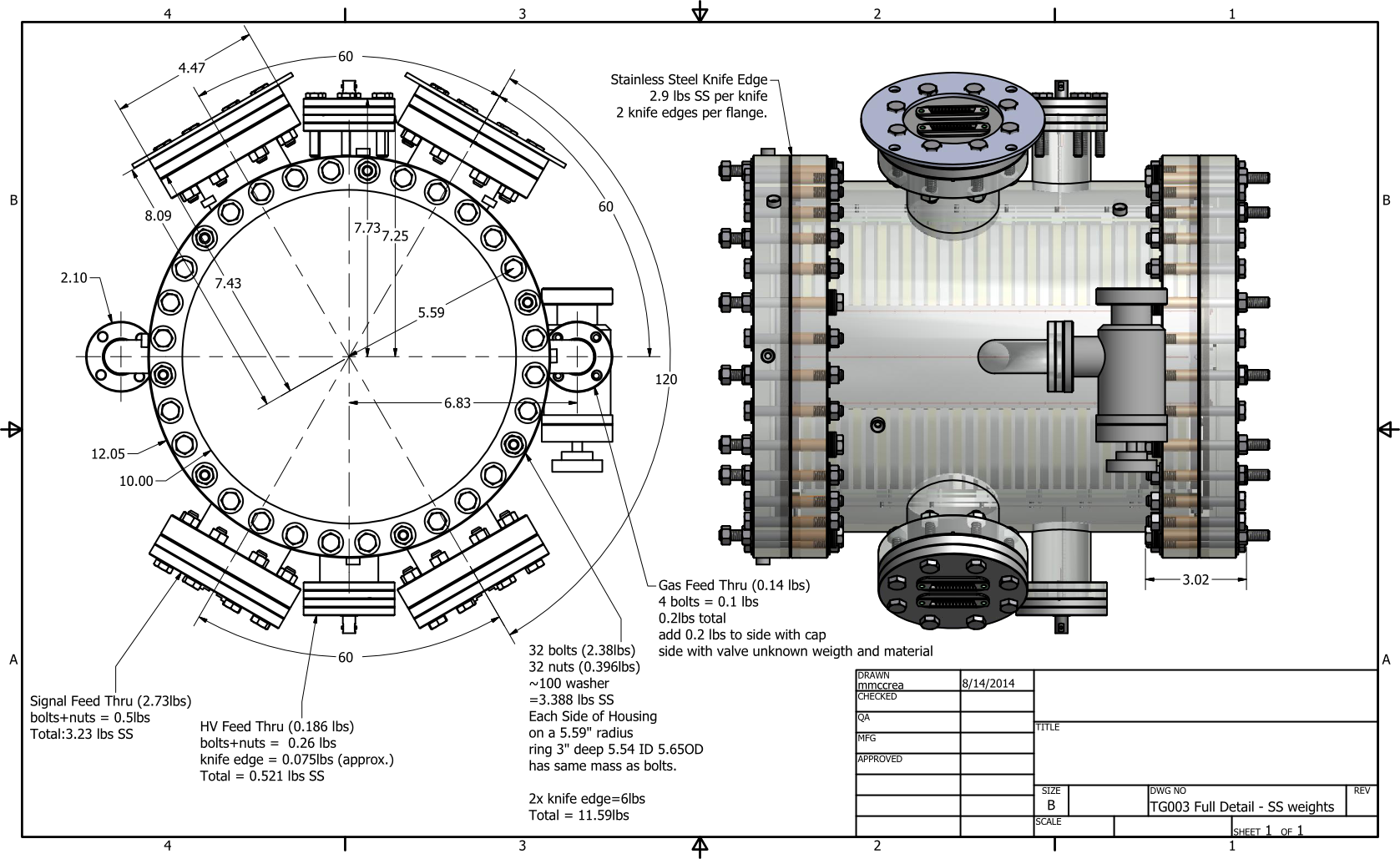

Chamber Housing Detailed CAD Drawing
IonChamber_v03.pdf

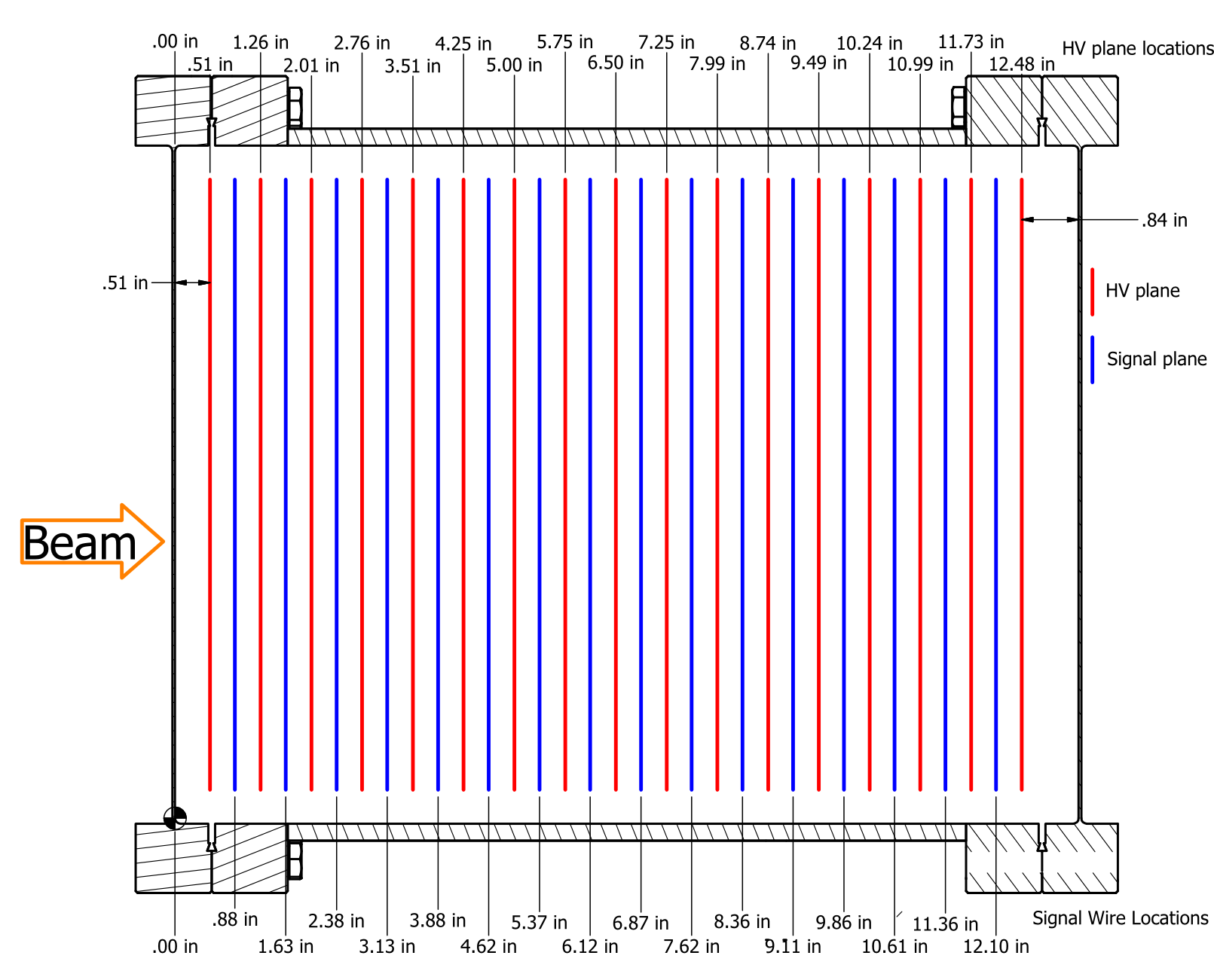

Wire Frame Locations Simplified Model Side View
IonChamber - wire plane locations.pdf

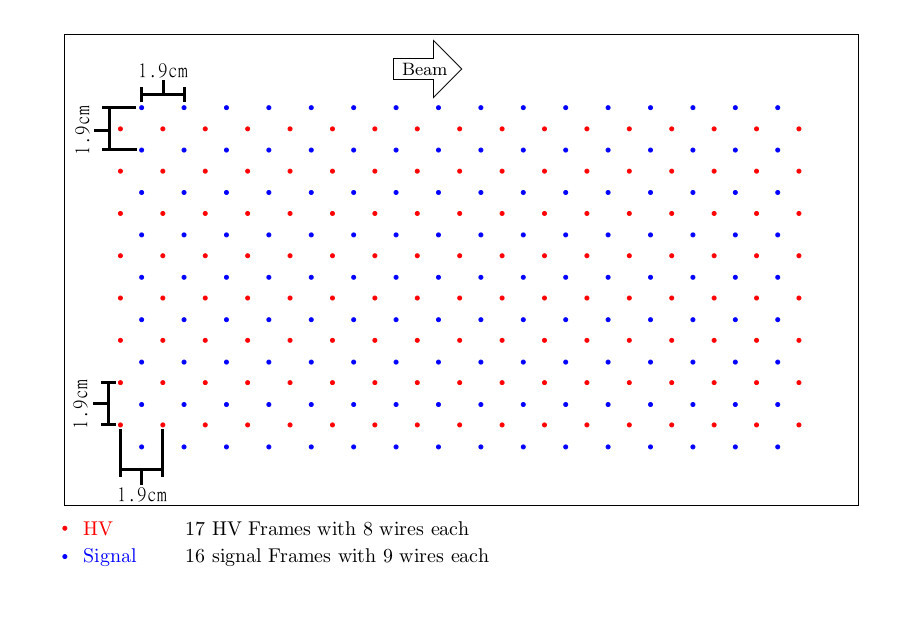

Wire Frames Top Down Model
IonChamber-TopDownDiagram.pdf

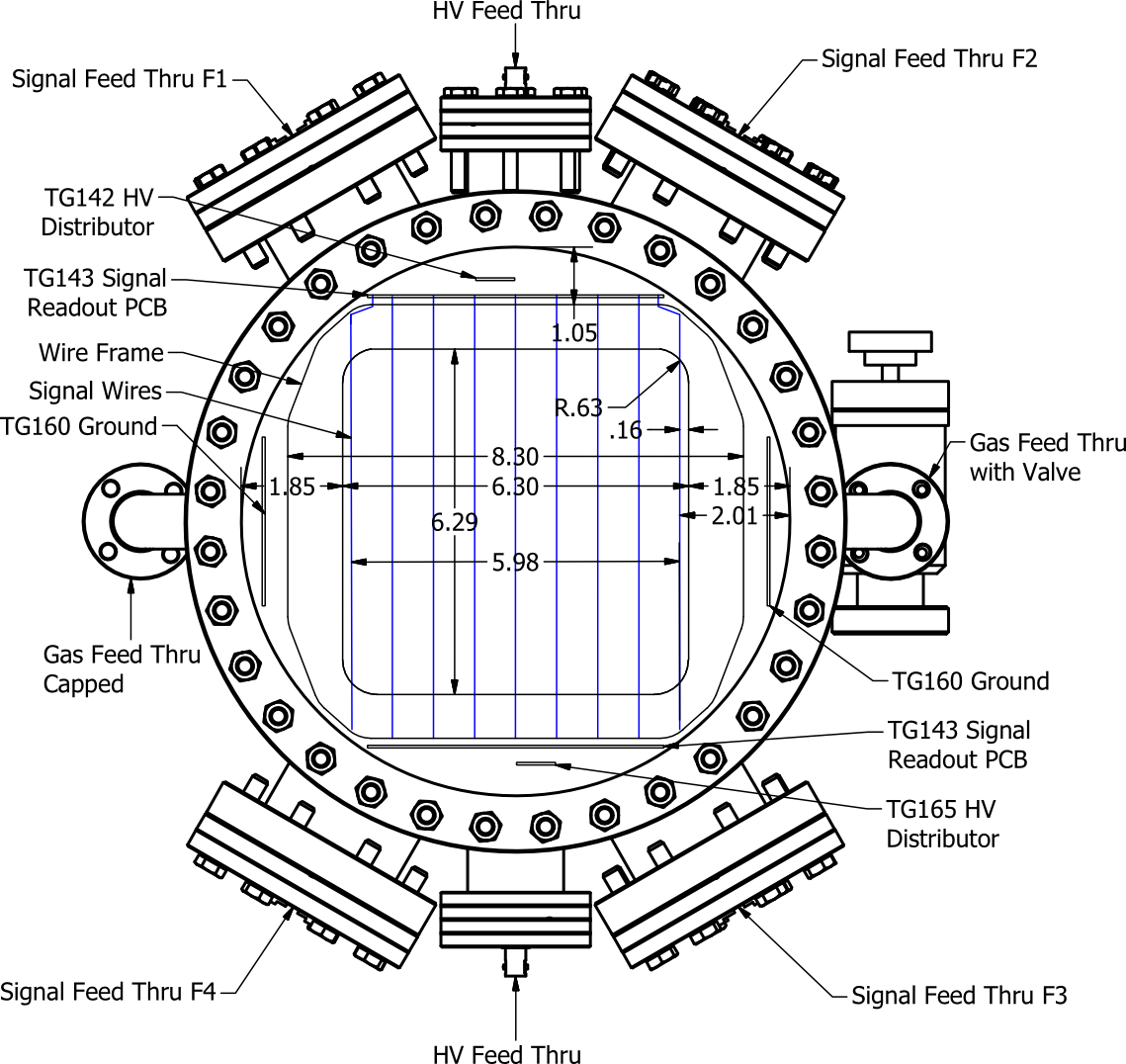

Axial View of Chamber With Simplified Frame Geometry
