/home66/gary/public_html/cloudy/c08_branch/source/atmdat_char_tran.cpp File Reference

#include "cddefines.h"
#include "phycon.h"
#include "physconst.h"
#include "abund.h"
#include "dense.h"
#include "iso.h"
#include "thermal.h"
#include "mole.h"
#include "elementnames.h"
#include "heavy.h"
#include "trace.h"
#include "conv.h"
#include "atmdat.h"

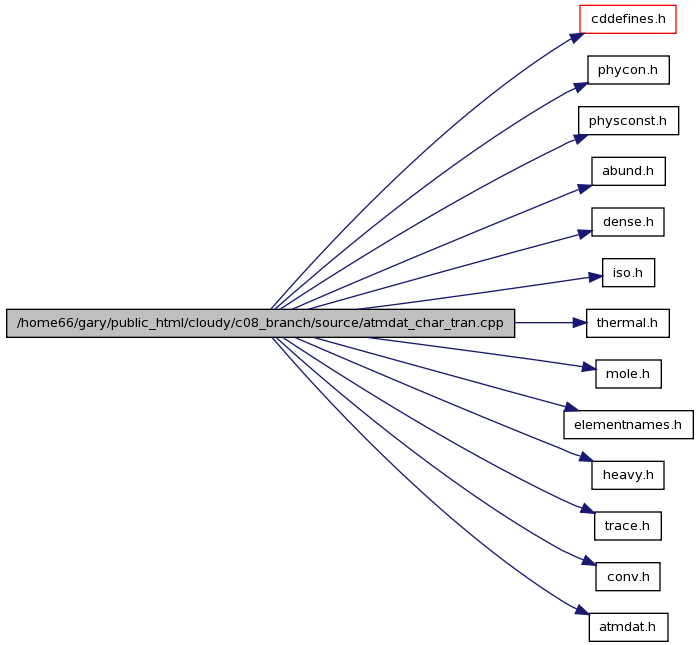

Include dependency graph for atmdat_char_tran.cpp:

Go to the source code of this file.

Defines
#define	FRAC   0.1
Functions
STATIC double	HCTIon (long int ion, long int nelem)
STATIC double	HCTRecom (long int ion, long int nelem)
STATIC void	MakeHCTData (void)
void	ChargTranEval (double *O_HIonRate)
double	ChargTranSumHeat (void)
void	ChargTranPun (FILE *ipPnunit, char *chPunch)
Variables
static double	CTIonData [LIMELM][4][8]
static double	CTRecombData [LIMELM][4][7]
static bool	lgCTDataDefined = false

---

Define Documentation

#define FRAC   0.1

---

Function Documentation

void ChargTranEval

(

double *

O_HIonRate

)

atmdat fill in the HCharExcIonOf and Rec arrays with Kingdon's fitted CT with H,

Parameters:

O_HIonRate

Returns:

value is rate O ionizes H

Todo:

1 update ct to Kimura et al. (1996)

Todo:

1 above rate not intended for very low temperatures - find ref for low-T rate, probably is 1e-9 like above

Todo:

0 these should be values at 1e5 K

Todo:

2 not currently used - include as deexcitation process

Definition at line 43 of file atmdat_char_tran.cpp.

References atmdat, co, conv, DEBUG_ENTRY, t_atmdat::HCharExcIonOf, t_atmdat::HCharExcRecTo, HCTIon(), HCTRecom(), t_atmdat::HeCharExcIonOf, t_atmdat::HeCharExcRecTo, ipHELIUM, ipOXYGEN, t_co::lgUMISTrates, LIMELM, t_conv::nTotalIoniz, phycon, sexp(), and t_phycon::te.

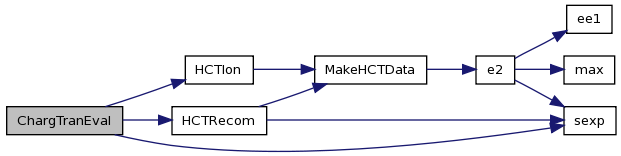

Here is the call graph for this function:

void ChargTranPun	(	FILE *	ipPnunit,
		char *	chPunch
	)

punch charge transfer rate coefficients

Parameters:

	ipPnunit
	chPunch

Definition at line 1684 of file atmdat_char_tran.cpp.

References t_elementnames::chElementSym, DEBUG_ENTRY, elementnames, HCTIon(), HCTRecom(), phycon, and t_phycon::te.

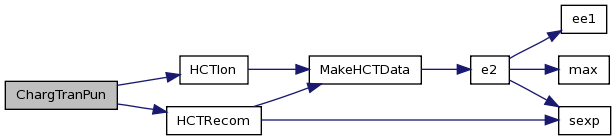

Here is the call graph for this function:

double ChargTranSumHeat

(

void

)

sum up the charge transfer heating

Returns:

Definition at line 570 of file atmdat_char_tran.cpp.

References ASSERT, atmdat, CTIonData, CTRecombData, DEBUG_ENTRY, dense, EN1EV, t_atmdat::HCharCoolMax, t_atmdat::HCharExcIonOf, t_atmdat::HCharExcRecTo, t_atmdat::HCharHeatMax, t_atmdat::HCharHeatOn, t_thermal::htot, ipH1s, ipH_LIKE, ipHELIUM, ipHYDROGEN, lgCTDataDefined, LIMELM, MAX2, MIN2, StatesElem, thermal, and t_dense::xIonDense.

STATIC double HCTIon	(	long int	ion,
		long int	nelem
	)

Definition at line 692 of file atmdat_char_tran.cpp.

References ASSERT, CTIonData, DEBUG_ENTRY, lgCTDataDefined, t_trace::lgTrace, MakeHCTData(), MAX2, MIN2, phycon, t_phycon::te, and trace.

Referenced by ChargTranEval(), and ChargTranPun().

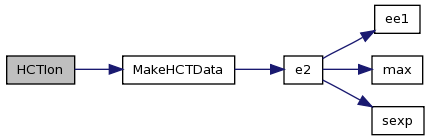

Here is the call graph for this function:

STATIC double HCTRecom	(	long int	ion,
		long int	nelem
	)

Definition at line 760 of file atmdat_char_tran.cpp.

References ASSERT, atmdat, CTRecombData, DEBUG_ENTRY, t_atmdat::HCTAlex, lgCTDataDefined, t_trace::lgTrace, MakeHCTData(), MAX2, MIN2, phycon, sexp(), t_phycon::te, and trace.

Referenced by ChargTranEval(), and ChargTranPun().

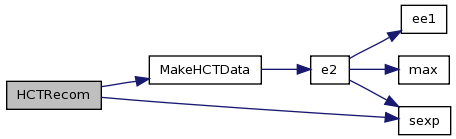

Here is the call graph for this function:

STATIC void MakeHCTData

(

void

)

Definition at line 852 of file atmdat_char_tran.cpp.

References CTIonData, CTRecombData, DEBUG_ENTRY, and e2().

Referenced by HCTIon(), and HCTRecom().

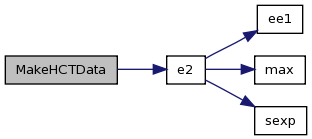

Here is the call graph for this function:

---

Variable Documentation

double CTIonData[LIMELM][4][8] [static]

Definition at line 36 of file atmdat_char_tran.cpp.

Referenced by ChargTranSumHeat(), HCTIon(), and MakeHCTData().

double CTRecombData[LIMELM][4][7] [static]

Definition at line 37 of file atmdat_char_tran.cpp.

Referenced by ChargTranSumHeat(), HCTRecom(), and MakeHCTData().

bool lgCTDataDefined = false [static]

Definition at line 40 of file atmdat_char_tran.cpp.

Referenced by ChargTranSumHeat(), HCTIon(), and HCTRecom().

---
