/home66/gary/public_html/cloudy/c08_branch/source/helike_cs.h File Reference

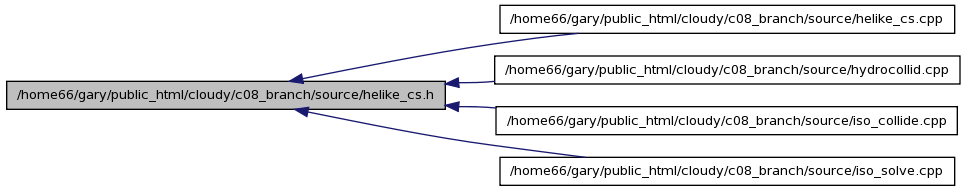

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	HeCollid (long int nelem)
realnum	HeCSInterp (long int nelem, long int ipHi, long int ipLo, long int Collider)
realnum	AtomCSInterp (long int nelem, long int ipHi, long int ipLo, realnum *factor, const char **where, long int Collider)
realnum	IonCSInterp (long int nelem, long int ipHi, long int ipLo, realnum *factor, const char **where, long int Collider)
double	CS_l_mixing_S62 (long int ipISO, long int nelem, long int ipLo, long int ipHi, double temp, long int Collider)
double	CS_l_mixing_PS64 (long int ipISO, long int nelem, long int ipLo, long int ipHi, long int Collider)
double	CS_l_mixing_VF01 (long int ipISO, long int nelem, long int n, long int l, long int lp, long int s, double temp, long int Collider)

---

Function Documentation

realnum AtomCSInterp	(	long int	nelem,
		long int	ipHi,
		long int	ipLo,
		realnum *	factor,
		const char **	where,
		long int	Collider
	)

AtomCSInterp do the atom

Parameters:

	nelem
	ipHi
	ipLo
	*factor
	**where
	Collider

Definition at line 263 of file helike_cs.cpp.

References t_phycon::alogte, ASSERT, t_iso::CSTemp, DEBUG_ENTRY, t_iso::HeCS, ipELECTRON, ipHe2p3P0, ipHe2p3P1, ipHe2p3P2, ipHE_LIKE, ipHELIUM, iso, t_iso::lgColl_excite, t_iso::lgColl_l_mixing, t_iso::nCollapsed_max, t_iso::nCS, t_iso::numLevels_max, phycon, StatesElem, and TotalInsanity().

Referenced by HeCSInterp().

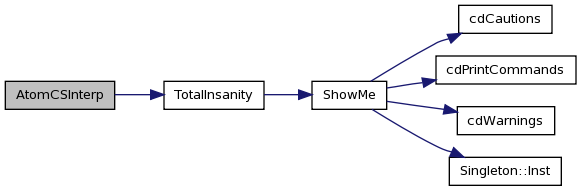

Here is the call graph for this function:

double CS_l_mixing_PS64	(	long int	ipISO,
		long int	nelem,
		long int	ipLo,
		long int	ipHi,
		long int	Collider
	)

CS_l_mixing_PS64 Collision treatment based on Pengelly and Seaton 1964

Parameters:

	ipISO
	nelem	the chemical element, 1 for He
	ipLo	lower level, 0 for ground
	ipHi	upper level, 0 for ground
	Collider

double CS_l_mixing_S62	(	long int	ipISO,
		long int	nelem,
		long int	ipLo,
		long int	ipHi,
		double	temp,
		long int	Collider
	)

CS_l_mixing - find rate for l-mixing collisions by protons, for neutrals based on Seaton 1962

Parameters:

	ipISO
	nelem
	ipLo
	ipHi
	temp
	Collider

double CS_l_mixing_VF01	(	long int	ipISO,
		long int	nelem,
		long int	n,
		long int	l,
		long int	lp,
		long int	s,
		double	temp,
		long int	Collider
	)

CS_l_mixing_VF01 Collision treatment based on Vrinceanu and Flannery 2001

Parameters:

	ipISO
	nelem
	n
	l
	lp
	s
	temp
	Collider

Definition at line 1133 of file helike_cs.cpp.

References ASSERT, ColliderCharge, collision_strength_VF01(), DEBUG_ENTRY, dense, t_dense::eden, global_Collider, global_collider_charge, global_ipISO, global_l, global_l_prime, global_n, global_s, global_temp, global_z, ipH_LIKE, iso, kTRyd, t_iso::lgCS_therm_ave, qg32(), TE1RYD, and Therm_ave_coll_str_int_VF01().

Referenced by HydroCSInterp(), and IonCSInterp().

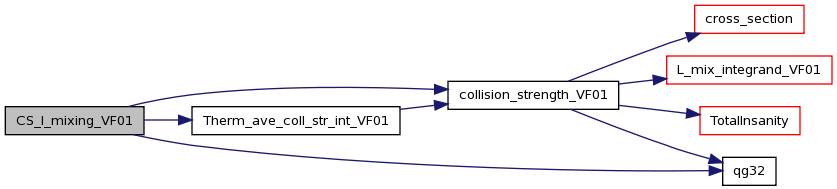

Here is the call graph for this function:

void HeCollid

(

long int

nelem

)

HeCollid evaluate collisional rates

Parameters:

nelem

realnum HeCSInterp	(	long int	nelem,
		long int	ipHi,
		long int	ipLo,
		long int	Collider
	)

HeCSInterp interpolate on He1 collision strengths

Parameters:

	nelem
	ipHi
	ipLo
	Collider

Definition at line 198 of file helike_cs.cpp.

References ASSERT, AtomCSInterp(), DEBUG_ENTRY, IonCSInterp(), ioQQQ, IPCOLLIS, ipHE_LIKE, ipHELIUM, ipOXYGEN, iso, iso_put_error(), t_iso::lgColl_excite, t_iso::lgCS_Vriens, MAX2, S, and StatesElem.

Referenced by AGN_He1_CS(), and iso_collide().

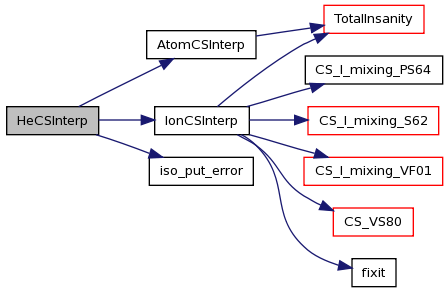

Here is the call graph for this function:

realnum IonCSInterp	(	long int	nelem,
		long int	ipHi,
		long int	ipLo,
		realnum *	factor,
		const char **	where,
		long int	Collider
	)

IonCSInterp do the ions

Parameters:

	nelem
	ipHi
	ipLo
	*factor
	**where
	Collider

---
