#include "cddefines.h"
#include "cddrive.h"
#include "geometry.h"
#include "radius.h"
#include "rfield.h"
#include "opacity.h"
#include "grid.h"

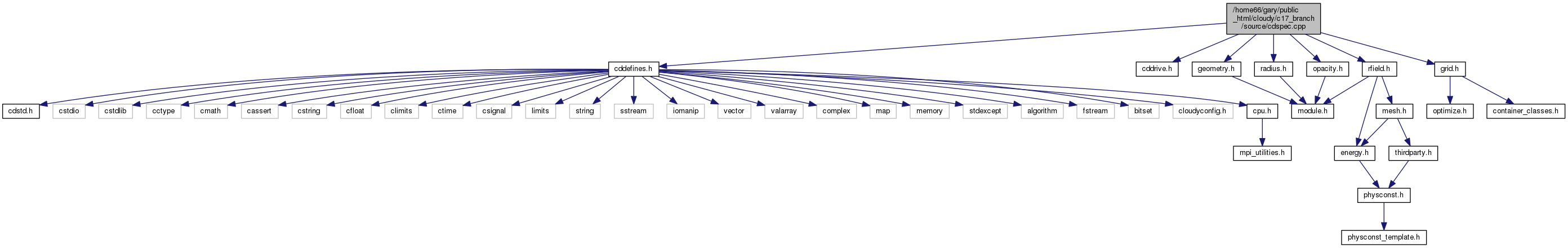

Include dependency graph for cdspec.cpp:

Functions
void	cdSPEC (int nOption, long int nEnergy, double ReturnedSpectrum[])

void	cdSPEC2 (int nOption, long int nEnergy, long ipLoEnergy, long ipHiEnergy, realnum ReturnedSpectrum[])

Function Documentation

void cdSPEC	(	int	Option,
		long int	nEnergy,
		double	ReturnedSpectrum[]
	)

this routine returns the spectrum needed for Keith Arnaud's XSPEC X-Ray analysis code. It should be called after cdDrive has successfully computed a model. The calling routine must ensure that the vectors have enough space to store the resulting spectrum, given the bounds and energy resolution

Parameters

Option

        option - the type of spectrum to be returned
        1                       the incident continuum 4\pi nuJ_nu, , erg cm-2 s-1

        2                       the attenuated incident continuum, same units
        3                       the reflected continuum, same units

        4                       diffuse continuous emission outward direction
        5                       diffuse continuous emission, reflected

        6                       collisional+recombination lines, outward
        7                       collisional+recombination lines, reflected

                        all lines and continuum emitted by the cloud assume full coverage of
                        continuum source

nEnergy the number of cells + 1

ReturnedSpectrum[] the returned spectrum, same size is two energy spectra (see option), returns nEnergy -1 pts

Definition at line 20 of file cdspec.cpp.

References t_mesh::anu(), t_mesh::anu2(), ASSERT, cdEXIT, t_rfield::ConEmitOut, t_rfield::ConEmitReflec, t_rfield::ConRefIncid, t_geometry::covgeo, DEBUG_ENTRY, EXIT_FAILURE, t_rfield::flux, t_rfield::flux_total_incident, fprintf(), geometry, ioQQQ, t_geometry::lgSphere, t_rfield::nflux, t_rfield::nflux_with_check, t_rfield::outlin, t_radius::r1r0sq, radius, t_rfield::reflin, rfield, and t_mesh::widflx().

Referenced by SaveNewContinuum().

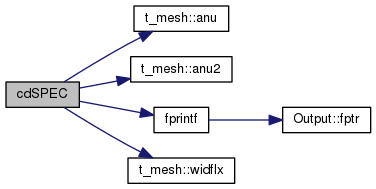

Here is the call graph for this function:

void cdSPEC2	(	int	nOption,
		long int	nEnergy,
		long	ipLoEnergy,
		long	ipHiEnergy,
		realnum	ReturnedSpectrum[]
	)

Definition at line 151 of file cdspec.cpp.

References ASSERT, cdEXIT, t_rfield::ConEmitOut, t_rfield::ConEmitReflec, t_rfield::ConRefIncid, t_geometry::covgeo, DEBUG_ENTRY, EXIT_FAILURE, t_opac::ExpmTau, t_rfield::flux, t_rfield::flux_total_incident, fprintf(), geometry, t_rfield::getCoarseTransCoef(), ioQQQ, t_geometry::lgSphere, t_rfield::nflux, t_rfield::nflux_with_check, NUM_OUTPUT_TYPES, opac, t_rfield::outlin, t_radius::r1r0sq, radius, t_rfield::reflin, rfield, and SMALLFLOAT.

Here is the call graph for this function:
