#include "cddefines.h"
#include "iterations.h"
#include "called.h"
#include "input.h"
#include "rfield.h"
#include "trace.h"
#include "radius.h"
#include "geometry.h"
#include "opacity.h"
#include "dense.h"
#include "hcmap.h"
#include "plot.h"

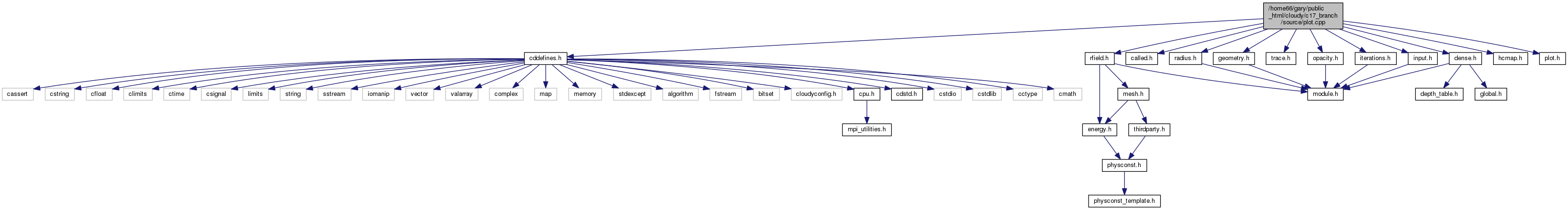

Include dependency graph for plot.cpp:

Functions
STATIC void	pltcon (long int np, const char *chCall)

STATIC void	pltmap (long int np, const char *chCall)

STATIC void	pltopc (long int np, const char *chCall)

STATIC void	pltr (const double[], const double[], long, double, double, double, double, char, const char *, long, bool)

void	plot (const char *chCall)

STATIC void	pltr (const double x[], const double y[], long int npnts, double xmin, double xmax, double ymin, double ymax, char chSym, const char *chXtitle, long int itim, bool lgTrace)

Variables
static const int	IHI = 59

static const int	IWID = 121

t_plotCom	plotCom

Function Documentation

void plot ( const char * chCall )

plot master routine to generate some sort of plot

Parameters

*chCall

Definition at line 39 of file plot.cpp.

References called, cdEXIT, t_plotCom::chPType, DEBUG_ENTRY, EXIT_FAILURE, fprintf(), ioQQQ, iterations, t_iterations::lgLastIt, t_plotCom::lgPlotON, t_called::lgTalk, t_plotCom::nplot, pltcon(), pltmap(), and pltopc().

Referenced by cloudy().

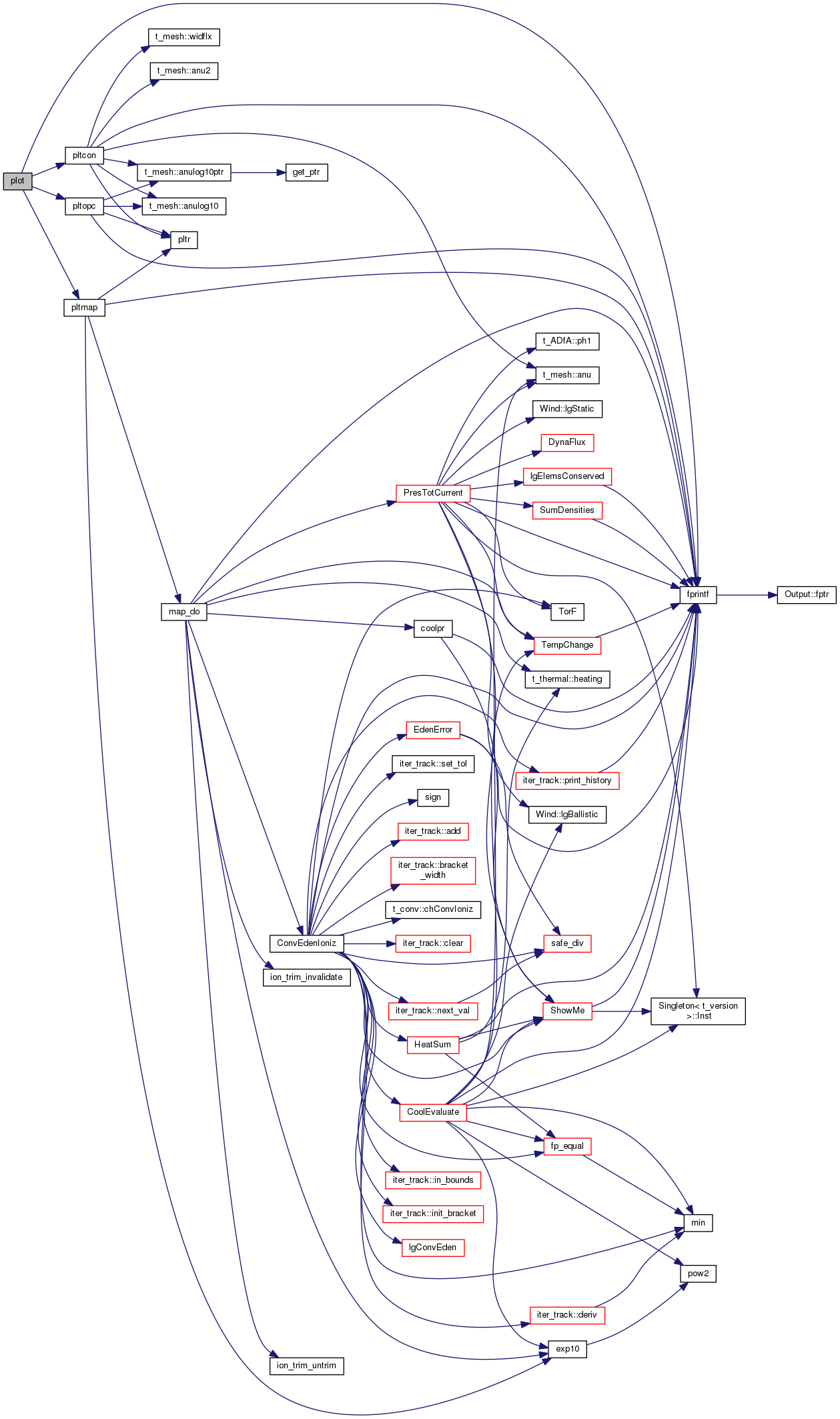

Here is the call graph for this function:

STATIC void pltcon	(	long int	np,
		const char *	chCall
	)

Definition at line 99 of file plot.cpp.

References t_mesh::anu(), t_mesh::anu2(), t_mesh::anulog10(), t_mesh::anulog10ptr(), t_plotCom::chPType, t_rfield::ConEmitLocal, t_rfield::ConEmitOut, t_rfield::ConEmitReflec, t_geometry::covgeo, DEBUG_ENTRY, t_rfield::flux, t_rfield::flux_total_incident, fprintf(), geometry, ioQQQ, t_plotCom::lgPltTrace, t_geometry::lgSphere, t_trace::lgTrace, MALLOC, MAX2, MAX3, MIN2, MIN3, t_rfield::nflux, t_rfield::nflux_with_check, nzone, opac, t_opac::opacity_abs, t_rfield::otscon, t_rfield::otslin, t_rfield::outlin, t_rfield::outlin_noplot, pltr(), t_plotCom::pltxmn, t_plotCom::pltxmx, t_radius::r1r0sq, radius, t_rfield::reflin, rfield, trace, and t_mesh::widflx().

Referenced by plot().

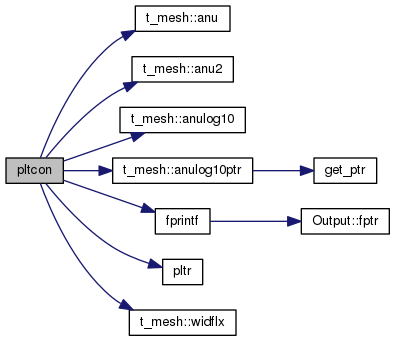

Here is the call graph for this function:

STATIC void pltmap	(	long int	np,
		const char *	chCall
	)

Definition at line 276 of file plot.cpp.

References called, t_hcmap::cmap, DEBUG_ENTRY, exp10(), fprintf(), hcmap, t_hcmap::hmap, ioQQQ, t_hcmap::lgMapBeingDone, t_plotCom::lgPltTrace, t_called::lgTalk, t_trace::lgTrace, map_do(), MAX2, MAX3, MIN2, MIN3, t_hcmap::nmap, pltr(), t_plotCom::pltxmn, t_plotCom::pltxmx, t_hcmap::RangeMap, t_hcmap::temap, and trace.

Referenced by plot().

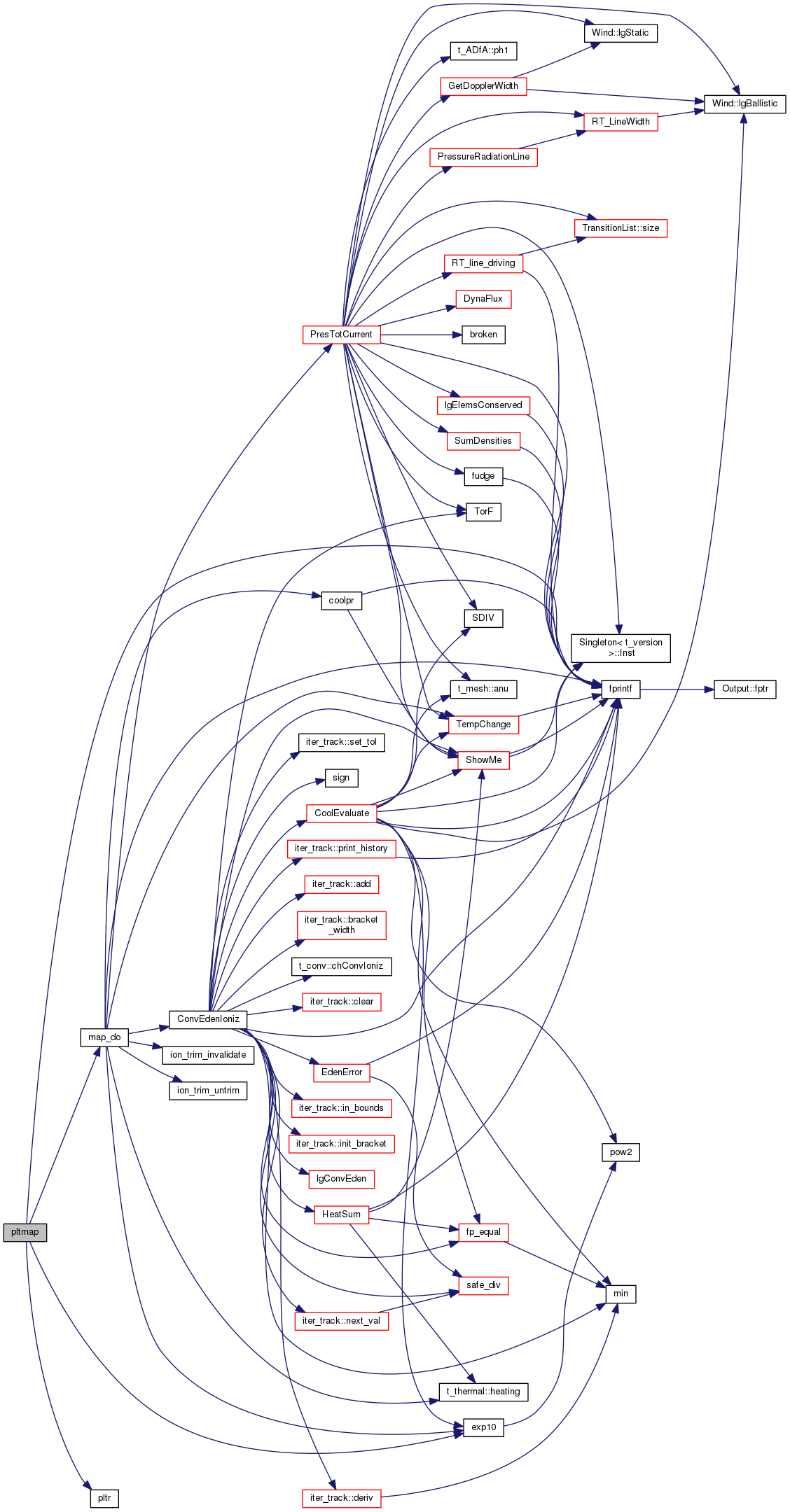

Here is the call graph for this function:

STATIC void pltopc	(	long int	np,
		const char *	chCall
	)

Definition at line 370 of file plot.cpp.

References t_mesh::anulog10(), t_mesh::anulog10ptr(), cdEXIT, t_plotCom::chPType, DEBUG_ENTRY, dense, EXIT_FAILURE, fprintf(), t_dense::gas_phase, ioQQQ, ipHYDROGEN, t_plotCom::lgPltTrace, t_trace::lgTrace, MALLOC, MAX2, MAX3, MIN2, MIN3, t_rfield::nflux, t_rfield::nflux_with_check, opac, t_opac::opacity_abs, t_opac::opacity_abs_savzon1, t_opac::opacity_sct, t_opac::opacity_sct_savzon1, pltr(), t_plotCom::pltxmn, t_plotCom::pltxmx, rfield, and trace.

Referenced by plot().

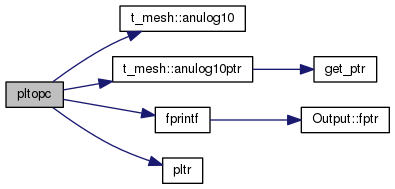

Here is the call graph for this function:

STATIC void pltr	(	const double	[],
		const double	[],
		long	,
		double	,
		double	,
		double	,
		double	,
		char	,
		const char *	,
		long	,
		bool
	)

Referenced by pltcon(), pltmap(), and pltopc().

STATIC void pltr	(	const double	x[],
		const double	y[],
		long int	npnts,
		double	xmin,
		double	xmax,
		double	ymin,
		double	ymax,
		char	chSym,
		const char *	chXtitle,
		long int	itim,
		bool	lgTrace
	)
