taulines.cpp File Reference
#include "cddefines.h"
#include "taulines.h"
#include "atmdat.h"

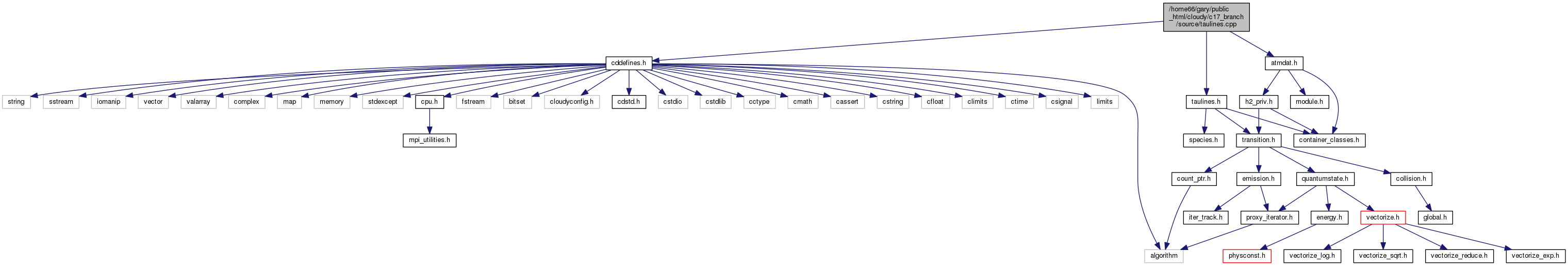

Include dependency graph for taulines.cpp:

Go to the source code of this file.

Functions

void checkTransitionListOfLists (vector< TransitionList > &list)

TransitionList::iterator findTrans_byQuantNumb (const string speciesLabel, const long n_hi, const long l_hi, const long S_hi, const long n_lo, const long l_lo, const long S_lo)

TransitionList::iterator findTrans_byWLAng (string speciesLabel, const double wl_Ang, double &wl_err)


Variables

vector< TransitionListAllTransitions

bool lgStatesAdded

bool lgLinesAdded

multi_arr< qList, 2 > StatesElemNEW

char ** chSpecies

vector< speciesdBaseSpecies

vector< qListdBaseStates

vector< multi_arr< int, 2 > > ipdBaseTrans

vector< TransitionListdBaseTrans

multi_arr< CollRateCoeffArray, 2 > AtmolCollRateCoeff

vector< multi_arr
< CollSplinesArray, 3 > >
AtmolCollSplines

vector< StoutCollArrayStoutCollData

long int nSpecies

qList AnonStates ("AnonStates", 1)

multi_arr< int, 3 > ipExtraLymanLines

vector< vector< TransitionList > > ExtraLymanLines

TransitionList UTALines ("UTALines",&AnonStates)

long int nLevel1

TransitionList HFLines ("HFLines",&AnonStates)

vector< vector< TransitionList > > Transitions

multi_arr< int, 2 > ipFe2LevN

static qList Fe2LevNStates

TransitionList Fe2LevN ("Fe2LevN",&Fe2LevNStates)

multi_arr< int, 3 > ipSatelliteLines

vector< vector< TransitionList > > SatelliteLines

TransitionList TauLine2 ("TauLine2",&AnonStates)

realnumcs1_flag_lev2

TransitionProxy::iterator TauDummy

EmissionProxy DummyEmis


Function Documentation

void checkTransitionListOfLists ( vector< TransitionList > &  list)

Definition at line 39 of file taulines.cpp.

Referenced by ContCreatePointers().

TransitionList::iterator findTrans_byQuantNumb ( const string  speciesLabel,
const long  n_hi,
const long  l_hi,
const long  S_hi,
const long  n_lo,
const long  l_lo,
const long  S_lo
)

findTrans_byQuantNumb Identify transition of a given species by its quantum numbers.

Parameters
speciesLabel(in) label of species, e.g., "H 1"
n_hi(in) principal quantum number of upper level in transition
l_hi(in) orbital angular momentum of upper level
S_hi(in) multiplicity of upper level
n_lo(in) principal quantum number of lower level
l_lo(in) orbital angular momentum of lower level
S_lo(in) multiplicity of lower level
Returns
pointer to transition in species list of transitions. If no match is found, return value is past the end of the entire list.

Definition at line 57 of file taulines.cpp.

References AllTransitions.

TransitionList::iterator findTrans_byWLAng ( string  speciesLabel,
const double  wl_Ang,
double &  wl_err
)

findTrans_byWLAng Identify transition of a given species by wavelength.

Parameters
speciesLabel(in) label of species, e.g., "H 1"
wavelength(in) transition wavelength, in Angstrom
wl_err(out) error in wavelength match
Returns
pointer to transition in species list of transitions. If no match is found, return value is past the end of the entire list.

Definition at line 91 of file taulines.cpp.

References AllTransitions.

Variable Documentation

vector<TransitionList> AllTransitions
qList AnonStates("AnonStates", 1)

Referenced by iso_allocate().

multi_arr<CollRateCoeffArray,2> AtmolCollRateCoeff
vector< multi_arr<CollSplinesArray,3> > AtmolCollSplines

Definition at line 20 of file taulines.cpp.

Referenced by atmdat_CHIANTI_readin(), CHIANTI_Upsilon(), and database_readin().

char** chSpecies

Definition at line 14 of file taulines.cpp.

Referenced by TransitionProxy::chLabel().

realnum* cs1_flag_lev2

Definition at line 37 of file taulines.cpp.

Referenced by CoolDima(), and read_level2_lines().

vector<species> dBaseSpecies
vector<qList> dBaseStates
vector<TransitionList> dBaseTrans
EmissionProxy DummyEmis
Todo:
2 bring these two together.

AddLine2Stack add generic emission line to GenericLines and return pointer to that state.

Definition at line 122 of file taulines.cpp.

Referenced by TransitionProxy::Emis(), and InitDefaultsPreparse().

vector<vector<TransitionList> > ExtraLymanLines
TransitionList Fe2LevN("Fe2LevN",&Fe2LevNStates)
qList Fe2LevNStates
static

Definition at line 32 of file taulines.cpp.

TransitionList HFLines("HFLines",&AnonStates)

extern transition TauLines[NTAULINES+1]; these are the public parts of the hyperfine structure line transfer info data gathered from hyperfine.dat using routines in hyperfine.c the structure containing the hfs line information

Referenced by cdTemp(), ContCreatePointers(), CoolHyperfine(), FindNeg(), FndLineHt(), H21_cm_pops(), HyperfineCreate(), HyperfineCS(), iter_end_check(), lines(), lines_setup(), PresTotCurrent(), PrtComment(), PrtFinal(), PrtLinePres(), prtmet(), radius_increment(), RT_diffuse(), RT_line_all(), RT_line_driving(), RT_tau_inc(), RT_tau_init(), RT_tau_reset(), SaveDo(), SaveLineData(), and state_get_put().

vector< multi_arr<int,2> > ipdBaseTrans
multi_arr<int,3> ipExtraLymanLines

this is the set of extra lines, ExtraLymanLines[ipISO][ipZ][n]

Definition at line 24 of file taulines.cpp.

Referenced by ContCreatePointers(), iso_allocate(), iso_create(), lines(), RT_line_all(), RT_line_driving(), RT_tau_inc(), RT_tau_init(), RT_tau_reset(), SaveLineStuff(), and state_get_put().

multi_arr<int,2> ipFe2LevN

Definition at line 31 of file taulines.cpp.

multi_arr<int,3> ipSatelliteLines
bool lgLinesAdded

Definition at line 12 of file taulines.cpp.

Referenced by TransitionProxy::AddLine2Stack(), ContCreatePointers(), and InitCoreload().

bool lgStatesAdded
long int nLevel1

this is the number of level 1 lines, and is set in atmdat_readin by counter number of data lines in level1.dat

Definition at line 27 of file taulines.cpp.

long int nSpecies
vector<vector<TransitionList> > SatelliteLines
multi_arr<qList,2> StatesElemNEW

Definition at line 13 of file taulines.cpp.

vector< StoutCollArray > StoutCollData

Definition at line 21 of file taulines.cpp.

Referenced by atmdat_STOUT_readin(), database_readin(), and StoutCollRate().

this is a dummy optical depth array for non-existant lines

Definition at line 121 of file taulines.cpp.

TransitionList TauLine2("TauLine2",&AnonStates)
vector<vector<TransitionList> > Transitions

main line arrays for hydrogenic ions<br>

first dimension is atomic number
second dim is upper level
third dim is lower level
nta dim is set of pointers for quantities within line transfer arrays
in the forc translation, the upper level was too low by 1, since the
fortran was starting at 1. the lower dim was not changed by translation
since it started from ip1s = 0
any place where the third dim has -1 is probably a remnant from forc and is wrong

Definition at line 30 of file taulines.cpp.

Referenced by iso_allocate().

TransitionList UTALines("UTALines",&AnonStates)
