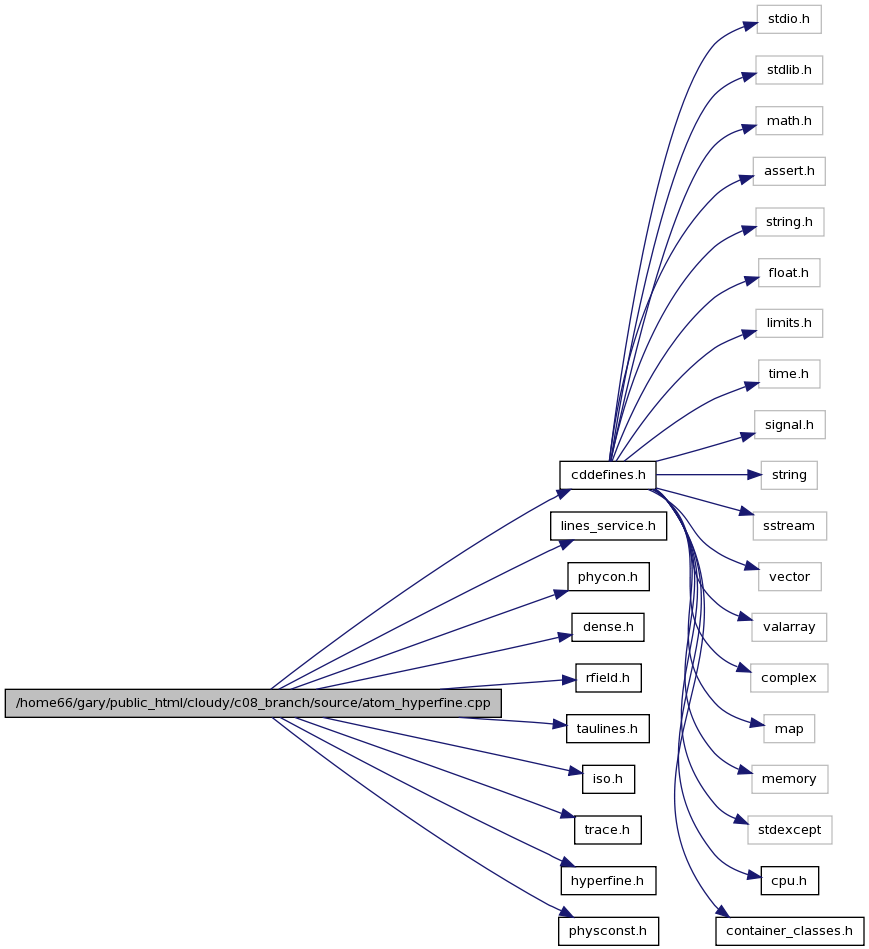

#include "cddefines.h"#include "lines_service.h"#include "phycon.h"#include "dense.h"#include "rfield.h"#include "taulines.h"#include "iso.h"#include "trace.h"#include "hyperfine.h"#include "physconst.h"Include dependency graph for atom_hyperfine.cpp:
Go to the source code of this file.
Data Structures | |
| struct | Ion |
Defines | |
| #define | N_TE_TABLE 12 |
Functions | |
| void | H21_cm_pops (void) |
| double | H21cm_electron (double temp) |
| STATIC double | h21_t_ge_10 (double temp) |
| STATIC double | h21_t_lt_10 (double temp) |
| double | H21cm_H_atom (double temp) |
| double | H21cm_proton (double temp) |
| void | HyperfineCreate (void) |
| double | HyperfineCS (long i) |
Variables | |
| static Ion * | Strengths |
| #define N_TE_TABLE 12 |
Referenced by HyperfineCS().

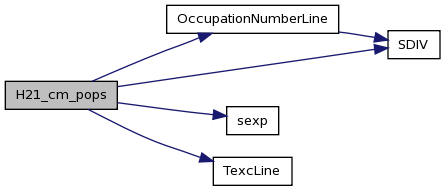

| void H21_cm_pops | ( | void | ) |
H21_cm_pops - fine level populations for 21 cm with Lya pumping included
Definition at line 24 of file atom_hyperfine.cpp.
References t_dense::cdsqte, t_transition::Coll, t_rfield::ContBoltz, t_collision::cs, dense, t_transition::Emis, t_quantumState::g, HFLines, t_transition::Hi, hyperfine, t_transition::ipCont, ipH1s, ipH2p, ipH_LIKE, ipHYDROGEN, t_hyperfine::lgLya_pump_21cm, t_transition::Lo, MAX2, OccupationNumberLine(), t_emission::Pdest, t_emission::Pelec_esc, t_emission::Pesc, t_emission::phots, phycon, t_quantumState::Pop, t_emission::PopOpc, t_emission::pump, rfield, SDIV(), sexp(), SMALLFLOAT, StatesElem, T1CM, t_phycon::te, TexcLine(), Transitions, t_hyperfine::Tspin21cm, and t_dense::xIonDense.
Here is the call graph for this function:
| STATIC double h21_t_ge_10 | ( | double | temp | ) |
| STATIC double h21_t_lt_10 | ( | double | temp | ) |
| double H21cm_electron | ( | double | temp | ) |
H21cm_electron computes rate for H 21 cm from upper to lower excitation by electrons >>refer H1 cs Smith, F.J., 1966, Planet. Space Sci 14, 929
| temp |
Definition at line 166 of file atom_hyperfine.cpp.
Here is the call graph for this function:
| double H21cm_H_atom | ( | double | temp | ) |
H21cm_H_atom computes rate for H 21 cm from upper to lower excitation by atomic hydrogen from >>refer H1 cs Allison, A.C. & Dalgarno, A., 1969, ApJ 158, 423
| temp | temperature |
Definition at line 266 of file atom_hyperfine.cpp.
References h21_t_ge_10(), and h21_t_lt_10().
Here is the call graph for this function:
| double H21cm_proton | ( | double | temp | ) |
H21cm_proton - evaluate proton spin changing H atom collision rate, from >>refer 21cm p coll Furlanetto, S.R. & Furlanetto, M.R. 2007, >>refcon MNRAS, doi:10.1111/j.1365-2966.2007.11921.x
| temp | temperature |
Definition at line 283 of file atom_hyperfine.cpp.

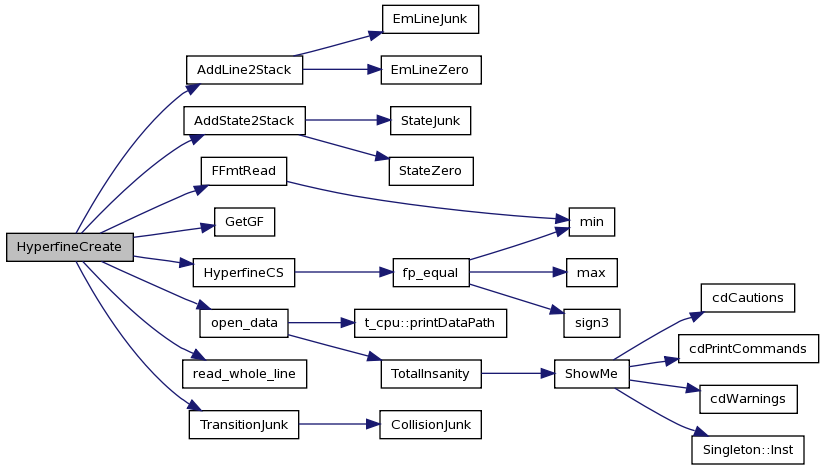

| void HyperfineCreate | ( | void | ) |
HyperfineCreate - read in data files and create space for hyperfine lines, called by atmdat_readin at start of calculation
Definition at line 353 of file atom_hyperfine.cpp.
References AddLine2Stack(), AddState2Stack(), ASSERT, t_emission::Aul, cdEXIT, COLL_CONST, DEBUG_ENTRY, dense, t_dense::eden, t_transition::Emis, t_transition::EnergyWN, FFmtRead(), t_quantumState::g, GetGF(), t_emission::gf, t_hyperfine::HFLabundance, HFLines, t_transition::Hi, hyperfine, HyperfineCS(), INPUT_LINE_LENGTH, t_quantumState::IonStg, ioQQQ, t_trace::lgTrace, t_transition::Lo, MALLOC, N, t_quantumState::nelem, nHFLines, open_data(), phycon, read_whole_line(), t_phycon::sqrte, Strengths, Ion::strengths, t_phycon::te, trace, TransitionJunk(), wavelength, t_transition::WLAng, and t_dense::xIonDense.
Here is the call graph for this function:

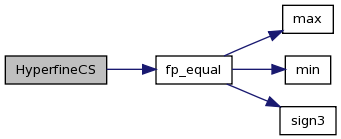

| double HyperfineCS | ( | long | i | ) |
HyperfineCS - returns interpolated collision strength for element nelem and ion ion
| i |
Definition at line 536 of file atom_hyperfine.cpp.
References ASSERT, DEBUG_ENTRY, fp_equal(), N_TE_TABLE, nHFLines, phycon, Strengths, Ion::strengths, and t_phycon::te.
Referenced by HyperfineCreate().
Here is the call graph for this function:
Definition at line 350 of file atom_hyperfine.cpp.
Referenced by HyperfineCreate(), and HyperfineCS().
