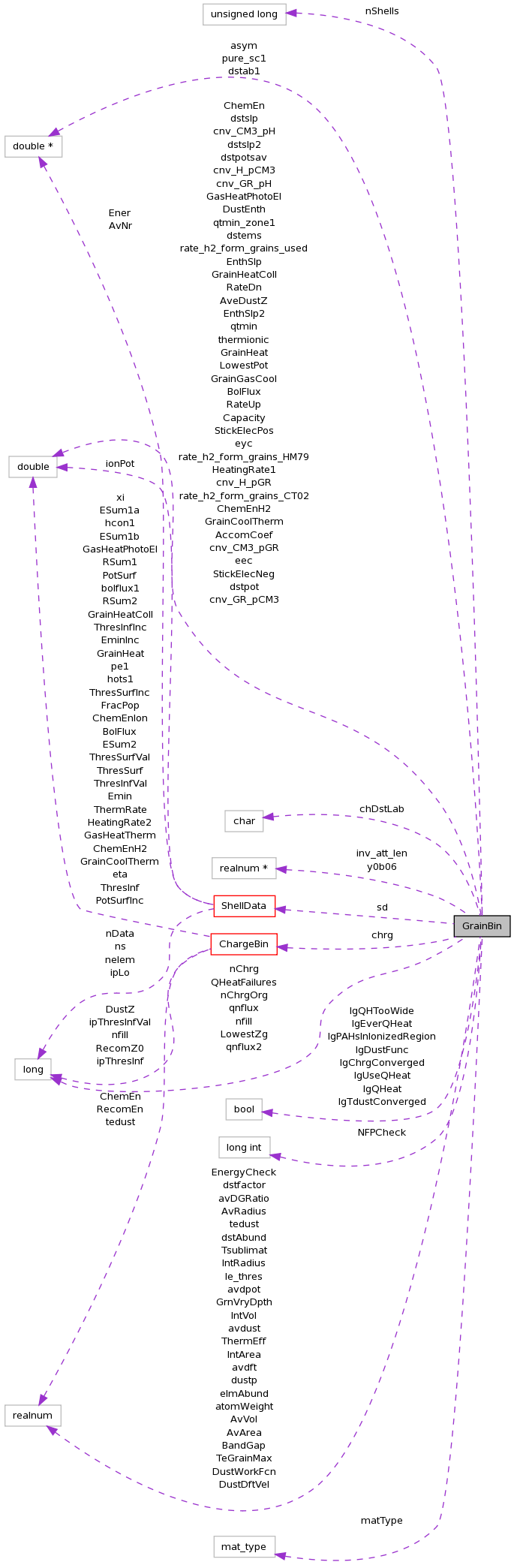

cloudy: GrainBin Struct Reference

heating/cooling balance, all entries are valid for current zone, actual depl, and are in erg/cm^3/s total photon flux absorbed, used for energy conservation test

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive(), and GrainTemperature().

double GrainBin::Capacity

grain capacity, in Farad/grain

Definition at line 312 of file grainvar.h.

Referenced by GrainScreen(), and one_elec().

char GrainBin::chDstLab[13]

general information on the grains label for the species

Definition at line 241 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), GrainCharge(), GrainTemperature(), and qheat().

double GrainBin::ChemEn

net amount of energy donated by recombining ions

Definition at line 327 of file grainvar.h.

Referenced by GrainCollHeating(), and GrainDrive().

double GrainBin::ChemEnH2

net amount of energy donated by H2 formation on grain surface

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive().

ChargeBin* GrainBin::chrg[NCHS]

this holds the charge dependent data

Definition at line 365 of file grainvar.h.

Referenced by GrainCharge(), GrainChrgTransferRates(), GrainCollHeating(), GrainDrive(), GrainElecEmis1(), GrainElecRecomb1(), GrainIonColl(), GrainScreen(), GrainTemperature(), GrainUpdateRadius2(), NewChargeData(), NewGrainBin(), PE_init(), qheat(), qheat_init(), ReturnGrainBins(), UpdatePot(), UpdatePot1(), UpdatePot2(), UpdateRecomZ0(), y0b01(), and Yfunc().

double GrainBin::cnv_CM3_pGR

grain unit conversion, <unit>/cm^3 (actual depl) -> <unit>/grain

Definition at line 273 of file grainvar.h.

Referenced by GrainUpdateRadius1(), and NewGrainBin().

double GrainBin::cnv_CM3_pH

grain unit conversion, <unit>/cm^3 (actual depl) -> <unit>/H (default depl)

Definition at line 273 of file grainvar.h.

Referenced by GrainUpdateRadius1(), and NewGrainBin().

double GrainBin::cnv_GR_pCM3

grain unit conversion, <unit>/grain -> <unit>/cm^3 (actual depl)

Definition at line 273 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), GrainUpdateRadius1(), NewGrainBin(), and RebinQHeatResults().

double GrainBin::cnv_GR_pH

grain unit conversion, <unit>/grain -> <unit>/H (default depl)

Definition at line 273 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), NewGrainBin(), and RebinQHeatResults().

double GrainBin::cnv_H_pCM3

grain unit conversion, <unit>/H (default depl) -> <unit>/cm^3 (actual depl)

Definition at line 273 of file grainvar.h.

Referenced by GrainChrgTransferRates(), GrainUpdateRadius1(), grn_abs(), NewGrainBin(), qheat(), and qheat_init().

double GrainBin::cnv_H_pGR

grain unit conversion, <unit>/H (default depl) -> <unit>/grain

Definition at line 273 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), GrainUpdateRadius1(), InitBinAugerData(), NewGrainBin(), qheat(), and TryDoubleStep().

double* GrainBin::dstab1

[NC_ELL] absorption cross section per grain species, for default depl

Definition at line 286 of file grainvar.h.

Referenced by GrainDrift(), GrainElecEmis1(), GrainMakeDiffuse(), GrainTemperature(), GrainUpdateRadius2(), NewGrainBin(), PE_init(), PlanckIntegral(), qheat_init(), and ReturnGrainBins().

realnum GrainBin::dstAbund

grain abundance in zone, dstfactor*GrainMetal*GrnVryDpth(radius)

Definition at line 269 of file grainvar.h.

Referenced by AbundancesPrt(), GrainMakeDiffuse(), GrainUpdateRadius1(), GrainUpdateRadius2(), and NewGrainBin().

double GrainBin::dstems[NDEMS]

equilibrium temperature grain emissivity at dsttmp[], default depl, normalized per H

Definition at line 291 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), InitEmissivities(), qheat(), RebinQHeatResults(), and TryDoubleStep().

realnum GrainBin::dstfactor

grain depletion, normalization conversion factors grain depletion factor, dep from GRAINS command

Definition at line 269 of file grainvar.h.

Referenced by GrainUpdateRadius1(), and NewGrainBin().

double GrainBin::dstpot

grain potential in Ryd

Definition at line 312 of file grainvar.h.

Referenced by GrainCharge(), GrainDrift(), GrainDrive(), GrainRestartIter(), and GrainStartIter().

double GrainBin::dstpotsav

grain potential at start of iteration

Definition at line 312 of file grainvar.h.

Referenced by GrainRestartIter(), and GrainStartIter().

double GrainBin::dstslp[NDEMS]

auxiliary array for spline interpolation

Definition at line 291 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), InitEmissivities(), and RebinQHeatResults().

double GrainBin::dstslp2[NDEMS]

auxiliary array for inverse spline interpolation

Definition at line 291 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), InitEmissivities(), qheat(), and TryDoubleStep().

realnum GrainBin::DustDftVel

grain drift grain drift velocity for this zone

Definition at line 360 of file grainvar.h.

Referenced by GrainDrift(), GrainDrive(), and NewGrainBin().

double GrainBin::DustEnth[NDEMS]

grain enthalpy at dsttmp[], in Ryd/grain

Definition at line 349 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), InitEnthalpy(), inv_ufunct(), qheat(), and ufunct().

realnum GrainBin::dustp[5]

0 = specific weight (g/cm^3), 1 = mol. weight (amu), 2 = default abundance, 3 = default depletion, 4 = fraction of the mass in this grain bin

Definition at line 245 of file grainvar.h.

Referenced by AbundancesPrt().

realnum GrainBin::DustWorkFcn

work function, in Ryd

Definition at line 245 of file grainvar.h.

Referenced by GetPotValues(), UpdatePot1(), and y0b01().

double GrainBin::eec

pow(dustp[0],-0.85), needed for electron esacpe length

Definition at line 242 of file grainvar.h.

Referenced by elec_esc_length().

realnum GrainBin::elmAbund[LIMELM]

chemical composition, abundance at default depl, see comment below

Definition at line 245 of file grainvar.h.

Referenced by GrainUpdateRadius1(), and InitBinAugerData().

realnum GrainBin::EnergyCheck

grain opacities save highest energy read in for later check

Definition at line 281 of file grainvar.h.

Referenced by NewGrainBin().

double GrainBin::EnthSlp[NDEMS]

auxiliary array for spline interpolation

Definition at line 349 of file grainvar.h.

Referenced by InitEnthalpy(), and ufunct().

double GrainBin::EnthSlp2[NDEMS]

auxiliary array for inverse spline interpolation

Definition at line 349 of file grainvar.h.

Referenced by InitEnthalpy(), and inv_ufunct().

double GrainBin::eyc

1./AvRadius + 1.e7, needed for electron yield

Definition at line 243 of file grainvar.h.

Referenced by Yfunc().

double GrainBin::GasHeatPhotoEl

photoelectric heating of the gas, added in GrGH 0

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive(), GrainTemperature(), and lines_grains().

double GrainBin::GrainCoolTherm

grain cooling due to thermionic emissions, summed over charge states

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive(), GrainTemperature(), and qheat().

double GrainBin::GrainGasCool

gas cooling due to collisions with grains

Definition at line 327 of file grainvar.h.

Referenced by NewGrainBin().

double GrainBin::GrainHeat

total heating of current grain type

Definition at line 327 of file grainvar.h.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), GrainDrive(), NewGrainBin(), qheat(), qheat_init(), and RebinQHeatResults().

double GrainBin::GrainHeatColl

collisional heating of current grain type

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive(), and qheat().

realnum GrainBin::GrnVryDpth

grain abundance scale factor in zone, GrnVryDpth(radius), used by set PAH constant / H0 commands

Definition at line 269 of file grainvar.h.

Referenced by AbundancesPrt(), GrainUpdateRadius1(), and NewGrainBin().

double GrainBin::HeatingRate1

quantum heating due to molecule/ion collisions, erg/H/s, default depl

Definition at line 346 of file grainvar.h.

Referenced by qheat().

realnum GrainBin::IntArea

integrated grain surface area Int(4pi*a^2), normalized per H, in cm^2/H

Definition at line 245 of file grainvar.h.

Referenced by GrainChrgTransferRates(), GrainDrift(), GrainElecEmis1(), and grn_abs().

realnum GrainBin::IntRadius

integrated grain radius Int(a), normalized per H, in cm/H

Definition at line 245 of file grainvar.h.

realnum GrainBin::IntVol

integrated grain volume Int(4/3pi*a^3), normalized per H, in cm^3/H

Definition at line 245 of file grainvar.h.

Referenced by AbundancesPrt().

realnum * GrainBin::inv_att_len

inv_att_len[NC_ELL]: inverse attenuation length (in cm)

Definition at line 321 of file grainvar.h.

Referenced by NewGrainBin(), ReturnGrainBins(), y0psa(), and y1psa().

realnum GrainBin::le_thres

threshold for using X-ray prescription for l_e, in Ryd

Definition at line 321 of file grainvar.h.

Referenced by elec_esc_length(), and NewGrainBin().

bool GrainBin::lgChrgConverged

grain charging, photoelectric effect, thermionic emissions

all charge and energy rates will be calculated by resolving the charge distribution into nChrg integral charge states. To implement this, certain parameters have been moved into the ChargeBin structure, currently limiting the maximum number of charge states the code can handle. For details see: >>refer grain physics van Hoof et al., 2001, ASP Conf. Series 247, p. 353 (astroph/0107183) did grain charge algorithm converge ?

Definition at line 306 of file grainvar.h.

Referenced by GrainCharge().

bool GrainBin::lgDustFunc

grain logic has user requested custom grain abundance function ?

Definition at line 237 of file grainvar.h.

Referenced by GrnVryDpth(), and NewGrainBin().

bool GrainBin::lgEverQHeat

was quantum heating used in any zone ?

Definition at line 338 of file grainvar.h.

Referenced by GrainDrive(), and GrainStartIter().

bool GrainBin::lgPAHsInIonizedRegion

were PAHs present in the ionized region ?

Definition at line 238 of file grainvar.h.

Referenced by GrainChargeTemp(), GrainDrive(), and GrainStartIter().

bool GrainBin::lgQHeat

quantum heating physics is quantum heating turned on ?

Definition at line 338 of file grainvar.h.

Referenced by GrainMakeDiffuse(), NewGrainBin(), qheat(), and qheat_init().

bool GrainBin::lgQHTooWide

is probability distribution too wide to fit in NQGRID array elements ?

Definition at line 338 of file grainvar.h.

Referenced by GrainStartIter(), and qheat().

bool GrainBin::lgTdustConverged

is dust temperature converged ?

Definition at line 295 of file grainvar.h.

bool GrainBin::lgUseQHeat

should quantum heating be used for this zone ?

Definition at line 338 of file grainvar.h.

Referenced by GrainDrive(), and GrainMakeDiffuse().

double GrainBin::LowestPot

lowest potential a grain can ever have, in Ryd

Definition at line 312 of file grainvar.h.

long GrainBin::LowestZg

lowest charge a grain can ever have, in e

Definition at line 307 of file grainvar.h.

Referenced by GetFracPop(), GrainCharge(), GrainElecRecomb1(), GrainIonColl(), and UpdatePot().

mat_type GrainBin::matType

material type, 1 = carbonaceous, 2 = silicate, 3 = PAH, etc...

Definition at line 259 of file grainvar.h.

Referenced by AbundancesPrt(), GetPotValues(), GrainChargeTemp(), GrainMakeDiffuse(), GrnStdDpth(), uderiv(), y0b01(), and Yfunc().

long GrainBin::nChrg

number of charge states used for the current zone

Definition at line 364 of file grainvar.h.

Referenced by GetFracPop(), GrainCharge(), GrainChrgTransferRates(), GrainCollHeating(), GrainDrive(), GrainElecEmis1(), GrainElecRecomb1(), GrainRestartIter(), GrainStartIter(), GrainTemperature(), GrainUpdateRadius2(), NewGrainBin(), PE_init(), qheat(), qheat_init(), and UpdatePot().

long GrainBin::nChrgOrg

number of charge states at the start of the iteration

Definition at line 363 of file grainvar.h.

Referenced by GrainRestartIter(), and GrainStartIter().

long GrainBin::nfill

remember how far the flex_arr's in the ShellData were filled in

Definition at line 309 of file grainvar.h.

Referenced by NewGrainBin(), and UpdatePot().

long int GrainBin::NFPCheck

save number of grid points read for later check

Definition at line 282 of file grainvar.h.

unsigned long GrainBin::nShells

no. of shells in grain, 0 = band, 1 = K shell for first element, etc.

Definition at line 308 of file grainvar.h.

Referenced by InitBinAugerData(), and UpdatePot1().

double * GrainBin::pure_sc1

[NC_ELL] scattering cross section per grain species, for default depl

Definition at line 286 of file grainvar.h.

Referenced by GrainDrift(), GrainUpdateRadius2(), NewGrainBin(), and ReturnGrainBins().

long GrainBin::QHeatFailures

counter for number of times qheat algorithm failed

Definition at line 342 of file grainvar.h.

Referenced by GrainDrive(), and GrainStartIter().

long GrainBin::qnflux

like rfield.nflux, but may point to higher energy, for phiTilde and Phi

Definition at line 342 of file grainvar.h.

Referenced by NewGrainBin(), qheat(), qheat_init(), and TryDoubleStep().

long GrainBin::qnflux2

like rfield.nflux, only for max electron energy, for phiTilde and Phi

Definition at line 342 of file grainvar.h.

Referenced by qheat_init().

double GrainBin::qtmin

lowest grain temperature used in calculations, set per zone

Definition at line 346 of file grainvar.h.

Referenced by GetProbDistr_LowLimit(), GrainStartIter(), and qheat().

double GrainBin::qtmin_zone1

lowest grain temperature used in calculations, initial zone

Definition at line 346 of file grainvar.h.

Referenced by GrainStartIter().

double GrainBin::rate_h2_form_grains_CT02

H2 formation rate, Cazaux & Tielens 02, units S^-1, actual depl

Definition at line 355 of file grainvar.h.

double GrainBin::rate_h2_form_grains_HM79

H2 physics - each has units s-1 H2 formation rate, Hollenbach & McKee 79, units S^-1, actual depl

Definition at line 354 of file grainvar.h.

double GrainBin::rate_h2_form_grains_used

H2 rate actually used, evaluated in hmole.c, units s^-1, actual depl when multiplied with hden, this is formation rate in H2-molecules/cm^3/s

Definition at line 356 of file grainvar.h.

Referenced by NewGrainBin().

double GrainBin::RateDn

total charging rate down, used for balance check, in e/cm^2/s

Definition at line 312 of file grainvar.h.

double GrainBin::RateUp

total charging rate up, used for balance check, in e/cm^2/s

Definition at line 312 of file grainvar.h.

ShellData* GrainBin::sd[NSHL]

specific data for each shell

Definition at line 310 of file grainvar.h.

Referenced by InitBinAugerData(), NewGrainBin(), ReturnGrainBins(), UpdatePot1(), and y0psa().

double GrainBin::StickElecNeg

sticking efficiency for electrons on negative or neutral grains

Definition at line 312 of file grainvar.h.

Referenced by GrainElecRecomb1().

double GrainBin::StickElecPos

sticking efficiency for electrons on positive grains

Definition at line 312 of file grainvar.h.

Referenced by GrainElecRecomb1().

realnum GrainBin::tedust

equilibrium temperature for this zone

Definition at line 296 of file grainvar.h.

Referenced by GetProbDistr_LowLimit(), GrainDrive(), NewGrainBin(), qheat(), UpdatePot2(), and vib_evap().

realnum GrainBin::TeGrainMax

highest equilibrium temperature as a function of radius

Definition at line 296 of file grainvar.h.

Referenced by GrainDrive(), GrainStartIter(), and NewGrainBin().

realnum GrainBin::ThermEff

efficiency of thermionic emission, between 0 and 1

Definition at line 245 of file grainvar.h.

Referenced by UpdatePot2().

double GrainBin::thermionic

heating due to thermionic emission

Definition at line 327 of file grainvar.h.

Referenced by GrainDrive(), and GrainTemperature().

realnum GrainBin::Tsublimat

sublimation temperature

Definition at line 245 of file grainvar.h.

realnum* GrainBin::y0b06

y0b06[NC_ELL]: bulk yield for band according to Eq. 9 of WDB06

Definition at line 311 of file grainvar.h.

Referenced by NewGrainBin(), ReturnGrainBins(), and y0b().

GrainBin Struct Reference

Data Fields

Detailed Description

Field Documentation


Data Fields
bool	lgDustFunc
bool	lgPAHsInIonizedRegion
char	chDstLab [13]
double	eec
double	eyc
realnum	dustp [5]
realnum	AvRadius
realnum	AvArea
realnum	AvVol
realnum	IntRadius
realnum	IntArea
realnum	IntVol
realnum	elmAbund [LIMELM]
realnum	atomWeight
realnum	Tsublimat
realnum	DustWorkFcn
realnum	BandGap
realnum	ThermEff
realnum	avDGRatio
mat_type	matType
realnum	dstfactor
realnum	dstAbund
realnum	GrnVryDpth
double	cnv_H_pGR
double	cnv_H_pCM3
double	cnv_CM3_pGR
double	cnv_CM3_pH
double	cnv_GR_pH
double	cnv_GR_pCM3
realnum	EnergyCheck
long int	NFPCheck
double *	dstab1
double *	pure_sc1
double *	asym
double	dstems [NDEMS]
double	dstslp [NDEMS]
double	dstslp2 [NDEMS]
bool	lgTdustConverged
realnum	tedust
realnum	TeGrainMax
realnum	avdust
bool	lgChrgConverged
long	LowestZg
unsigned long	nShells
long	nfill
ShellData *	sd [NSHL]
realnum *	y0b06
double	AveDustZ
double	Capacity
double	dstpot
double	dstpotsav
double	LowestPot
double	RateUp
double	RateDn
double	StickElecNeg
double	StickElecPos
realnum	avdpot
realnum	le_thres
realnum *	inv_att_len
double	AccomCoef [LIMELM]
double	BolFlux
double	GrainCoolTherm
double	GasHeatPhotoEl
double	GrainHeat
double	GrainHeatColl
double	GrainGasCool
double	ChemEn
double	ChemEnH2
double	thermionic
bool	lgQHeat
bool	lgUseQHeat
bool	lgEverQHeat
bool	lgQHTooWide
long	QHeatFailures
long	qnflux
long	qnflux2
double	qtmin
double	qtmin_zone1
double	HeatingRate1
double	DustEnth [NDEMS]
double	EnthSlp [NDEMS]
double	EnthSlp2 [NDEMS]
double	rate_h2_form_grains_HM79
double	rate_h2_form_grains_CT02
double	rate_h2_form_grains_used
realnum	DustDftVel
realnum	avdft
long	nChrgOrg
long	nChrg
ChargeBin *	chrg [NCHS]
