t_h2 Struct Reference

#include <h2.h>

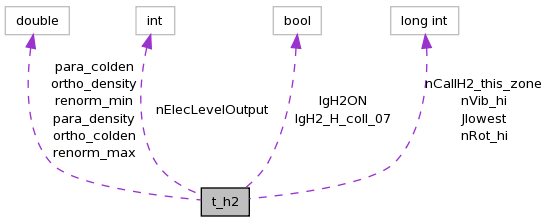

Collaboration diagram for t_h2:


Data Fields
double	ortho_density
double	para_density
double	ortho_colden
double	para_colden
double	renorm_max
double	renorm_min
long int	nCallH2_this_zone
bool	lgH2ON
int	nElecLevelOutput
long int	nVib_hi [N_H2_ELEC]
long int	nRot_hi [N_H2_ELEC][50]
long int	Jlowest [N_H2_ELEC]
bool	lgH2_H_coll_07

Detailed Description

Definition at line 125 of file h2.h.

Field Documentation

long int t_h2::Jlowest[N_H2_ELEC]

this gives the first rotational state for each electronic state - J=0 does not exist when Lambda = 1

Definition at line 162 of file h2.h.

Referenced by H2_Accel(), H2_Colden(), H2_ContPoint(), H2_Cooling(), H2_Create(), H2_gs_rates(), H2_init_coreload(), H2_LevelPops(), H2_LinesAdd(), H2_LineZero(), H2_Prt_line_tau(), H2_Punch_line_data(), H2_PunchDo(), H2_PunchLineStuff(), H2_RadPress(), H2_Read_hminus_distribution(), H2_ReadDissprob(), H2_ReadEnergies(), H2_RT_diffuse(), H2_RT_OTS(), H2_RT_tau_inc(), H2_RT_tau_reset(), H2_RTMake(), H2_Solomon_rate(), H2_zero_pops_too_low(), mole_H2_form(), and mole_H2_LTE().

bool t_h2::lgH2_H_coll_07

Definition at line 165 of file h2.h.

Referenced by H2_CollidRateEvalOne(), H2_CollidRateRead(), InitDefaultsPreparse(), and ParseSet().

bool t_h2::lgH2ON

flag saying whether to bother with the large H2 molecule at all, default is false, set true with atom h2 on command

Definition at line 147 of file h2.h.

Referenced by atmol_popsolve(), cdH2_colden(), ConvTempEdenIoniz(), CoolEvaluate(), H2_Accel(), H2_Colden(), H2_ContPoint(), H2_Cooling(), H2_Create(), H2_itrzn(), H2_LevelPops(), H2_LinesAdd(), H2_LineZero(), H2_Prt_column_density(), H2_Prt_line_tau(), H2_Prt_Zone(), H2_Punch_line_data(), H2_PunchDo(), H2_PunchLineStuff(), H2_RadPress(), H2_RT_diffuse(), H2_RT_OTS(), H2_RT_tau_inc(), H2_RT_tau_reset(), H2_RTMake(), H2_Zero(), hmole_reactions(), lines_molecules(), ParseAtomH2(), punch_line(), and PunchSpecial().

long int t_h2::nCallH2_this_zone

this will say how many times the large H2 molecule has been called in this zone - if not called (due to low H2 abundance) then not need to update its line arrays

Definition at line 143 of file h2.h.

Referenced by H2_Init(), H2_Prt_column_density(), H2_Prt_Zone(), H2_RadPress(), H2_RT_diffuse(), and H2_RT_OTS().

int t_h2::nElecLevelOutput

this is the number of electronic levels to include in the output - default is 1, only X. changed with PRINT LINES H2 ELECTRONIC and option on PUNCH H2 LINES commands

Definition at line 151 of file h2.h.

Referenced by H2_Create(), H2_LinesAdd(), H2_ParsePunch(), InitDefaultsPreparse(), and ParsePrint().

long int t_h2::nRot_hi[N_H2_ELEC][50]

number of rotation levels within each elec - vib

Definition at line 158 of file h2.h.

Referenced by cdH2_colden(), H2_Accel(), H2_Colden(), H2_CollidRateRead(), H2_ContPoint(), H2_Cooling(), H2_Create(), H2_gs_rates(), H2_init_coreload(), H2_LevelPops(), H2_LinesAdd(), H2_LineZero(), H2_Prt_line_tau(), H2_Punch_line_data(), H2_PunchDo(), H2_PunchLineStuff(), H2_RadPress(), H2_Read_hminus_distribution(), H2_ReadDissprob(), H2_ReadEnergies(), H2_ReadTransprob(), H2_RT_diffuse(), H2_RT_OTS(), H2_RT_tau_inc(), H2_RT_tau_reset(), H2_RTMake(), H2_Solomon_rate(), H2_zero_pops_too_low(), mole_H2_form(), and mole_H2_LTE().
