hydrogenic.h File Reference

#include "module.h"

Include dependency graph for hydrogenic.h:

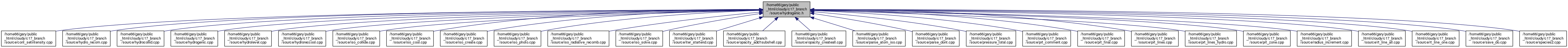

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	t_hydro

Functions
realnum	HydroCSInterp (long int nelem, long int ipHi, long int ipLo, long int Collider)
realnum	GetHlikeCollisionStrength (long nelem, long ipCollider, long nHi, long lHi, long sHi, long gHi, double IP_Ryd_Hi, long nLo, long lLo, long sLo, long gLo, double IP_Ryd_Lo, double Aul, double tauLo, double EnerErg)
void	HydroLevel (long ipISO, long int ipZ)
double	HydroRecCool (long int n, long int ipZ)
double	HCoolRatio (double t)
double	H_cross_section (double EgammaRyd, double EthRyd, long n, long l, long nelem)

Variables
t_hydro	hydro

Detailed Description

this file contains the variables for the model hydrogen ions, and prototypes for the series of routines that drive the atom the EXTERN structure hydro is defined here - all H variables should migrate here

Definition in file hydrogenic.h.

Function Documentation

realnum GetHlikeCollisionStrength	(	long	nelem,
		long	ipCollider,
		long	nHi,
		long	lHi,
		long	sHi,
		long	gHi,
		double	IP_Ryd_Hi,
		long	nLo,
		long	lLo,
		long	sLo,
		long	gLo,
		double	IP_Ryd_Lo,
		double	Aul,
		double	tauLo,
		double	EnerErg
	)

GetHlikeCollisionStrength calculate collision strengths for any transition of H-like iso sequence

Parameters

nelem
ipCollider
nHi
lHi
sHi
gHi
IP_Ryd_Hi
nLo
lLo
sLo
gLo
IP_Ryd_Lo
Aul
tauLo
EnerErg

Definition at line 1095 of file hydrocollid.cpp.

References ASSERT, CS_l_mixing_PS64(), CS_l_mixing_PS64_expI(), CS_l_mixing_VF01(), CS_l_mixing_VOS12(), CS_l_mixing_VOS12QM(), CS_ThermAve_PR78(), DEBUG_ENTRY, fixit, HlikeCSInterp(), hydro_vs_deexcit(), ipELECTRON, ipH_LIKE, ipHYDROGEN, iso_ctrl, iso_sp, t_opac::lgCaseB_HummerStorey, t_isoCTRL::lgColl_excite, t_isoCTRL::lgCS_PS64, t_isoCTRL::lgCS_PSClassic, t_isoCTRL::lgCS_VOS12, t_isoCTRL::lgCS_VOS12QM, t_isoCTRL::lgCS_Vrinceanu, opac, phycon, pow2(), t_phycon::sqrte, and t_phycon::te.

Referenced by HydroCSInterp(), and iso_get_collision_strength_resolved().

Here is the call graph for this function:

double H_cross_section	(	double	EgammaRyd,
		double	EthRyd,
		long	n,
		long	l,
		long	nelem
	)

H_cross_section - get Hydrogenic cross section

Parameters

EgammaRyd
EthRyd
n
l
nelem

Definition at line 16 of file hydro_recom.cpp.

References ASSERT, H_photo_cs(), and MAX2.

Referenced by iso_cross_section().

Here is the call graph for this function:

double HCoolRatio

(

double

t

)

returns the ratio of recombination cooling to recombination coefficient

Parameters

t	the scaled temperature, T * n^2 / Z^2, n is prin quant number, Z is charge, 1 for H

Definition at line 126 of file hydroreccool.cpp.

References DEBUG_ENTRY, MAX2, MIN2, pow(), x1, and x2.

Referenced by HydroRecCool(), and iso_rad_rec_cooling_approx().

Here is the call graph for this function:

realnum HydroCSInterp	(	long int	nelem,
		long int	ipHi,
		long int	ipLo,
		long int	Collider
	)

HydroCSInterp calculate collision strengths for all transitions of h-like iso sequence, all colliders

Parameters

nelem
ipHi
ipLo
Collider

void HydroLevel	(	long	ipISO,
		long int	ipZ
	)

HydroLevel calls iso_level to solve for ionization balance level populations of model hydrogen atom

Parameters

ipZ

Referenced by iso_solve().

double HydroRecCool	(	long int	n,
		long int	ipZ
	)

HydroRecCool hydrogen recombination cooling

Parameters

n
ipZ

Definition at line 10 of file hydroreccool.cpp.

References ASSERT, cdEXIT, DEBUG_ENTRY, EXIT_FAILURE, exp10(), t_iso_sp::fb, fprintf(), HCoolRatio(), ioQQQ, ipH_LIKE, ipRecRad, iso_sp, phycon, POW2, POW3, powi(), t_phycon::sqlogz, t_phycon::te, t_phycon::telogn, and t_phycon::TEMP_LIMIT_HIGH_LOG.

Referenced by iso_rad_rec_cooling_approx(), and SaveDo().

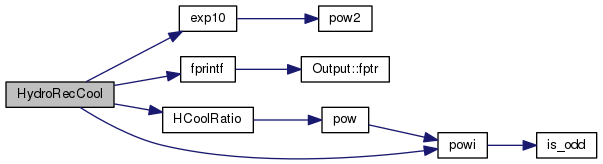

Here is the call graph for this function:

Variable Documentation

t_hydro hydro

Definition at line 5 of file hydrogenic.cpp.

Referenced by ContSetIntensity(), dBase_solve(), IonHydro(), iso_photo(), iso_zero(), IterStart(), lines(), lines_hydro(), OpacityAdd1SubshellInduc(), OpacityAddTotal(), ParseDatabaseISO(), ParseDont(), PresTotCurrent(), PrtComment(), PrtFinal(), PrtHydroTrace1(), PrtZone(), radius_increment(), rayleh(), RT_line_all_escape(), RT_line_pumping(), and setXtraRatesFe2().
