#include <conv.h>

Inheritance diagram for t_conv:

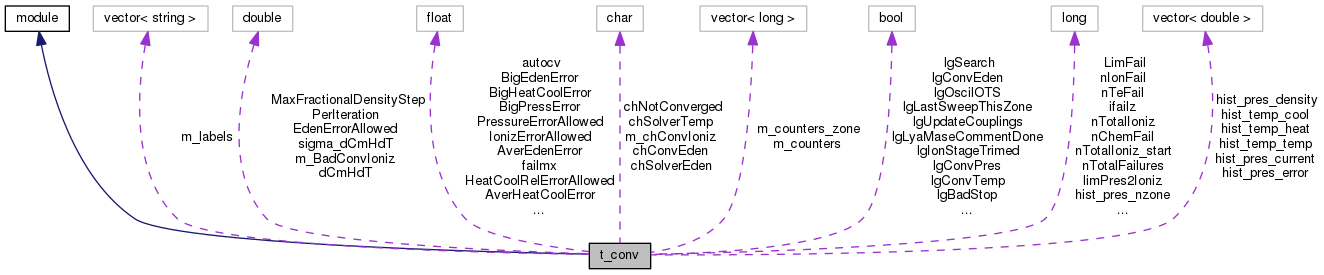

Collaboration diagram for t_conv:

Public Member Functions
const char *	chName () const

void	zero ()

void	comment (t_warnings &)

void	resetConvIoniz ()

void	setConvIonizFail (const char *reason, double oldval, double newval)

bool	lgConvIoniz () const

const char *	chConvIoniz () const

double	convIonizOldVal () const

double	convIonizNewVal () const

size_t	ntypes (void) const

ConvergenceCounter	register_ (const string name)

void	incrementCounter (const size_t type)

void	resetCounters ()

void	resetCountersZone ()

long	getCounter (const long type) const

long	getCounter (const string name) const

long	getCounterZone (const long type) const

const char *	getCounterName (const long type) const

Public Member Functions inherited from module
	module ()

virtual	~module ()

Data Fields
char	chConvEden [INPUT_LINE_LENGTH]

char	chNotConverged [INPUT_LINE_LENGTH]

bool	lgConvPops

long int	nPres2Ioniz

bool	lgFirstSweepThisZone

bool	lgLastSweepThisZone

long int	limPres2Ioniz

long int	nTotalIoniz

long int	nTotalIoniz_start

bool	lgSearch

bool	lgLyaMaseCommentDone

realnum	AverEdenError

realnum	BigHeatCoolError

realnum	AverHeatCoolError

realnum	BigPressError

realnum	AverPressError

bool	lgIonStageTrimed

bool	lgOscilOTS

bool	lgConvTemp

bool	lgConvPres

bool	lgConvEden

long int	nTotalFailures

long int	nTeFail

realnum	failmx

long int	nPreFail

long int	nNeFail

realnum	BigEdenError

long int	nIonFail

long int	nPopFail

long int	nGrainFail

long int	nChemFail

long int	LimFail

bool	lgMap

long int	ifailz [12]

char	chSolverEden [20]

char	chSolverTemp [20]

bool	lgBadStop

bool	lgAutoIt

bool	lgAllTransitions

bool	lgUpdateCouplings

realnum	autocv

double	EdenErrorAllowed

realnum	PressureErrorAllowed

double	MaxFractionalDensityStepPerIteration

realnum	HeatCoolRelErrorAllowed

realnum	IonizErrorAllowed

realnum	GasPhaseAbundErrorAllowed

double	dCmHdT

double	sigma_dCmHdT

vector< double >	hist_pres_density

vector< double >	hist_pres_current

vector< double >	hist_pres_error

long int	hist_pres_nzone

vector< double >	hist_temp_temp

vector< double >	hist_temp_heat

vector< double >	hist_temp_cool

long int	hist_temp_nzone

Private Attributes
char	m_chConvIoniz [INPUT_LINE_LENGTH]

bool	m_lgConvIoniz

double	m_BadConvIoniz [2]

std::vector< long >	m_counters

std::vector< long >	m_counters_zone

std::vector< string >	m_labels

Detailed Description

the variables that deal with the convergence of the model

Definition at line 75 of file conv.h.

Member Function Documentation

const char* t_conv::chConvIoniz ( ) const

inline

Definition at line 112 of file conv.h.

References m_chConvIoniz.

Referenced by ConvBase(), ConvEdenIoniz(), ConvFail(), and ConvIoniz().

const char* t_conv::chName ( ) const

inlinevirtual

Implements module.

Definition at line 77 of file conv.h.

void t_conv::comment ( t_warnings & )

inlinevirtual

Implements module.

Definition at line 82 of file conv.h.

double t_conv::convIonizNewVal ( ) const

inline

Definition at line 120 of file conv.h.

References m_BadConvIoniz.

Referenced by ConvFail(), and ConvIoniz().

double t_conv::convIonizOldVal ( ) const

inline

Definition at line 116 of file conv.h.

References m_BadConvIoniz.

Referenced by ConvFail(), and ConvIoniz().

long t_conv::getCounter ( const long type ) const

inline

Definition at line 327 of file conv.h.

References m_counters.

Referenced by cloudy().

long t_conv::getCounter ( const string name ) const

inline

Definition at line 331 of file conv.h.

References m_counters, and m_labels.

const char* t_conv::getCounterName ( const long type ) const

inline

Definition at line 344 of file conv.h.

References m_labels.

Referenced by SaveDo().

long t_conv::getCounterZone ( const long type ) const

inline

Definition at line 340 of file conv.h.

References m_counters_zone.

Referenced by SaveDo().

void t_conv::incrementCounter ( const size_t type )

inline

Definition at line 312 of file conv.h.

References m_counters, and m_counters_zone.

Referenced by ConvergenceCounter::operator++().

bool t_conv::lgConvIoniz ( ) const

inline

Definition at line 108 of file conv.h.

References m_lgConvIoniz.

Referenced by ConvBase(), ConvFail(), ConvIoniz(), ConvPresTempEdenIoniz(), CoolSave(), EdenError(), iso_renorm(), lgStatesConserved(), TransitionProxy::outline(), RT_OTS_PrtRate(), and SaveHeat().

size_t t_conv::ntypes ( void ) const

inline

Definition at line 307 of file conv.h.

References m_counters.

Referenced by SaveDo().

ConvergenceCounter t_conv::register_ ( const string name )

Definition at line 88 of file conv.cpp.

References cdEXIT, DEBUG_ENTRY, EXIT_FAILURE, fprintf(), ioQQQ, m_counters, m_counters_zone, and m_labels.

Referenced by ConvBase(), ConvPresTempEdenIoniz(), CoolHeatError(), EdenError(), diatomics::H2_LevelPops(), ion_solver(), mole_solve(), and newton_step().

Here is the call graph for this function:

void t_conv::resetConvIoniz ( )

inline

Definition at line 93 of file conv.h.

References INPUT_LINE_LENGTH, m_BadConvIoniz, m_chConvIoniz, and m_lgConvIoniz.

Referenced by ConvBase(), and zero().

void t_conv::resetCounters ( )

inline

Definition at line 317 of file conv.h.

References m_counters.

Referenced by zero().

void t_conv::resetCountersZone ( )

inline

Definition at line 322 of file conv.h.

References m_counters_zone.

Referenced by ZoneStart().

void t_conv::setConvIonizFail	(	const char *	reason,
		double	oldval,
		double	newval
	)

inline

Definition at line 100 of file conv.h.

References INPUT_LINE_LENGTH, m_BadConvIoniz, m_chConvIoniz, and m_lgConvIoniz.

Referenced by check_co_ion_converge(), ConvBase(), GrainChargeTemp(), iso_renorm(), lgConvEden(), lgNetEdenSrcSmall(), lgStatesConserved(), and mole_solve().

void t_conv::zero ( void )

virtual

Implements module.

Definition at line 7 of file conv.cpp.

References autocv, AverEdenError, AverHeatCoolError, AverPressError, BigEdenError, BigHeatCoolError, BigPressError, chConvEden, chNotConverged, chSolverEden, chSolverTemp, dCmHdT, EdenErrorAllowed, failmx, GasPhaseAbundErrorAllowed, HeatCoolRelErrorAllowed, IonizErrorAllowed, lgAllTransitions, lgAutoIt, lgConvEden, lgConvPres, lgConvTemp, lgFirstSweepThisZone, lgLastSweepThisZone, lgLyaMaseCommentDone, lgMap, lgUpdateCouplings, LimFail, limPres2Ioniz, MaxFractionalDensityStepPerIteration, nGrainFail, nIonFail, nNeFail, nPopFail, nPreFail, nPres2Ioniz, nTeFail, nTotalFailures, nTotalIoniz, PressureErrorAllowed, resetConvIoniz(), and resetCounters().

Here is the call graph for this function:

Field Documentation

realnum t_conv::autocv

a convergence criteria

Definition at line 260 of file conv.h.

Referenced by ConvIterCheck(), ParseIterations(), and zero().

realnum t_conv::AverEdenError

remember the average electron density error

Definition at line 173 of file conv.h.

Referenced by ConvInitSolution(), PrtFinal(), radius_increment(), and zero().

realnum t_conv::AverHeatCoolError

Definition at line 177 of file conv.h.

Referenced by ConvInitSolution(), PrtFinal(), radius_increment(), and zero().

realnum t_conv::AverPressError

Definition at line 181 of file conv.h.

Referenced by ConvInitSolution(), PrtFinal(), radius_increment(), and zero().

realnum t_conv::BigEdenError

remember the biggest electron density error as test of convergence quality

Definition at line 215 of file conv.h.

Referenced by ConvInitSolution(), PrtComment(), PrtFinal(), radius_increment(), and zero().

realnum t_conv::BigHeatCoolError

remember the biggest and average heating-cooling error

Definition at line 176 of file conv.h.

Referenced by ConvInitSolution(), PrtFinal(), radius_increment(), and zero().

realnum t_conv::BigPressError

remember the biggest and average pressure error

Definition at line 180 of file conv.h.

Referenced by ConvInitSolution(), PrtFinal(), radius_increment(), and zero().

char t_conv::chConvEden[INPUT_LINE_LENGTH]

this says why the electron density did not converge,

Definition at line 85 of file conv.h.

Referenced by zero().

char t_conv::chNotConverged[INPUT_LINE_LENGTH]

this gives the reason the model was declared not converged when 'iter to convergence' command is given

Definition at line 128 of file conv.h.

Referenced by ConvIterCheck(), PrtComment(), and zero().

char t_conv::chSolverEden[20]

which electron density solver to use? set with set eden solver command, simple and new

Definition at line 240 of file conv.h.

Referenced by ConvEdenIoniz(), ParseSet(), and zero().

char t_conv::chSolverTemp[20]

which temperature density solver to use? set with set eden solver command, default and brent

Definition at line 244 of file conv.h.

Referenced by ConvTempEdenIoniz(), and zero().

double t_conv::dCmHdT

numerical estimate of d(cooling-heating)/dT

Definition at line 286 of file conv.h.

Referenced by ConvTempEdenIoniz(), IterStart(), lgConvTemp(), and zero().

double t_conv::EdenErrorAllowed

this is relative error in the electron density we want set in zero to 0.01 reset with set eden error command

Definition at line 265 of file conv.h.

Referenced by advection_set_default(), ConvBase(), GrainDrive(), GrainsInit(), diatomics::H2_LevelPops(), lgConvEden(), lgStatesConserved(), ParseSet(), PrtComment(), and zero().

realnum t_conv::failmx

failmx is largest relative error in heating cooling match

Definition at line 206 of file conv.h.

Referenced by ConvFail(), IterStart(), PrtComment(), and zero().

realnum t_conv::GasPhaseAbundErrorAllowed

allowed error in total gas-phase density of each element, including molecules change with "SET DENSITY TOLERANCE" command default set in zero

Definition at line 283 of file conv.h.

Referenced by get_total_abundance_ions(), lgElemsConserved(), ParseSet(), GroupMap::setup(), and zero().

realnum t_conv::HeatCoolRelErrorAllowed

allowed error in heating - cooling balance, set with TOLERANCE command default set in zerologic

Definition at line 276 of file conv.h.

Referenced by advection_set_default(), ConvBase(), ConvFail(), CoolHeatError(), GrainsInit(), diatomics::H2_LevelPops(), lgConvTemp(), lgCoolHeatCheckConverge(), ParseSet(), and zero().

vector<double> t_conv::hist_pres_current

Definition at line 293 of file conv.h.

Referenced by ConvPresTempEdenIoniz(), logPressureState(), and SaveDo().

vector<double> t_conv::hist_pres_density

these are used to retain the density pressure history in current zone, can be output with save pressure history

Definition at line 293 of file conv.h.

Referenced by ConvPresTempEdenIoniz(), logPressureState(), and SaveDo().

vector<double> t_conv::hist_pres_error

Definition at line 293 of file conv.h.

Referenced by ConvPresTempEdenIoniz(), logPressureState(), and SaveDo().

long int t_conv::hist_pres_nzone

Definition at line 294 of file conv.h.

Referenced by ConvInitSolution(), and ConvPresTempEdenIoniz().

vector<double> t_conv::hist_temp_cool

Definition at line 298 of file conv.h.

Referenced by CoolHeatError(), and SaveDo().

vector<double> t_conv::hist_temp_heat

Definition at line 298 of file conv.h.

Referenced by CoolHeatError(), and SaveDo().

long int t_conv::hist_temp_nzone

Definition at line 299 of file conv.h.

Referenced by ConvInitSolution(), and CoolHeatError().

vector<double> t_conv::hist_temp_temp

these are used to retain the temp/heat/cooling history in current zone, can be output with save temperature history

Definition at line 298 of file conv.h.

Referenced by CoolHeatError(), and SaveDo().

long int t_conv::ifailz[12]

zones where converge problems occurred

Definition at line 236 of file conv.h.

Referenced by ConvFail(), and PrtComment().

realnum t_conv::IonizErrorAllowed

Definition at line 278 of file conv.h.

Referenced by ConvBase(), diatomics::H2_LevelPops(), iso_renorm(), mole_solve(), ParseSet(), and zero().

bool t_conv::lgAllTransitions

says "iterate to convergence all" command given

Definition at line 254 of file conv.h.

Referenced by ConvIterCheck(), ParseIterations(), and zero().

bool t_conv::lgAutoIt

says "iterate to convergence" command given

Definition at line 251 of file conv.h.

Referenced by ConvIterCheck(), ParseCommands(), ParseIterations(), PrtComment(), and zero().

bool t_conv::lgBadStop

flag saying that calculation stopped for bad reason mostly set in lgEndfun

Definition at line 248 of file conv.h.

Referenced by iter_end_check(), PrtComment(), and PrtFinal().

bool t_conv::lgConvEden

true when the electron density has converged

Definition at line 197 of file conv.h.

Referenced by ConvEdenIoniz(), ConvPresTempEdenIoniz(), CoolSave(), lgConvEden(), TransitionProxy::outline(), SaveHeat(), and zero().

bool t_conv::lgConvPops

this flag is used in ConvPresTempEdenIoniz to check that populations have converged

Definition at line 136 of file conv.h.

Referenced by ConvFail(), ConvPresTempEdenIoniz(), diatomics::H2_LevelPops(), and TransitionProxy::outline().

bool t_conv::lgConvPres

true if pressure is converged, false if not

Definition at line 194 of file conv.h.

Referenced by ConvPresTempEdenIoniz(), CoolSave(), TransitionProxy::outline(), PressureChange(), SaveDo(), SaveHeat(), and zero().

bool t_conv::lgConvTemp

true if temperature is converged, false if not

Definition at line 191 of file conv.h.

Referenced by ConvFail(), ConvPresTempEdenIoniz(), ConvTempEdenIoniz(), CoolSave(), lgConvTemp(), TransitionProxy::outline(), SaveDo(), SaveHeat(), and zero().

bool t_conv::lgFirstSweepThisZone

first sweep through solvers in this zone. also true is search phase

Definition at line 148 of file conv.h.

Referenced by ConvBase(), ConvInitSolution(), ConvPresTempEdenIoniz(), RT_line_all(), RT_line_all_escape(), RT_line_escape(), RT_line_pumping(), RT_tau_inc(), RT_tau_init(), UpdateUTAs(), and zero().

bool t_conv::lgIonStageTrimed

flag set in ConvBase, saying whether ionization stage is trimmed down

Definition at line 184 of file conv.h.

Referenced by ConvBase(), ion_trim(), ion_trim2(), and RT_line_all_escape().

bool t_conv::lgLastSweepThisZone

last sweep through solvers in this zone, so update fine opacities

Definition at line 150 of file conv.h.

Referenced by ConvInitSolution(), ConvPresTempEdenIoniz(), RT_line_all(), RT_line_all_escape(), RT_line_fine_opacity(), RT_tau_inc(), and zero().

bool t_conv::lgLyaMaseCommentDone

Definition at line 170 of file conv.h.

Referenced by H21_cm_pops(), and zero().

bool t_conv::lgMap

lgMap is option to map failures

Definition at line 233 of file conv.h.

Referenced by ConvFail(), ParseFail(), and zero().

bool t_conv::lgOscilOTS

this is true if ots rates are oscillating, and this is why ionization is not converged

Definition at line 188 of file conv.h.

Referenced by ConvBase(), ConvInitSolution(), ConvIoniz(), and RT_tau_init().

bool t_conv::lgSearch

conv.lgSearch is true during initial temp-ion search phase, false after first zone established

Definition at line 168 of file conv.h.

Referenced by ConvBase(), ConvEdenIoniz(), ConvInitSolution(), ConvIoniz(), CoolEvaluate(), dBase_solve(), EdenChange(), GrainCharge(), GrainChargeTemp(), GrainDrive(), H21_cm_pops(), diatomics::H2_Cooling(), diatomics::H2_LevelPops(), HeatSum(), ion_trim(), ion_trim2(), ion_trim_validate(), iso_level(), iter_end_check(), lgNetEdenSrcSmall(), map_do(), MyAssert(), OpacityAddTotal(), Atom_LevelN::operator()(), PresTotCurrent(), and renorm_solution().

bool t_conv::lgUpdateCouplings

says update inter-couplings after every ion solution

Definition at line 257 of file conv.h.

Referenced by ConvBase(), ParseSet(), and zero().

long int t_conv::LimFail

LimFail is limit to number of te failures, set with "failures" cmnd

Definition at line 230 of file conv.h.

Referenced by ConvFail(), grid_do(), ParseFail(), and zero().

long int t_conv::limPres2Ioniz

a limit to the above, in case where one zone takes forever to not converge, usually very large, set with SET PRESIONIZ command

Definition at line 154 of file conv.h.

Referenced by ConvBase(), ParseSet(), and zero().

double t_conv::m_BadConvIoniz[2]

private

when the lgConvIoniz flag is set false, the old and new numbers, the reason for the lack of convergence, should be set to following

Definition at line 141 of file conv.h.

Referenced by convIonizNewVal(), convIonizOldVal(), resetConvIoniz(), and setConvIonizFail().

char t_conv::m_chConvIoniz[INPUT_LINE_LENGTH]

private

this says why the ionization did not converge, reasons can be a large change in the level of ionization, or in the heating

Definition at line 90 of file conv.h.

Referenced by chConvIoniz(), resetConvIoniz(), and setConvIonizFail().

std::vector<long> t_conv::m_counters

private

Definition at line 303 of file conv.h.

Referenced by getCounter(), incrementCounter(), ntypes(), register_(), and resetCounters().

std::vector<long> t_conv::m_counters_zone

private

Definition at line 304 of file conv.h.

Referenced by getCounterZone(), incrementCounter(), register_(), and resetCountersZone().

std::vector<string> t_conv::m_labels

private

Definition at line 305 of file conv.h.

Referenced by getCounter(), getCounterName(), and register_().

bool t_conv::m_lgConvIoniz

private

this flag is used in ConvPresTempEdenIoniz to check that ionization has converged

Definition at line 132 of file conv.h.

Referenced by lgConvIoniz(), resetConvIoniz(), and setConvIonizFail().

double t_conv::MaxFractionalDensityStepPerIteration

Definition at line 272 of file conv.h.

Referenced by ConvPresTempEdenIoniz(), limitedDensityScaling(), and zero().

long int t_conv::nChemFail

number of chemistry solution failures

Definition at line 227 of file conv.h.

Referenced by IterStart().

long int t_conv::nGrainFail

number of grain ionization balance failures

Definition at line 224 of file conv.h.

Referenced by ConvFail(), IterStart(), and zero().

long int t_conv::nIonFail

nIonFail is number of ionization failures

Definition at line 218 of file conv.h.

Referenced by cdNwcns(), ConvFail(), IterStart(), and zero().

long int t_conv::nNeFail

nNeFail is number of electron density failures

Definition at line 212 of file conv.h.

Referenced by cdNwcns(), ConvFail(), IterStart(), and zero().

long int t_conv::nPopFail

nIonFail is number of level population failures

Definition at line 221 of file conv.h.

Referenced by ConvFail(), IterStart(), and zero().

long int t_conv::nPreFail

nPreFail is number of pressure failures

Definition at line 209 of file conv.h.

Referenced by cdNwcns(), ConvFail(), IterStart(), and zero().

long int t_conv::nPres2Ioniz

this will count the number of ionizations in one call from ConvPresTempEdenIoniz

Definition at line 145 of file conv.h.

Referenced by ConvBase(), ConvInitSolution(), ConvPresTempEdenIoniz(), CoolEvaluate(), ion_photo(), iso_update_rates(), mole_h_reactions(), OpacityAddTotal(), PrtZone(), RT_line_all(), SaveDo(), and zero().

long int t_conv::nTeFail

nTeFail number of temperature failures

Definition at line 203 of file conv.h.

Referenced by cdNwcns(), ConvFail(), IterStart(), PrtComment(), ShowMe(), and zero().

long int t_conv::nTotalFailures

total number of all falures, used to trigger abort

Definition at line 200 of file conv.h.

Referenced by ConvFail(), IterStart(), and zero().

long int t_conv::nTotalIoniz

counts the number of calls to conv base after iteration starts can be used to determine very first pass through an iteration reset to zero at start of each iteration in a simulation

Definition at line 159 of file conv.h.

Referenced by ChargTranEval(), ConvBase(), ConvInitSolution(), dBaseAbund(), dBaseTrim(), EdenChange(), find_solution(), diatomics::H2_LevelPops(), HomogeneousSource(), ion_trim(), IonHelium(), iso_collapsed_update(), iso_collide(), iso_continuum_lower(), iso_ionize_recombine(), iso_level(), iso_rad_rec_cooling_discrete(), iso_radiative_recomb(), iso_update_rates(), iter_end_check(), lgCheckMonitors(), map_do(), mole_h_reactions(), PresTotCurrent(), PrtFinal(), RT_DestProb(), tauff(), TempChange(), and zero().
