cloudy: /home66/gary/public_html/cloudy/c08_branch/source/grains

#define NO_ATOMS ( ND ) (gv.bin[ND]->AvVol*gv.bin[ND]->dustp[0]/ATOMIC_MASS_UNIT/gv.bin[ND]->atomWeight)

Definition at line 17 of file grains_qheat.cpp.

Referenced by uderiv().

enum QH_Code

Enumerator:

QH_OK
QH_ANALYTIC
QH_ANALYTIC_RELAX
QH_DELTA
QH_NEGRATE_FAIL
QH_LOOP_FAIL
QH_ARRAY_FAIL
QH_THIGH_FAIL
QH_RETRY
QH_CONV_FAIL
QH_BOUND_FAIL
QH_DELTA_FAIL
QH_NO_REBIN
QH_LOW_FAIL
QH_HIGH_FAIL
QH_STEP_FAIL
QH_FATAL
QH_WIDE_FAIL
QH_NBIN_FAIL
QH_REBIN_FAIL

Definition at line 24 of file grains_qheat.cpp.

STATIC double DebyeDeriv	(	double	,
		long
	)

Definition at line 2571 of file grains_qheat.cpp.

References ASSERT, DEBUG_ENTRY, gauss_init(), gauss_legendre(), MALLOC, MAX2, POW2, POW3, powi(), and TotalInsanity().

Referenced by uderiv().

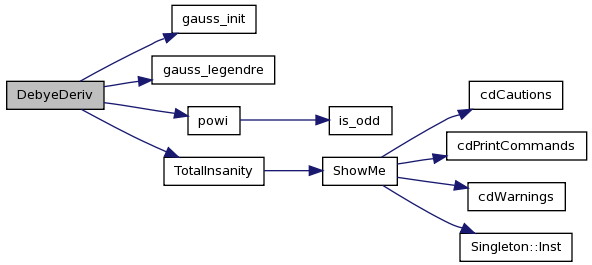

Here is the call graph for this function:

STATIC void GetProbDistr_HighLimit	(	long	,
		double	,
		double	,
		double	,
		double	[],
		double	[],
		double	[],
		double *	,
		long *	,
		double *	,
		QH_Code *
	)

Definition at line 2161 of file grains_qheat.cpp.

References t_gv::bin, GrainBin::chDstLab, GrainBin::cnv_GR_pCM3, GrainBin::cnv_GR_pH, GrainBin::cnv_H_pGR, DEBUG_ENTRY, GrainBin::dstems, GrainBin::dstslp, GrainBin::dstslp2, t_gv::dsttmp, GrainBin::DustEnth, EN1RYD, GrainBin::GrainHeat, gv, inv_ufunct(), ioQQQ, t_trace::lgDustBug, t_trace::lgTrace, LN_TWO, log_integral(), MAX2, MIN2, NDEMS, NQGRID, NQMIN, nzone, PI, POW2, PROB_CUTOFF_HI, PROB_TOL, QH_ANALYTIC, QH_ANALYTIC_RELAX, QH_BOUND_FAIL, QH_CONV_FAIL, QH_THIGH_FAIL, QH_WIDE_FAIL, QT_RATIO, SAFETY, splint_safe(), STRICT, trace, uderiv(), and ufunct().

Referenced by qheat().

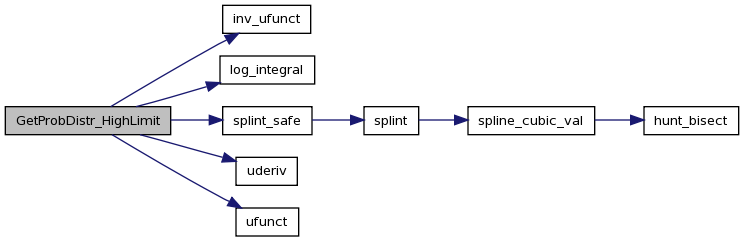

Here is the call graph for this function:

STATIC void GetProbDistr_LowLimit	(	long int	nd,
		double	rel_tol,
		double	Umax,
		double	fwhm,
		double	Phi[],
		double	PhiDrv[],
		double	qtemp[],
		double	qprob[],
		double	dPdlnT[],
		long int *	qnbin,
		double *	new_tmin,
		long *	nWideFail,
		QH_Code *	ErrorCode
	)

Definition at line 1224 of file grains_qheat.cpp.

References ASSERT, t_gv::bin, GrainBin::chDstLab, GrainBin::cnv_GR_pCM3, GrainBin::cnv_H_pGR, DEBUG_ENTRY, DEF_FAC, GrainBin::dstems, GrainBin::dstslp2, t_gv::dsttmp, EN1RYD, GRAIN_TMIN, GrainBin::GrainHeat, gv, ioQQQ, t_trace::lgDustBug, t_trace::lgTrace, LN_TWO, MAX2, MAX3, MAX_LOOP, MIN2, t_gv::nBin, NDEMS, NQGRID, NQMIN, NQTEST, NSTARTUP, nzone, POW3, PROB_CUTOFF_HI, PROB_CUTOFF_LO, PROB_TOL, QH_ARRAY_FAIL, QH_BOUND_FAIL, QH_CONV_FAIL, QH_DELTA_FAIL, QH_HIGH_FAIL, QH_LOOP_FAIL, QH_LOW_FAIL, QH_NBIN_FAIL, QH_NO_REBIN, QH_STEP_FAIL, QH_THIGH_FAIL, QH_WIDE_FAIL, QHEAT_TOL, GrainBin::qtmin, RebinQHeatResults(), SAFETY, ScanProbDistr(), spldrv_safe(), splint_safe(), GrainBin::tedust, trace, TryDoubleStep(), uderiv(), ufunct(), and WIDE_FAIL_MAX.

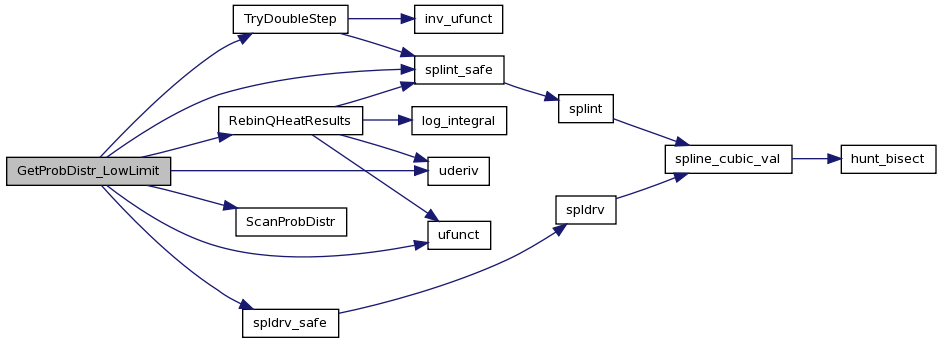

Here is the call graph for this function:

STATIC void GetProbDistr_LowLimit	(	long	,
		double	,
		double	,
		double	,
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		long *	,
		double *	,
		long *	,
		QH_Code *
	)

Referenced by qheat().

void GrainMakeDiffuse ( void )

main routine for generating the grain diffuse emission

Definition at line 165 of file grains_qheat.cpp.

References t_rfield::anu, t_rfield::anu2, ASSERT, t_gv::bin, cdEXIT, DEBUG_ENTRY, dense, GrainBin::dstab1, GrainBin::dstAbund, t_gv::dstAbundThresholdFar, t_gv::dstAbundThresholdNear, FR1RYD, t_gv::GrainEmission, t_gv::GraphiteEmission, gv, t_hmi::H2_total, hmi, ioQQQ, ipHYDROGEN, GrainBin::lgQHeat, GrainBin::lgUseQHeat, MALLOC, GrainBin::matType, t_gv::nBin, t_rfield::nflux, NQGRID, PI4, POW2, qheat(), rfield, t_gv::SilicateEmission, SPEEDLIGHT, STRG_CAR, STRG_SIL, TE1RYD, t_gv::which_strg, t_rfield::widflx, and t_dense::xIonDense.

Here is the call graph for this function:

void InitEnthalpy ( void )

initialize interpolation arrays for grain enthalpy

Definition at line 2505 of file grains_qheat.cpp.

References t_gv::bin, DEBUG_ENTRY, t_gv::dsttmp, GrainBin::DustEnth, GrainBin::EnthSlp, GrainBin::EnthSlp2, GRAIN_TMIN, gv, log_integral(), t_gv::nBin, NDEMS, spline(), tlim, and uderiv().

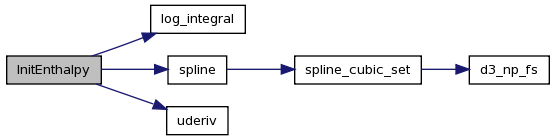

Here is the call graph for this function:

STATIC double inv_ufunct	(	double	enthalpy,
		long int	nd,
		bool *	lgBoundErr
	)

Definition at line 2479 of file grains_qheat.cpp.

References ASSERT, t_gv::bin, cdEXIT, DEBUG_ENTRY, t_gv::dsttmp, GrainBin::DustEnth, GrainBin::EnthSlp2, gv, ioQQQ, t_gv::nBin, NDEMS, and splint_safe().

Here is the call graph for this function:

STATIC double inv_ufunct	(	double	,
		long	,
		bool *
	)

Referenced by GetProbDistr_HighLimit(), qheat(), and TryDoubleStep().

STATIC double log_integral	(	double	,
		double	,
		double	,
		double
	)

Definition at line 1798 of file grains_qheat.cpp.

References ASSERT, and DEBUG_ENTRY.

Referenced by GetProbDistr_HighLimit(), InitEnthalpy(), and RebinQHeatResults().

void qheat	(	double	qtemp[],
		double	qprob[],
		long int *	qnbin,
		long int	nd
	)

Definition at line 459 of file grains_qheat.cpp.

References t_rfield::anu, ASSERT, t_gv::bin, GrainBin::chDstLab, GrainBin::chrg, GrainBin::cnv_H_pCM3, GrainBin::cnv_H_pGR, CONSERV_TOL, DEBUG_ENTRY, DEF_FAC, GrainBin::dstems, GrainBin::dstslp2, t_gv::dsttmp, GrainBin::DustEnth, EN1RYD, ChargeBin::FracPop, FWHM_RATIO, FWHM_RATIO2, GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), GRAIN_TMIN, GrainBin::GrainCoolTherm, GrainBin::GrainHeat, GrainBin::GrainHeatColl, gv, GrainBin::HeatingRate1, ChargeBin::HeatingRate2, inv_ufunct(), ioQQQ, t_trace::lgDustBug, GrainBin::lgQHeat, GrainBin::lgQHTooWide, t_trace::lgTrace, LN_TWO, LOOP_MAX, MALLOC, MAX2, MAX_EVENTS, MIN2, t_gv::nBin, GrainBin::nChrg, NDEMS, NQGRID, t_rfield::nupper, POW2, PROB_CUTOFF_LO, QH_ANALYTIC, QH_CONV_FAIL, QH_DELTA, QH_DELTA_FAIL, QH_FATAL, QH_HIGH_FAIL, QH_LOW_FAIL, QH_NEGRATE_FAIL, QH_NO_REBIN, QH_OK, QH_RETRY, QH_WIDE_FAIL, qheat_init(), GrainBin::qnflux, GrainBin::qtmin, rfield, spldrv_safe(), STRICT, GrainBin::tedust, TorF(), trace, uderiv(), ufunct(), WIDE_FAIL_MAX, and t_rfield::widflx.

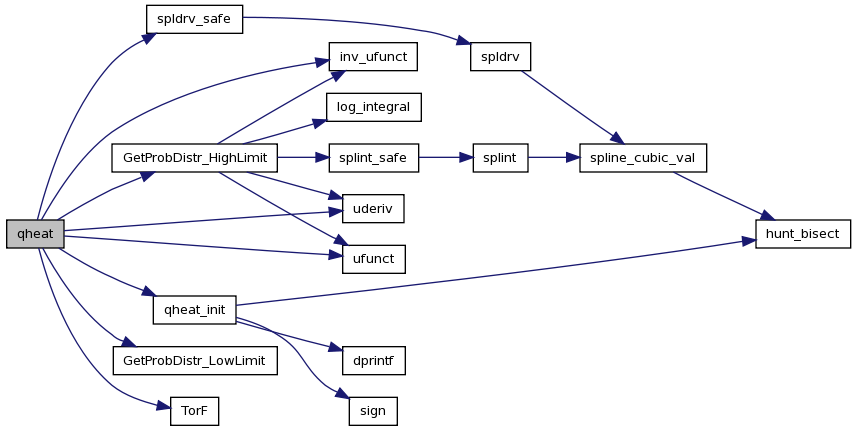

Here is the call graph for this function:

STATIC void qheat_init	(	long	,
		double	[],
		double *
	)

Definition at line 884 of file grains_qheat.cpp.

References t_rfield::anu, t_gv::anumax, t_gv::anumin, ASSERT, t_gv::bin, BOLTZMANN, GrainBin::chrg, GrainBin::cnv_H_pCM3, CONSERV_TOL, DEBUG_ENTRY, dprintf(), GrainBin::dstab1, ChargeBin::DustZ, ChargeBin::ehat, Ehi, EN1RYD, ChargeBin::fac1, ChargeBin::FracPop, GrainBin::GrainHeat, gv, ChargeBin::HeatingRate2, hunt_bisect(), ioQQQ, ChargeBin::ipThresInf, ChargeBin::ipThresInfVal, GrainBin::lgQHeat, t_gv::lgWD01, MALLOC, MAX2, MIN2, t_gv::nBin, GrainBin::nChrg, t_rfield::nflux, phycon, ChargeBin::PotSurf, ChargeBin::PotSurfInc, GrainBin::qnflux, GrainBin::qnflux2, rfield, sign(), t_rfield::SummedCon, t_phycon::te, ChargeBin::ThresInfInc, ChargeBin::ThresSurf, ChargeBin::ThresSurfVal, t_rfield::widflx, ChargeBin::yhat, and ChargeBin::yhat_primary.

Referenced by qheat().

Here is the call graph for this function:

STATIC long RebinQHeatResults	(	long	,
		long	,
		long	,
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		QH_Code *
	)

Definition at line 1933 of file grains_qheat.cpp.

References ASSERT, t_gv::bin, GrainBin::cnv_GR_pCM3, GrainBin::cnv_GR_pH, CONSERV_TOL, DEBUG_ENTRY, GrainBin::dstems, GrainBin::dstslp, t_gv::dsttmp, EN1RYD, GrainBin::GrainHeat, gv, ioQQQ, t_trace::lgDustBug, t_trace::lgTrace, log_integral(), MALLOC, MAX2, MIN2, t_gv::nBin, NDEMS, NQGRID, NQMIN, PROB_CUTOFF_LO, QH_CONV_FAIL, QH_REBIN_FAIL, QT_RATIO, SAFETY, splint_safe(), trace, uderiv(), and ufunct().

Referenced by GetProbDistr_LowLimit().

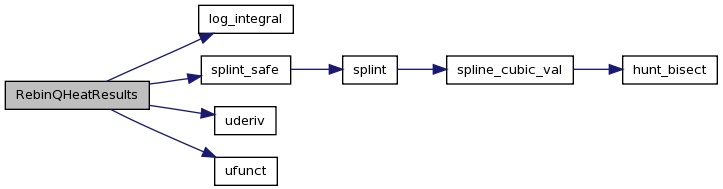

Here is the call graph for this function:

STATIC void ScanProbDistr	(	double	[],
		double	[],
		long	,
		double	,
		long	,
		double	,
		long *	,
		long *	,
		long *	,
		long *	,
		QH_Code *
	)

Definition at line 1827 of file grains_qheat.cpp.

References ASSERT, DEBUG_ENTRY, GRAIN_TMIN, ioQQQ, t_trace::lgDustBug, t_trace::lgTrace, MAX2, NQMIN, QH_HIGH_FAIL, QH_LOW_FAIL, QH_NBIN_FAIL, QH_NO_REBIN, QH_WIDE_FAIL, trace, and WIDE_FAIL_MAX.

Referenced by GetProbDistr_LowLimit().

STATIC double TryDoubleStep	(	double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		double	[],
		double	,
		double *	,
		long	,
		long	,
		bool *
	)

Definition at line 1625 of file grains_qheat.cpp.

References t_rfield::anu, ASSERT, t_gv::bin, GrainBin::cnv_H_pGR, DEBUG_ENTRY, GrainBin::dstems, GrainBin::dstslp2, t_gv::dsttmp, EN1RYD, gv, inv_ufunct(), MAX2, NDEMS, PROB_CUTOFF_LO, GrainBin::qnflux, rfield, and splint_safe().

Referenced by GetProbDistr_LowLimit().

Here is the call graph for this function:

STATIC double uderiv	(	double	temp,
		long int	nd
	)

Definition at line 2335 of file grains_qheat.cpp.

References ASSERT, t_gv::bin, BOLTZMANN, cdEXIT, cval, DEBUG_ENTRY, DebyeDeriv(), EN1RYD, ENTH_CAR, ENTH_CAR2, ENTH_PAH, ENTH_PAH2, ENTH_SIL, ENTH_SIL2, gv, ioQQQ, GrainBin::matType, MAX2, MIN2, t_gv::nBin, NO_ATOMS, POW2, ppower, tlim, and t_gv::which_enth.

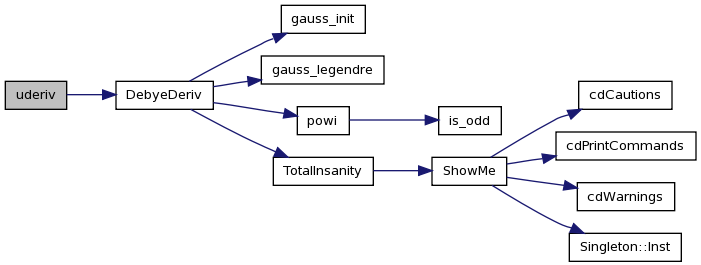

Here is the call graph for this function:

STATIC double uderiv	(	double	,
		long
	)

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), InitEnthalpy(), qheat(), and RebinQHeatResults().

STATIC double ufunct	(	double	temp,
		long int	nd,
		bool *	lgBoundErr
	)

Definition at line 2453 of file grains_qheat.cpp.

References ASSERT, t_gv::bin, cdEXIT, DEBUG_ENTRY, t_gv::dsttmp, GrainBin::DustEnth, GrainBin::EnthSlp, gv, ioQQQ, t_gv::nBin, NDEMS, and splint_safe().

Here is the call graph for this function:

STATIC double ufunct	(	double	,
		long	,
		bool *
	)

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), qheat(), and RebinQHeatResults().

const double cval[4] [static]

Initial value:

{
        1.40e3/DEN_SIL*ATOMIC_MASS_UNIT*MW_SIL/EN1RYD,
        2.20e4/DEN_SIL*ATOMIC_MASS_UNIT*MW_SIL/EN1RYD,
        4.80e5/DEN_SIL*ATOMIC_MASS_UNIT*MW_SIL/EN1RYD,
        3.41e7/DEN_SIL*ATOMIC_MASS_UNIT*MW_SIL/EN1RYD}

Definition at line 123 of file grains_qheat.cpp.

Referenced by uderiv().

const double DEF_FAC = 3. [static]

Definition at line 66 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit(), and qheat().

const double DEN_SIL = 3.30 [static]

Definition at line 115 of file grains_qheat.cpp.

const double FWHM_RATIO = 0.1 [static]

Definition at line 77 of file grains_qheat.cpp.

Referenced by qheat().

const double FWHM_RATIO2 = 0.007 [static]

Definition at line 80 of file grains_qheat.cpp.

Referenced by qheat().

const long LOOP_MAX = 20L [static]

Definition at line 63 of file grains_qheat.cpp.

Referenced by cnewton(), lgCoolNetConverge(), and qheat().

const double MAX_EVENTS = 150. [static]

Definition at line 59 of file grains_qheat.cpp.

Referenced by qheat().

const long MAX_LOOP = 2*NQGRID [static]

Definition at line 83 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit().

const double MW_SIL = 24.6051 [static]

Definition at line 118 of file grains_qheat.cpp.

const long NQMIN = 10L [static]

Definition at line 47 of file grains_qheat.cpp.

Referenced by GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), RebinQHeatResults(), and ScanProbDistr().

const long NQTEST = 500L [static]

Definition at line 73 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit().

const long NSTARTUP = 5L [static]

Definition at line 55 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit().

const double ppower[4] = {2.00,1.30,0.68,0.00} [static]

Definition at line 122 of file grains_qheat.cpp.

Referenced by uderiv().

const double PROB_CUTOFF_HI = 1.e-20 [static]

Definition at line 51 of file grains_qheat.cpp.

Referenced by GetProbDistr_HighLimit(), and GetProbDistr_LowLimit().

const double PROB_CUTOFF_LO = 1.e-15 [static]

Definition at line 50 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit(), qheat(), RebinQHeatResults(), and TryDoubleStep().

const double PROB_TOL = 0.02 [static]

Definition at line 69 of file grains_qheat.cpp.

Referenced by GetProbDistr_HighLimit(), and GetProbDistr_LowLimit().

const double QHEAT_TOL = 5.e-3 [static]

Definition at line 86 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit().

const double QT_RATIO = 1.03 [static]

Definition at line 100 of file grains_qheat.cpp.

Referenced by GetProbDistr_HighLimit(), and RebinQHeatResults().

const double RELAX = 15. [static]

Definition at line 93 of file grains_qheat.cpp.

const double SAFETY = 1.e+8 [static]

Definition at line 52 of file grains_qheat.cpp.

Referenced by gauss_legendre(), GetProbDistr_HighLimit(), GetProbDistr_LowLimit(), RebinQHeatResults(), spldrv_safe(), and splint_safe().

const double STRICT = 1. [static]

Definition at line 92 of file grains_qheat.cpp.

Referenced by GetProbDistr_HighLimit(), and qheat().

const double tlim[5] = {0.,50.,150.,500.,DBL_MAX} [static]

Definition at line 121 of file grains_qheat.cpp.

Referenced by InitEnthalpy(), and uderiv().

const long WIDE_FAIL_MAX = 3 [static]

Definition at line 89 of file grains_qheat.cpp.

Referenced by GetProbDistr_LowLimit(), qheat(), and ScanProbDistr().


Defines
#define	NO_ATOMS(ND) (gv.bin[ND]->AvVol*gv.bin[ND]->dustp[0]/ATOMIC_MASS_UNIT/gv.bin[ND]->atomWeight)
Enumerations
enum	QH_Code { QH_OK, QH_ANALYTIC, QH_ANALYTIC_RELAX, QH_DELTA, QH_NEGRATE_FAIL, QH_LOOP_FAIL, QH_ARRAY_FAIL, QH_THIGH_FAIL, QH_RETRY, QH_CONV_FAIL, QH_BOUND_FAIL, QH_DELTA_FAIL, QH_NO_REBIN, QH_LOW_FAIL, QH_HIGH_FAIL, QH_STEP_FAIL, QH_FATAL, QH_WIDE_FAIL, QH_NBIN_FAIL, QH_REBIN_FAIL }
Functions
STATIC void	qheat_init (long, double[], double *)
STATIC void	GetProbDistr_LowLimit (long, double, double, double, double[], double[], double[], double[], double[], long , double , long , QH_Code )
STATIC double	TryDoubleStep (double[], double[], double[], double[], double[], double[], double[], double, double , long, long, bool )
STATIC double	log_integral (double, double, double, double)
STATIC void	ScanProbDistr (double[], double[], long, double, long, double, long , long , long , long , QH_Code *)
STATIC long	RebinQHeatResults (long, long, long, double[], double[], double[], double[], double[], double[], double[], QH_Code *)
STATIC void	GetProbDistr_HighLimit (long, double, double, double, double[], double[], double[], double , long , double , QH_Code )
STATIC double	uderiv (double, long)
STATIC double	ufunct (double, long, bool *)
STATIC double	inv_ufunct (double, long, bool *)
STATIC double	DebyeDeriv (double, long)
void	GrainMakeDiffuse (void)
void	qheat (double qtemp[], double qprob[], long int *qnbin, long int nd)
STATIC void	GetProbDistr_LowLimit (long int nd, double rel_tol, double Umax, double fwhm, double Phi[], double PhiDrv[], double qtemp[], double qprob[], double dPdlnT[], long int qnbin, double new_tmin, long nWideFail, QH_Code ErrorCode)
STATIC double	uderiv (double temp, long int nd)
STATIC double	ufunct (double temp, long int nd, bool *lgBoundErr)
STATIC double	inv_ufunct (double enthalpy, long int nd, bool *lgBoundErr)
void	InitEnthalpy (void)
Variables
static const long	NQMIN = 10L
static const double	PROB_CUTOFF_LO = 1.e-15
static const double	PROB_CUTOFF_HI = 1.e-20
static const double	SAFETY = 1.e+8
static const long	NSTARTUP = 5L
static const double	MAX_EVENTS = 150.
static const long	LOOP_MAX = 20L
static const double	DEF_FAC = 3.
static const double	PROB_TOL = 0.02
static const long	NQTEST = 500L
static const double	FWHM_RATIO = 0.1
static const double	FWHM_RATIO2 = 0.007
static const long	MAX_LOOP = 2*NQGRID
static const double	QHEAT_TOL = 5.e-3
static const long	WIDE_FAIL_MAX = 3
static const double	STRICT = 1.
static const double	RELAX = 15.
static const double	QT_RATIO = 1.03
static const double	DEN_SIL = 3.30
static const double	MW_SIL = 24.6051
static const double	tlim [5] = {0.,50.,150.,500.,DBL_MAX}
static const double	ppower [4] = {2.00,1.30,0.68,0.00}
static const double	cval [4]
