/home66/gary/public_html/cloudy/c08_branch/source/mole_h2_coll.cpp File Reference

#include "cddefines.h"
#include "phycon.h"
#include "dense.h"
#include "taulines.h"
#include "h2.h"
#include "h2_priv.h"
#include "mole.h"

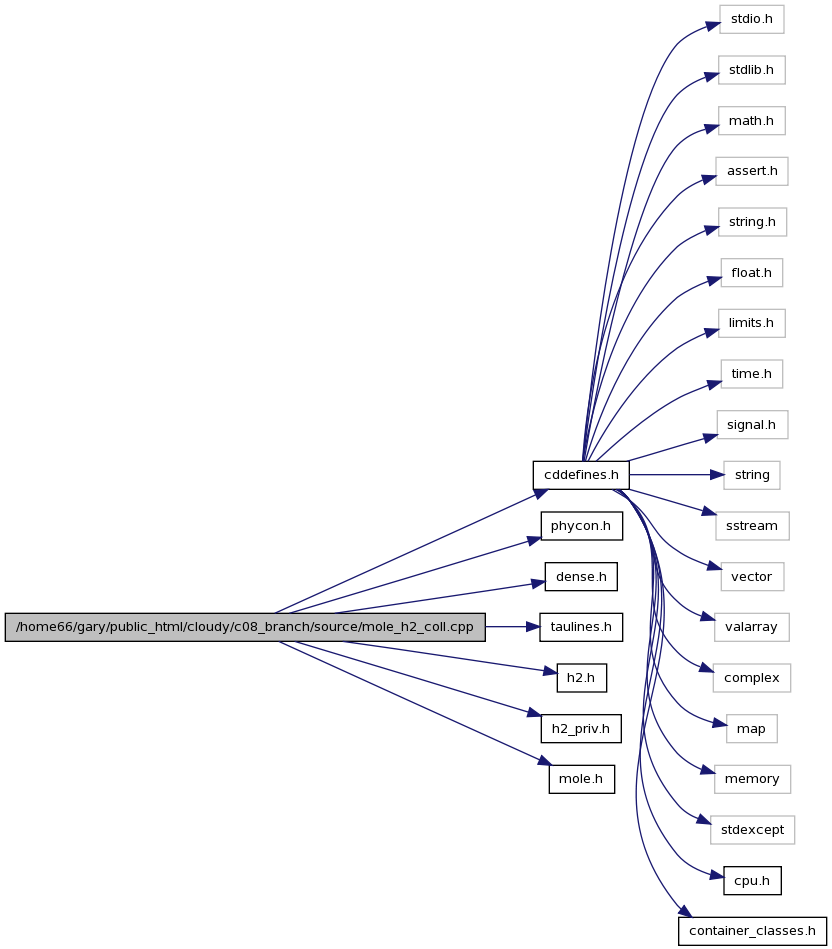

Include dependency graph for mole_h2_coll.cpp:

Go to the source code of this file.

Defines
#define	PRT_COLL   false
#define	N_H2_HE_FIT_PAR   8
Functions
STATIC realnum	H2_CollidRateEvalOne (long iVibHi, long iRotHi, long iVibLo, long iRotLo, long ipHi, long ipLo, long nColl)
void	H2_CollidRateEvalAll (void)
void	H2_CollidRateRead (long int nColl)
long int	H2_He_coll_init (const char FILE_NAME_IN[])
double	H2_He_coll (int init, int final, double temp)
Variables
static realnum ***	H2_He_coll_fit_par
static bool **	lgDefn_H2He_coll

---

Define Documentation

#define N_H2_HE_FIT_PAR   8

Definition at line 19 of file mole_h2_coll.cpp.

Referenced by H2_He_coll_init().

#define PRT_COLL   false

Definition at line 15 of file mole_h2_coll.cpp.

Referenced by H2_CollidRateEvalAll().

---

Function Documentation

void H2_CollidRateEvalAll

(

void

)

H2_CollidRateEvalAll - set H2 collision rates

Definition at line 212 of file mole_h2_coll.cpp.

References ASSERT, cdEXIT, DEBUG_ENTRY, energy_wn, H2_coll_dissoc_rate_coef, H2_coll_dissoc_rate_coef_H2, H2_CollidRateEvalOne(), H2_CollRate, H2_DissocEnergies, H2_ipX_ener_sort, H2Lines, ioQQQ, ipRot_H2_energy_sort, ipVib_H2_energy_sort, t_mole::lgColl_deexec_Calc, t_mole::lgColl_dissoc_coll, t_mole::lgH2_ortho_para_coll_on, MAX2, mole, N_X_COLLIDER, t_mole::nH2_TRACE, t_mole::nH2_trace_full, nLevels_per_elec, phycon, POW2, PRT_COLL, SDIV(), sexp(), t_phycon::te, and t_phycon::te_wn.

Referenced by H2_LevelPops().

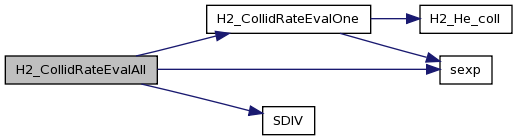

Here is the call graph for this function:

STATIC realnum H2_CollidRateEvalOne	(	long	iVibHi,
		long	iRotHi,
		long	iVibLo,
		long	iRotLo,
		long	ipHi,
		long	ipLo,
		long	nColl
	)

Definition at line 24 of file mole_h2_coll.cpp.

References CollRateFit, DEBUG_ENTRY, energy_wn, h2, H2_CollRate, H2_He_coll(), H2_lgOrtho, ioQQQ, t_mole::lgColl_deexec_Calc, t_mole::lgColl_gbar, t_h2::lgH2_H_coll_07, t_mole::lgH2_He_ORNL, t_mole::lgH2_ortho_para_coll_on, MAX2, mole, N_X_COLLIDER, phycon, POW2, sexp(), t_phycon::te, and t_phycon::te_eV.

Referenced by H2_CollidRateEvalAll().

Here is the call graph for this function:

void H2_CollidRateRead

(

long int

nColl

)

read collision rates

Parameters:

nColl

Definition at line 401 of file mole_h2_coll.cpp.

References COmole_rate_s::a, ASSERT, cdEXIT, CollRateFit, DEBUG_ENTRY, energy_wn, FILENAME_PATH_LENGTH_2, h2, H2_He_coll_init(), ioQQQ, t_h2::lgH2_H_coll_07, t_mole::lgH2_He_ORNL, mole, N_X_COLLIDER, t_h2::nRot_hi, open_data(), read_whole_line(), and VIB_COLLID.

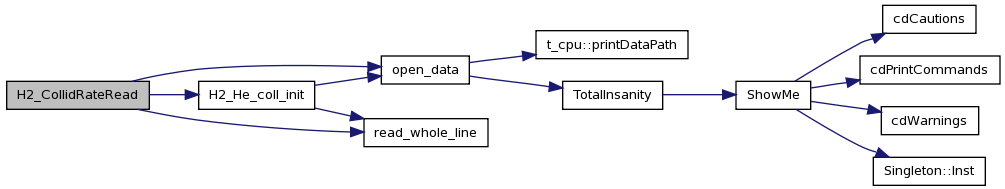

Here is the call graph for this function:

double H2_He_coll	(	int	init,
		int	final,
		double	temp
	)

H2_He_coll Interpolate the rate coefficeints The range of the temperature is between 2K - 1e8K

Parameters:

	init
	final
	temp

Todo:

1 fix this hack - Phillip Stancil is refitting

Definition at line 664 of file mole_h2_coll.cpp.

References b2, DEBUG_ENTRY, H2_He_coll_fit_par, ioQQQ, lgDefn_H2He_coll, MIN2, phycon, and t_phycon::te.

Referenced by H2_CollidRateEvalOne().

long int H2_He_coll_init

(

const char

FILE_NAME_IN[]

)

H2_He_coll_init receives the name of the file that contrains the fitting coefficeints of all transitions and read into 3d vectors. It outputs 'test.out' to test the arrays return value is magic number

Parameters:

FILE_NAME_IN[]

Definition at line 554 of file mole_h2_coll.cpp.

References cdEXIT, DEBUG_ENTRY, H2_He_coll_fit_par, INPUT_LINE_LENGTH, lgDefn_H2He_coll, MALLOC, N_H2_HE_FIT_PAR, nLevels_per_elec, open_data(), and read_whole_line().

Referenced by H2_CollidRateRead().

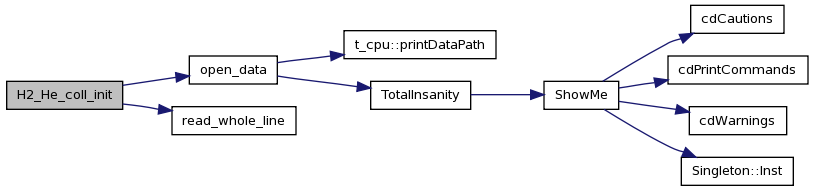

Here is the call graph for this function:

---

Variable Documentation

realnum*** H2_He_coll_fit_par [static]

Definition at line 20 of file mole_h2_coll.cpp.

Referenced by H2_He_coll(), and H2_He_coll_init().

bool** lgDefn_H2He_coll [static]

Definition at line 21 of file mole_h2_coll.cpp.

Referenced by H2_He_coll(), and H2_He_coll_init().

---
