#include <dynamics.h>

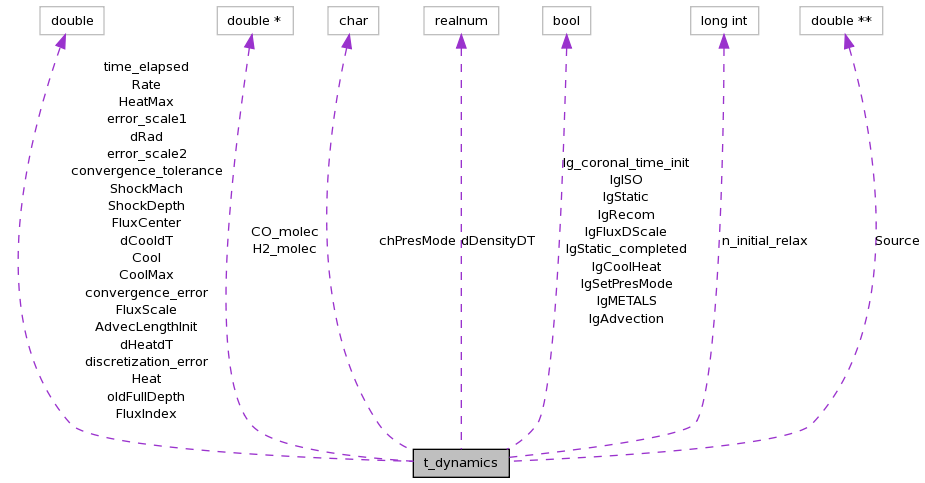

Collaboration diagram for t_dynamics:
Data Fields | |
| bool | lgAdvection |
| double | Cool |
| double | Heat |
| double | dCooldT |
| double | dHeatdT |
| double | CoolMax |
| double | HeatMax |
| double | Rate |
| double ** | Source |
| double * | H2_molec |
| double * | CO_molec |
| bool | lgISO [NISO] |
| bool | lgMETALS |
| bool | lgCoolHeat |
| bool | lg_coronal_time_init |
| bool | lgStatic |
| double | time_elapsed |
| bool | lgRecom |
| bool | lgStatic_completed |
| double | AdvecLengthInit |
| double | FluxCenter |
| char | chPresMode [20] |
| double | ShockDepth |
| double | ShockMach |
| long int | n_initial_relax |
| double | FluxScale |
| bool | lgFluxDScale |
| double | FluxIndex |
| double | dRad |
| double | oldFullDepth |
| double | convergence_error |
| double | convergence_tolerance |
| double | discretization_error |
| double | error_scale1 |
| double | error_scale2 |
| bool | lgSetPresMode |
| realnum | dDensityDT |
Definition at line 58 of file dynamics.h.
| double t_dynamics::AdvecLengthInit |
the initial value of the advection length, reset with set advection length
Definition at line 105 of file dynamics.h.
Referenced by DynaEndIter(), DynaZero(), and ParseSet().
| char t_dynamics::chPresMode[20] |
flag set by the "set dynamics pressure mode" command
Definition at line 111 of file dynamics.h.
Referenced by DynaPresChngFactor(), and ParseSet().
| double* t_dynamics::CO_molec |
convergence_error and discretization_error give estimates of convergence: :: convergence_error -- change between the last iterations; :: discretization_error -- error in the upstream interpolation. When (and if) discretization_error >> convergence_error, the interpolation length should be decreased.
They should both be based on the same norm of the models, but what norm may be experimented with -- at present, it's H+/Htot just weighted by cell number, which makes the estimates sensitive to the structure of the primary ionization front.
Definition at line 150 of file dynamics.h.
Referenced by DynaNewStep().
the allowed rel error, by default 0.1
Definition at line 153 of file dynamics.h.
Referenced by DynaZero().
| double t_dynamics::Cool |
advective cooling minus heating (erg cm^-3 s^-1)
Definition at line 64 of file dynamics.h.
Referenced by CoolPunch(), DynaIonize(), DynaPrtZone(), DynaPunch(), DynaZero(), and HeatPunch().
| double t_dynamics::CoolMax |
largest fraction of cooling and heating
Definition at line 67 of file dynamics.h.
Referenced by DynaZero(), and PrtComment().
| double t_dynamics::dCooldT |
derivative of density needed for expansion cooling
Definition at line 166 of file dynamics.h.
Referenced by IterRestart(), and lgConvPres().
| double t_dynamics::dHeatdT |
the error to be expected based on the coarseness of current advection length
Definition at line 156 of file dynamics.h.
Referenced by DynaZero().
| double t_dynamics::dRad |
the proposed thickness for the next zone when advection is included
Definition at line 135 of file dynamics.h.
Referenced by DynaZero().
| double t_dynamics::error_scale1 |
two ways of scaling the error estimate for convergence
Definition at line 159 of file dynamics.h.
Referenced by DynaNewStep().
| double t_dynamics::error_scale2 |
| double t_dynamics::FluxCenter |
the center of the particle flux law
Definition at line 108 of file dynamics.h.
Referenced by DynaFlux(), DynaZero(), and ParseDynaWind().
| double t_dynamics::FluxIndex |
the power law index of the particle flux law
Definition at line 132 of file dynamics.h.
Referenced by DynaFlux(), DynaZero(), and ParseDynaWind().
| double t_dynamics::FluxScale |
the scale of the particle flux law
Definition at line 126 of file dynamics.h.
Referenced by DynaFlux(), DynaZero(), and ParseDynaWind().
| double* t_dynamics::H2_molec |
save H2 and CO densities
Definition at line 76 of file dynamics.h.
Referenced by DynaCreateArrays(), and DynaIonize().
| double t_dynamics::Heat |
Definition at line 64 of file dynamics.h.
Referenced by CoolPunch(), DynaIonize(), DynaPrtZone(), DynaPunch(), DynaZero(), and HeatPunch().
| double t_dynamics::HeatMax |
var set with coronal time init - says to use constant temperature on first relax iterations then let temp run free
Definition at line 90 of file dynamics.h.
Referenced by ParseCoronal().
is advection turned on ?, set to false in zero
Definition at line 61 of file dynamics.h.
Referenced by advection_set_detault(), DynaZero(), IterRestart(), PrtZone(), radius_increment(), and ZoneEnd().
factor to turn off advective cooling
Definition at line 86 of file dynamics.h.
Referenced by DynaIonize(), DynaZero(), and ParseDont().
whether we also need to scale by the face density
Definition at line 129 of file dynamics.h.
Referenced by DynaFlux(), DynaZero(), and ParseDynaWind().
| bool t_dynamics::lgISO[NISO] |
factor to turn off advection for H-like or He-like iso seq, no advection h-like, he-like
Definition at line 80 of file dynamics.h.
Referenced by DynaZero(), and ParseDont().
| bool t_dynamics::lgMETALS |
factor to turn off advection for rest of ions, "no advection metals"
Definition at line 83 of file dynamics.h.
Referenced by DynaZero(), and ParseDont().
| bool t_dynamics::lgRecom |
true if recombination logic in place
Definition at line 99 of file dynamics.h.
Referenced by DynaZero(), PrtComment(), and timestep_next().
flag set true if set dynamics flow type was set - this means to use the specified option, and not to derive one
Definition at line 163 of file dynamics.h.
Referenced by DynaPresChngFactor(), DynaZero(), and ParseSet().
| bool t_dynamics::lgStatic |
set true if static time dependent
Definition at line 93 of file dynamics.h.
Referenced by DynaEndIter(), DynaIonize(), DynaPresChngFactor(), DynaZero(), lgConvPres(), ParseDynaTime(), PrtComment(), and radius_first().
true if model ends since time dependent model is finished
Definition at line 102 of file dynamics.h.
Referenced by cloudy(), and DynaZero().
| long int t_dynamics::n_initial_relax |
set how many iterations we will start with, before allowing changes. This allows the solution to relax to an equilibrium set with "set dynamics relax" command
Definition at line 123 of file dynamics.h.
Referenced by DynaEndIter(), DynaIonize(), DynaZero(), and ParseSet().
| double t_dynamics::oldFullDepth |
the depth of the last iteration
Definition at line 138 of file dynamics.h.
Referenced by DynaSaveLast().
| double t_dynamics::Rate |
the advection rate (s^-1)
Definition at line 70 of file dynamics.h.
Referenced by DynaCreateArrays(), DynaIonize(), DynaPunch(), and DynaZero().
| double t_dynamics::ShockDepth |
the shock depth in cm set with "set dynamics shock depth" command
Definition at line 114 of file dynamics.h.
Referenced by DynaPresChngFactor(), and ParseSet().
| double t_dynamics::ShockMach |
the isothermal Mach number at which to insert an antishock set with "set dynamics antishock Mach" command
Definition at line 118 of file dynamics.h.
Referenced by DynaPresChngFactor(), and ParseSet().
| double** t_dynamics::Source |
the advective recombination rate (cm^-3 s^-1)
Definition at line 73 of file dynamics.h.
Referenced by DynaCreateArrays(), DynaIonize(), and DynaPunch().
| double t_dynamics::time_elapsed |
elapsed time in time dependent static model
Definition at line 96 of file dynamics.h.
Referenced by DynaPunchTimeDep(), and DynaZero().
