#include <pressure.h>

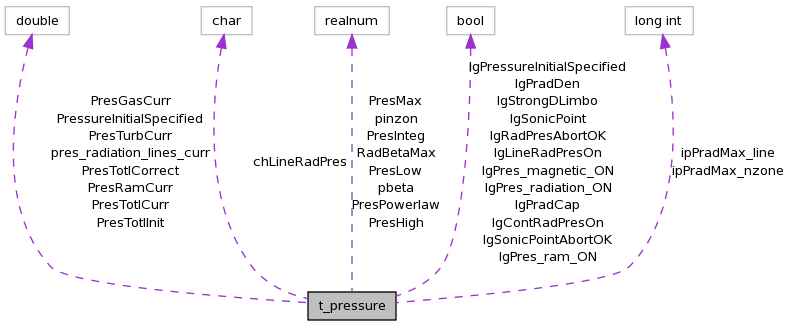

Collaboration diagram for t_pressure:
Data Fields | |
| realnum | PresLow |
| realnum | PresHigh |
| realnum | PresPowerlaw |
| double | PresRamCurr |
| double | PresTurbCurr |
| double | PresTotlCurr |
| double | PresTotlCorrect |
| double | PresGasCurr |
| double | PresTotlInit |
| bool | lgPressureInitialSpecified |
| double | PressureInitialSpecified |
| double | pres_radiation_lines_curr |
| bool | lgContRadPresOn |
| realnum | PresInteg |
| realnum | pinzon |
| bool | lgPres_radiation_ON |
| bool | lgPres_magnetic_ON |
| bool | lgPres_ram_ON |
| realnum | RadBetaMax |
| realnum | pbeta |
| realnum | PresMax |
| long int | ipPradMax_line |
| long int | ipPradMax_nzone |
| char | chLineRadPres [101] |
| bool | lgPradCap |
| bool | lgPradDen |
| bool | lgLineRadPresOn |
| bool | lgRadPresAbortOK |
| bool | lgSonicPointAbortOK |
| bool | lgSonicPoint |
| bool | lgStrongDLimbo |
Definition at line 63 of file pressure.h.
| char t_pressure::chLineRadPres[101] |
string with label for line with greatest contributrion to pressure
Definition at line 129 of file pressure.h.
| long int t_pressure::ipPradMax_line |
pointer to line with greatest radiation pressure
Definition at line 123 of file pressure.h.
| long int t_pressure::ipPradMax_nzone |
zone where greatest radiation pressure occurred
Definition at line 126 of file pressure.h.
flag saying whether or not incident continuum should be included in total pressure, turned off with constant gas pressure
Definition at line 101 of file pressure.h.
Referenced by DynaPresChngFactor(), InitDefaultsPreparse(), lgConvPres(), ParseConstant(), and ParseDynaWind().
flag true if radiation pressure is turned on, part of total pressure
Definition at line 137 of file pressure.h.
Referenced by ParseDont().
lgPradCap true if radiation pressure capped on first iteration lgPradDen capped by thermalization length
Definition at line 133 of file pressure.h.
Referenced by IterRestart().
Definition at line 111 of file pressure.h.
Referenced by advection_set_detault(), InitDefaultsPreparse(), and ParseConstant().
lgPres_radiation_ON says whether radiation pressure enabled, turned off with constant density, constant gas pressure commands, on with constant pressure
Definition at line 110 of file pressure.h.
Referenced by advection_set_detault(), InitDefaultsPreparse(), and ParseConstant().
Definition at line 112 of file pressure.h.
Referenced by advection_set_detault(), InitDefaultsPreparse(), and ParseConstant().
option to set pressure at illuminated face as number on constant pressure command
Definition at line 92 of file pressure.h.
Referenced by ConvInitSolution(), ConvPresTempEdenIoniz(), InitDefaultsPreparse(), and ParseConstant().
option to not abort on high radiation pressure - set true in initialization, set false with NO ABORT on constant radiation pressure command
Definition at line 141 of file pressure.h.
Referenced by ParseConstant().
we hit the sonic point
Definition at line 148 of file pressure.h.
Referenced by ConvFail(), and IterRestart().
option to abort when we reach the sonic point - set according to the dynamics pressure mode
Definition at line 145 of file pressure.h.
Referenced by DynaPresChngFactor().
True when we are in limbo while trying to find a strong-D solution. This is when there is no possible solution for the current target pressure. We just grit our teeth and plough onwards, hoping to come out the other side and to sort it all out on a later iteration of the dynamics
Definition at line 155 of file pressure.h.
Referenced by IterRestart().
pbeta is ratio of radition to gas pressure, evaluated in PressureTotal
Definition at line 116 of file pressure.h.
Referenced by ConvFail(), IterRestart(), and PrtZone().
pres_radiation_lines_curr is line radiation pressure for current zone
Definition at line 97 of file pressure.h.
Referenced by cdPressure_last(), lgConvPres(), PressureChange(), PresTotCurrent(), and PrtLinePres().
| double t_pressure::PresGasCurr |
PresGasCurr is gas pressure, nkT, set in PressureTotal
Definition at line 82 of file pressure.h.
Referenced by cdPressure_last(), ConvFail(), DynaIonize(), DynaPresChngFactor(), DynaPrtZone(), and PressureChange().
Definition at line 69 of file pressure.h.
total pressure related variables PresInteg is integral
Definition at line 105 of file pressure.h.
Referenced by DynaPresChngFactor(), IterRestart(), and lgConvPres().
lowest and highest total current pressure to desired pressures in model, a measure of how well converged it is. This includes total pressure, so in a constant gas pressure model will show a large excursion
Definition at line 69 of file pressure.h.
PresMas is largest pressure that occurred in the calculation
Definition at line 116 of file pressure.h.
| double t_pressure::PresRamCurr |
the ram pressure
Definition at line 75 of file pressure.h.
Referenced by ConvFail(), and DynaPresChngFactor().
linear pressure in nkT units, zero if not set
Definition at line 94 of file pressure.h.
Referenced by ConvInitSolution(), InitDefaultsPreparse(), and ParseConstant().
| double t_pressure::PresTotlCorrect |
Definition at line 82 of file pressure.h.
Referenced by ConvFail(), ConvPresTempEdenIoniz(), DynaPresChngFactor(), lgConvPres(), and PressureChange().
| double t_pressure::PresTotlCurr |
the current pressure, and the correct pressure, the ratio of the two is the error, PresTotlCurr is set in PressureTotal
Definition at line 82 of file pressure.h.
Referenced by cdPressure_last(), ConvFail(), ConvInitSolution(), ConvPresTempEdenIoniz(), DynaPresChngFactor(), lgConvPres(), and PressureChange().
| double t_pressure::PresTotlInit |
PresTotlInit - total pressure at the illuminated face
Definition at line 88 of file pressure.h.
Referenced by ConvInitSolution(), DynaPresChngFactor(), and lgConvPres().
| double t_pressure::PresTurbCurr |
current turbulent pressure
Definition at line 78 of file pressure.h.
RadBetaMax is largest ratio of radiation to gas pressure
Definition at line 116 of file pressure.h.
Referenced by IterRestart(), and lgCheckAsserts().
