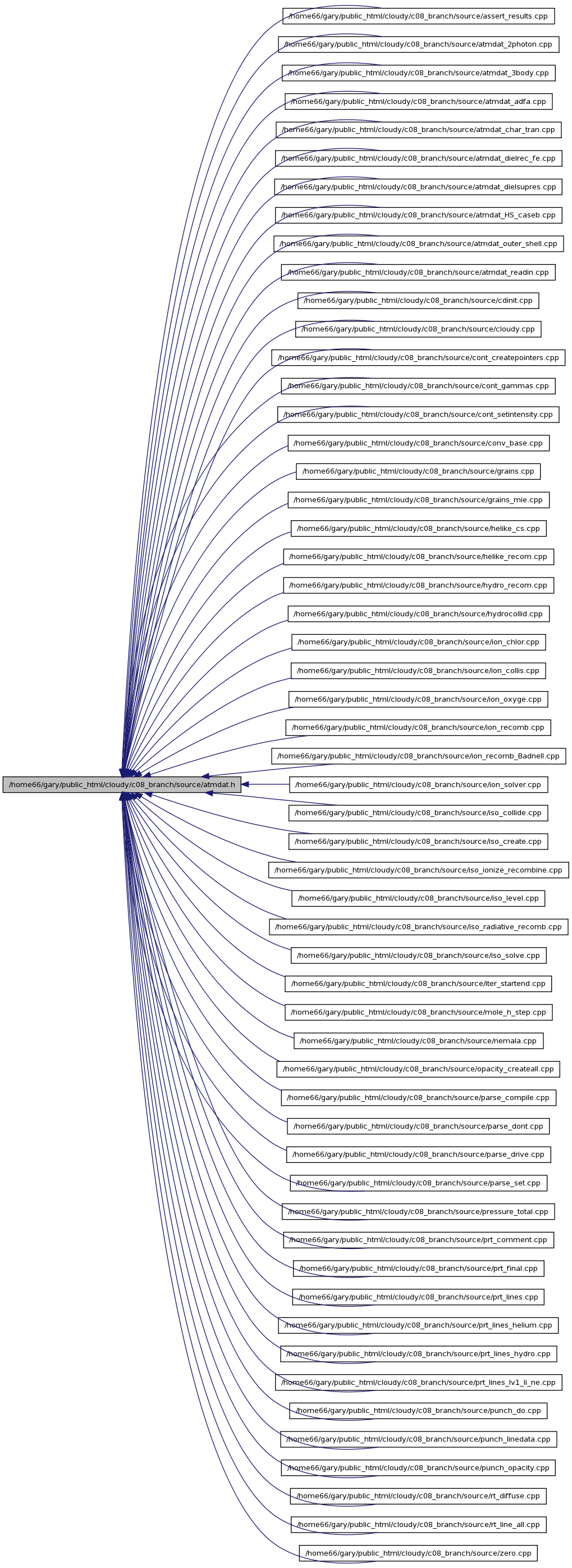

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | t_atmdat |
| class | t_ADfA |
Defines | |
| #define | NHSDIM 15 |
| #define | NLINEHS 300 |
| #define | HS_NZ 8 |
| #define | NHCSTE 8 |
Enumerations | |
| enum | phfit_version { PHFIT_UNDEF, PHFIT95, PHFIT96 } |
Functions | |
| double | atmdat_2phot_shapefunction (double EbyE2nu, long ipISO, long nelem) |
| void | atmdat_2phot_rate (long ipZ, long ipISO) |
| void | atmdat_readin (void) |
| void | atmdat_Chianti_readin (long intNS) |
| void | atmdat_lamda_readin (long intNS) |
| void | atmdat_outer_shell (long int iz, long int in, long int *imax, long int *ig0, long int *ig1) |
| void | ChargTranEval (double *O_HIonRate) |
| double | ChargTranSumHeat (void) |
| void | ChargTranPun (FILE *ipPnunit, char *chPunch) |
| double | atmdat_dielrec_fe (long int ion, double t) |
| void | atmdat_H_phot_cs (void) |
| void | atmdat_3body (void) |
| double | atmdat_HS_caseB (long int iHi, long int iLo, long int iZ, double TempIn, double DenIn, char chCase) |
| void | atmdat_DielSupres (void) |
Variables | |
| EXTERN struct t_atmdat | atmdat |
| #define HS_NZ 8 |
number of elements that can be read in
Definition at line 118 of file atmdat.h.
Referenced by atmdat_HS_caseB().
| #define NHCSTE 8 |
number of temperature points in h_coll_str arrays
Definition at line 119 of file atmdat.h.
Referenced by HCSAR_interp().
| enum phfit_version |
| void atmdat_2phot_rate | ( | long | ipISO, | |
| long | nelem | |||
| ) |
Definition at line 305 of file atmdat_2photon.cpp.
References t_rfield::anu, t_iso::As2nu, ASSERT, DEBUG_ENTRY, ioQQQ, ipH_LIKE, t_iso::ipHalfTwoPhoE, ipHE_LIKE, t_iso::ipSym2nu, t_iso::ipTwoPhoE, iso, t_trace::lgBug2nu, t_rfield::lgInducProcess, t_trace::lgTrace, t_rfield::OccNumbIncidCont, rfield, t_rfield::SummedOcc, trace, Transitions, t_iso::TwoNu_induc_dn, t_iso::TwoNu_induc_dn_max, and t_iso::TwoNu_induc_up.
Referenced by RT_line_all().
| double atmdat_2phot_shapefunction | ( | double | EbyE2nu, | |
| long | ipISO, | |||
| long | nelem | |||
| ) |
atmdat_2phot_shapefunction two photon emission function for all atomic and ionic species
| EbyE2nu | ||
| ipISO | ||
| nelem |
Definition at line 214 of file atmdat_2photon.cpp.
References ASSERT, DEBUG_ENTRY, He2NuEnergies, He2NuShapeFunc, He2NuShapeFuncY2, Hydro2NuEnergies, Hydro2NuShapeFunc, Hydro2NuShapeFuncY2, ipH_LIKE, ipHE_LIKE, lgFirstCall, NCRS, NCRS_H, NCRS_HE, spline(), and splint().
Here is the call graph for this function:
| void atmdat_3body | ( | void | ) |
atmdat_3body derive three-body recombination coefficients
Definition at line 52 of file atmdat_3body.cpp.
References atmdat, t_ionbal::CotaRate, DEBUG_ENTRY, ionbal, t_ionbal::lgNoCota, LIMELM, MIN2, and t_atmdat::nsbig.
| void atmdat_Chianti_readin | ( | long | intNS | ) |
atmdat_Chianti_readin read in data from Chianti database files
| intNS |
Definition at line 13 of file atmdat_chianti.cpp.
References AddLine2Stack(), ASSERT, AtmolCollSplines, atmolStates, atmolTrans, BIGDOUBLE, cdEXIT, chLabel, t_quantumState::chLabel, CollRatesArray, t_CollSplinesArray::collspline, DEBUG_ENTRY, DEBUGSTATE, DummyEmis, t_transition::Emis, t_quantumState::energy, t_CollSplinesArray::EnergyDiff, t_transition::EnergyErg, t_transition::EnergyK, t_transition::EnergyWN, ERG1CM, FFmtRead(), FILENAME_PATH_LENGTH_2, fixit(), t_quantumState::g, t_CollSplinesArray::gf, t_transition::Hi, t_CollSplinesArray::intTranType, ioQQQ, isnan, t_trace::lgTrace, MALLOC, MAX2, t_CollSplinesArray::nSplinePts, NUM_COLLIDERS, t_species::numLevels_local, t_species::numLevels_max, open_data(), read_whole_line(), RefIndex(), t_CollSplinesArray::ScalingParam, Species, spline(), t_CollSplinesArray::SplineSecDer, spsort(), T1CM, TotalInsanity(), trace, uncaps(), and t_transition::WLAng.
Referenced by database_readin().

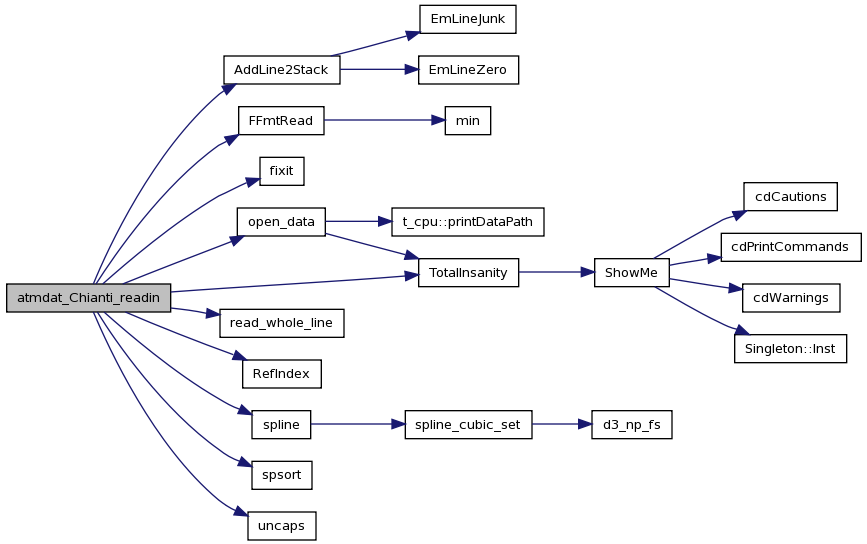

Here is the call graph for this function:
| double atmdat_dielrec_fe | ( | long int | ion, | |
| double | t | |||
| ) |
atmdat_dielrec_fe Dielectronic recombination rates for Fe from Arnaud & Raymond 1992
| ion | ||
| t |
Definition at line 9 of file atmdat_dielrec_fe.cpp.
References cdEXIT, DEBUG_ENTRY, EVRYD, ioQQQ, sexp(), and TE1RYD.
Here is the call graph for this function:
| void atmdat_DielSupres | ( | void | ) |
atmdat_DielSupres derive scale factors for suppression of Burgess dielectronic recombination
Definition at line 149 of file atmdat_dielsupres.cpp.
References DEBUG_ENTRY, dense, t_ionbal::DielSupprs, t_dense::eden, ionbal, t_ionbal::lgSupDie, LIMELM, MAX2, MIN2, phycon, powi(), t_phycon::sqrte, and t_phycon::te.
Here is the call graph for this function:
| void atmdat_H_phot_cs | ( | void | ) |
this initializes the arrays containing the fitting coefficients, called by OpacityCreateAll, done once per coreload
| double atmdat_HS_caseB | ( | long int | iHi, | |
| long int | iLo, | |||
| long int | iZ, | |||
| double | TempIn, | |||
| double | DenIn, | |||
| char | chCase | |||
| ) |
general utility to read in line emissivities from the Storey & Hummer tables of case B emissivities.
| iHi | the principal quantum numbers, . | |
| iLo | upper and lower levels in any order | |
| iZ | charge of ion, only 1 and 2 for now | |
| TempIn | temperature, must lie within the range of the table, which depends on the ion charge, and is 500 - 30,000K for hydrogen | |
| DenIn | the density and must lie within the range of the table | |
| chCase | case - 'a' or 'b' |
Definition at line 7 of file atmdat_HS_caseb.cpp.
References atmdat, cdEXIT, DEBUG_ENTRY, t_atmdat::Density, t_atmdat::ElecTemp, HS_NZ, t_atmdat::nDensity, t_atmdat::ntemp, x1, and x2.
Referenced by DrvCaseBHS(), and lines_hydro().
| void atmdat_lamda_readin | ( | long | intNS | ) |
atmdat_lamda_readin read in data from LAMDA database files
| intNS |
Definition at line 14 of file atmdat_lamda.cpp.
References AddLine2Stack(), ASSERT, AtmolCollRateCoeff, atmolStates, atmolTrans, cdEXIT, chLabel, t_quantumState::chLabel, t_CollRatesArray::collrates, CollRatesArray, DEBUG_ENTRY, DEBUGSTATE, DummyEmis, t_transition::Emis, t_quantumState::energy, t_transition::EnergyErg, t_transition::EnergyK, t_transition::EnergyWN, ERG1CM, FFmtRead(), FILENAME_PATH_LENGTH_2, t_species::fmolweight, t_quantumState::g, t_transition::Hi, ioQQQ, isnan, lgSpeciesMolecule, t_trace::lgTrace, MALLOC, MAX2, t_CollRatesArray::ntemps, NUM_COLLIDERS, t_species::numLevels_local, t_species::numLevels_max, open_data(), read_whole_line(), RefIndex(), Species, T1CM, t_CollRatesArray::temps, TotalInsanity(), trace, uncaps(), and t_transition::WLAng.
Referenced by database_readin().

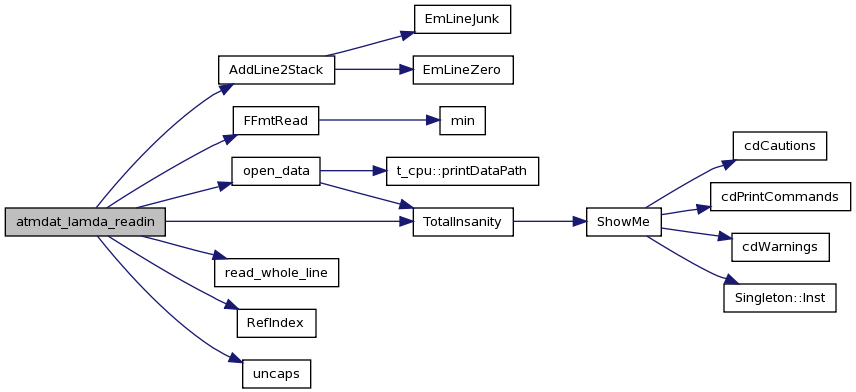

Here is the call graph for this function:
| void atmdat_outer_shell | ( | long int | iz, | |
| long int | in, | |||
| long int * | imax, | |||
| long int * | ig0, | |||
| long int * | ig1 | |||
| ) |
atmdat_outer_shell determine outer shell, and statistical weights of that and higher ion, for any ion written by Dima Verner
| [in] | iz | atomic number from 1 to 30 |
| [in] | in | number of electrons from 1 to iz |
| [out] | *imax | number of the outer shell |
| [out] | *ig0 | statistical weight of (iz,in) ground state |
| [out] | *ig1 | statistical weight of (iz,in-1) ground state |
Definition at line 8 of file atmdat_outer_shell.cpp.
References DEBUG_ENTRY, and ioQQQ.
| void atmdat_readin | ( | void | ) |
atmdat_readin read in some data files, but only if this is very first call
Definition at line 127 of file atmdat_readin.cpp.
References t_struc::AccelGravity, t_struc::AccelTot, cdEXIT, t_struc::CO_molec, t_struc::coolstr, DEBUG_ENTRY, t_struc::DenMass, t_struc::DenParticles, t_struc::depth, t_struc::depth_last, t_struc::drad, t_struc::drad_last, t_struc::drad_x_fillfac, t_struc::ednstr, FILENAME_PATH_LENGTH_2, t_struc::gas_phase, t_struc::GasPressure, geometry, t_struc::H2_molec, t_struc::hden, t_struc::heatstr, t_struc::hiistr, t_struc::histr, ioQQQ, ipIRON, t_iterations::iter_malloc, iterations, lgFirstCall, LIMELM, MALLOC, MAX2, mole, N_H_MOLEC, t_geometry::nend, t_mole::num_comole_calc, t_struc::nzlim, t_struc::o3str, t_struc::pres_radiation_lines_curr, t_struc::pressure, struc, t_struc::testr, TotalInsanity(), t_struc::volstr, t_struc::windv, t_struc::xIonDense, and t_struc::xLyman_depth.
Referenced by cloudy(), DrvCaseBHS(), and ParseCompile().

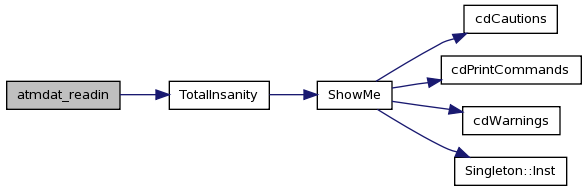

Here is the call graph for this function:
| void ChargTranEval | ( | double * | O_HIonRate | ) |
atmdat fill in the HCharExcIonOf and Rec arrays with Kingdon's fitted CT with H,
| O_HIonRate |
Definition at line 43 of file atmdat_char_tran.cpp.
References atmdat, co, conv, DEBUG_ENTRY, t_atmdat::HCharExcIonOf, t_atmdat::HCharExcRecTo, HCTIon(), HCTRecom(), t_atmdat::HeCharExcIonOf, t_atmdat::HeCharExcRecTo, ipHELIUM, ipOXYGEN, t_co::lgUMISTrates, LIMELM, t_conv::nTotalIoniz, phycon, sexp(), and t_phycon::te.

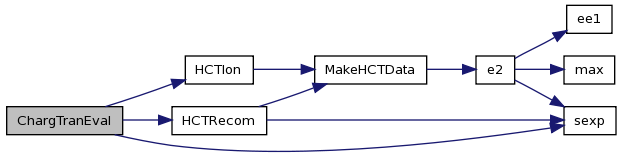

Here is the call graph for this function:
| void ChargTranPun | ( | FILE * | ipPnunit, | |
| char * | chPunch | |||
| ) |
punch charge transfer rate coefficients
| ipPnunit | ||
| chPunch |
Definition at line 1684 of file atmdat_char_tran.cpp.
References t_elementnames::chElementSym, DEBUG_ENTRY, elementnames, HCTIon(), HCTRecom(), phycon, and t_phycon::te.

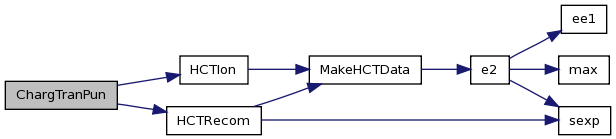

Here is the call graph for this function:
| double ChargTranSumHeat | ( | void | ) |
sum up the charge transfer heating
Definition at line 570 of file atmdat_char_tran.cpp.
References ASSERT, atmdat, CTIonData, CTRecombData, DEBUG_ENTRY, dense, EN1EV, t_atmdat::HCharCoolMax, t_atmdat::HCharExcIonOf, t_atmdat::HCharExcRecTo, t_atmdat::HCharHeatMax, t_atmdat::HCharHeatOn, t_thermal::htot, ipH1s, ipH_LIKE, ipHELIUM, ipHYDROGEN, lgCTDataDefined, LIMELM, MAX2, MIN2, StatesElem, thermal, and t_dense::xIonDense.
