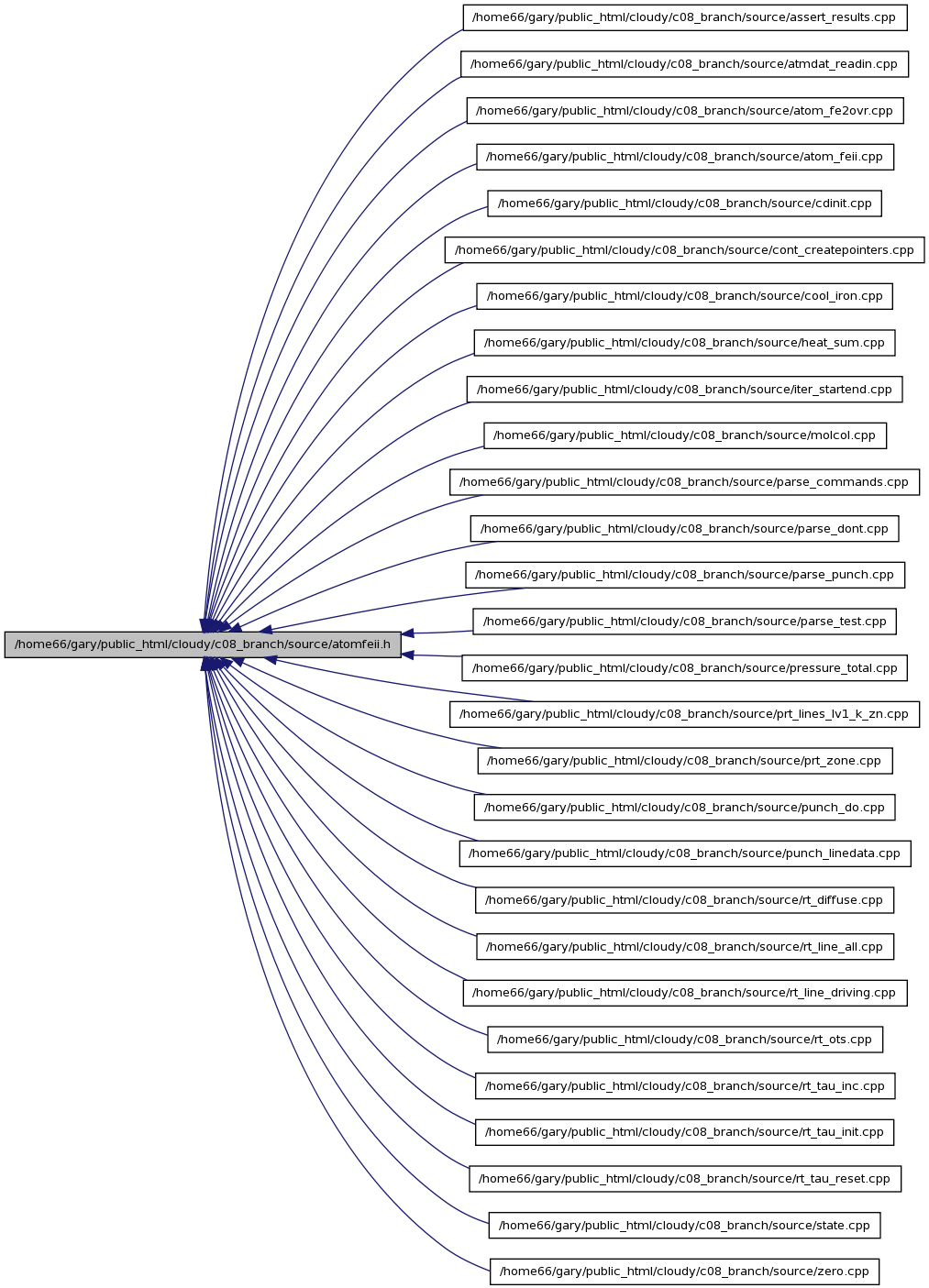

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | t_FeII |
| class | t_fe2ovr_la |
Defines | |
| #define | NFE2LEVN 371 |
Functions | |
| void | AssertFeIIDep (double *pred, double *BigError, double *StdDev) |
| void | FeIIFillLow16 (void) |
| void | FeIICreate (void) |
| void | FeIIPrint (void) |
| void | FeIILevelPops (void) |
| double | FeIISumBand (realnum wl1, realnum wl2) |
| void | FeII_RT_TauInc (void) |
| void | FeII_RT_tau_reset (void) |
| void | FeIIPoint (void) |
| void | FeIIAccel (double *fe2drive) |
| void | FeII_RT_Make (bool lgDoEsc, bool lgUpdateFineOpac) |
| void | FeIIAddLines (void) |
| void | FeIIPunchLevels (FILE *ioPUN) |
| void | FeIIPunchColden (FILE *ioPUN) |
| void | FeII_Colden (const char *chLabel) |
| void | FeIIPunchLines (FILE *ioPUN) |
| void | FeIIPunchOpticalDepth (FILE *ioPUN) |
| void | FeII_LineZero (void) |
| void | FeIIIntenZero (void) |
| double | FeIIRadPress (void) |
| double | FeII_InterEnergy (void) |
| void | FeIIPunDepart (FILE *ioPUN, bool lgDoAll) |
| void | PunFeII (FILE *io) |
| void | FeIIPun1Depart (FILE *ioPUN, long int nPUN) |
| void | FeIIPunData (FILE *ioPUN, bool lgDoAll) |
| void | FeIIPunPop (FILE *ioPUN, bool lgPunchRange, long int ipRangeLo, long int ipRangeHi, bool lgPunchDensity) |
| void | FeIIPunchLineStuff (FILE *io, realnum xLimit, long index) |
| void | FeIIZero (void) |
| void | FeIIReset (void) |
| void | FeII_OTS (void) |
| void | FeII_RT_Out (void) |
| void | ParseAtomFeII (char *chCard) |
Variables | |
| bool | lgFeIIMalloc |
| EXTERN struct t_FeII | FeII |
| const int | NFEII = 373 |
| const int | NFE2PR = 61 |
Definition in file atomfeii.h.
| #define NFE2LEVN 371 |
this is the number of levels for the large FeII atom
Definition at line 184 of file atomfeii.h.
Referenced by FeIILevelPops(), FeIIZero(), and ParseAtomFeII().
| void AssertFeIIDep | ( | double * | pred, | |
| double * | BigError, | |||
| double * | StdDev | |||
| ) |
called by assert feii depart coef command
| *pred | ||
| *BigError | ||
| *StdDev |
Definition at line 2584 of file atom_feii.cpp.
References ASSERT, DEBUG_ENTRY, Fe2DepCoef, FeII, t_FeII::lgSimulate, MAX2, t_FeII::nFeIILevel, and POW2.
Referenced by lgCheckAsserts().
| void FeII_Colden | ( | const char * | chLabel | ) |
FeII_Colden maintain H2 column densities within X
| *chLabel |
Definition at line 179 of file atom_feii.cpp.
References cdEXIT, DEBUG_ENTRY, t_radius::drad_x_fillfac, Fe2ColDen, Fe2LevelPop, FeII, ioQQQ, t_FeII::nFeIILevel, and radius.
Referenced by molcol().
| double FeII_InterEnergy | ( | void | ) |
internal energy of FeII called in PresTotCurrent
| void FeII_LineZero | ( | void | ) |
initialize optical depth arrays, called by TauOut
Definition at line 1867 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, t_FeII::nFeIILevel, and TransitionZero().

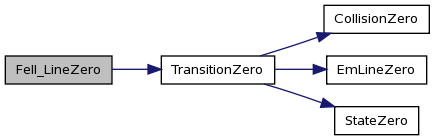

Here is the call graph for this function:
| void FeII_OTS | ( | void | ) |
do OTS and outward parts of FeII lines, if large atom is turned on
Definition at line 2639 of file atom_feii.cpp.
References ASSERT, t_emission::Aul, DEBUG_ENTRY, t_transition::Emis, Fe2LevN, FeII, t_transition::Hi, t_transition::ipCont, t_FeII::nFeIILevel, t_emission::ots, t_emission::Pdest, t_quantumState::Pop, and RT_OTS_AddLine().
Here is the call graph for this function:
| void FeII_RT_Make | ( | bool | lgDoEsc, | |
| bool | lgUpdateFineOpac | |||
| ) |
called in LineSet4 to add FeII lines to save array
| lgDoEsc | ||
| lgUpdateFineOpac |
Definition at line 1575 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, ioQQQ, t_trace::lgTrace, t_FeII::nFeIILevel, t_FeII::nFeIILevelAlloc, RT_line_one(), and trace.

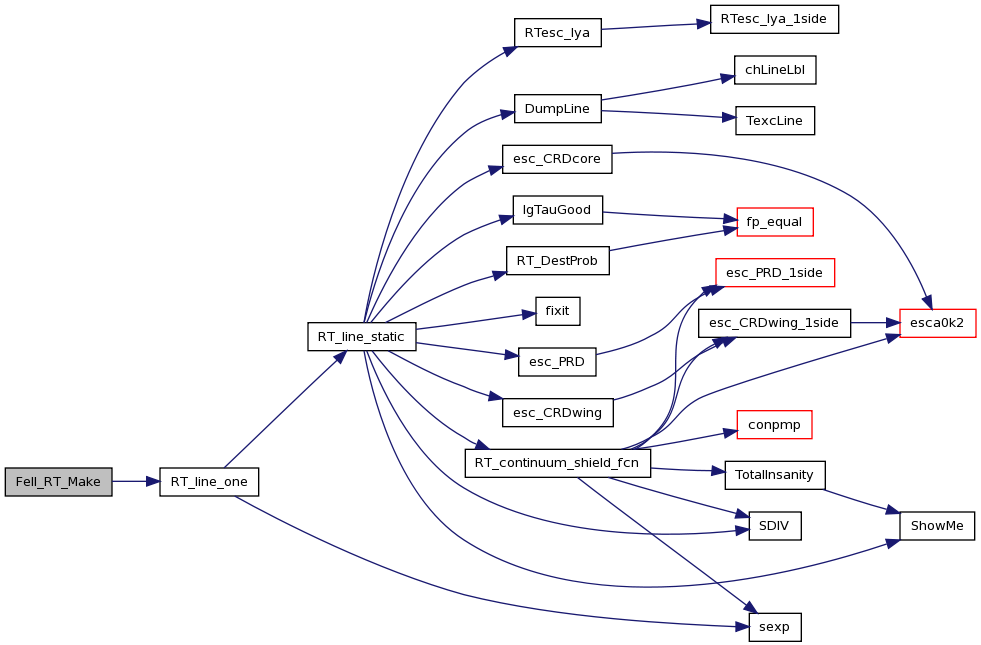

Here is the call graph for this function:
| void FeII_RT_Out | ( | void | ) |
do outward rates for FeII, called by RT_diffuse
Definition at line 2676 of file atom_feii.cpp.
References DEBUG_ENTRY, dense, Fe2LevN, FeII, ipIRON, t_FeII::nFeIILevel, outline(), and t_dense::xIonDense.
Here is the call graph for this function:
| void FeII_RT_tau_reset | ( | void | ) |
FeII_RT_tau_reset reset optical depths for large FeII atom, called by update after each iteration
Definition at line 1445 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, FeIIOvrLap(), t_FeII::nFeIILevelAlloc, and RT_line_one_tau_reset().
Here is the call graph for this function:
| void FeII_RT_TauInc | ( | void | ) |
FeII_RT_TauInc called once per zone in RT_tau_inc to increment large FeII atom line optical depths
Definition at line 1416 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, t_FeII::nFeIILevel, t_FeII::nFeIILevelAlloc, and RT_line_one_tauinc().
Here is the call graph for this function:
| void FeIIAccel | ( | double * | fe2drive | ) |
called by rt_line_driving to compute radiative acceleration due to FeII lines
| *fe2drive |
Definition at line 1547 of file atom_feii.cpp.
References DEBUG_ENTRY, t_transition::Emis, t_transition::EnergyErg, Fe2LevN, FeII, t_FeII::nFeIILevel, and t_emission::PopOpc.
| void FeIIAddLines | ( | void | ) |
called by LineSet4, this adds feii line intensities together
Definition at line 1611 of file atom_feii.cpp.
References DEBUG_ENTRY, t_radius::dVeff, t_transition::Emis, Fe2LevN, Fe2SavN, FeII, t_LineSave::ipass, LineSave, t_FeII::nFeIILevel, radius, and t_emission::xIntensity.
Referenced by lines_lv1_k_zn().
| void FeIICreate | ( | void | ) |
reads in feii data from disk, creates space for main arrays
Definition at line 226 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2A, Fe2CPump, Fe2LPump, FeII, FILENAME_PATH_LENGTH_2, lgFeIIMalloc, MALLOC, t_FeII::nFeIILevel, and t_FeII::nFeIILevelAlloc.
| void FeIIFillLow16 | ( | void | ) |
FeIIFillLow16
Definition at line 1941 of file atom_feii.cpp.
References DEBUG_ENTRY, t_transition::Emis, t_FeII::fe17to6, t_FeII::fe17to7, t_FeII::fe18to7, t_FeII::fe18to8, t_FeII::fe19to8, t_FeII::fe20201, t_FeII::fe20302, t_FeII::fe20706, t_FeII::fe20807, t_FeII::fe20908, t_FeII::fe21001, t_FeII::fe21002, t_FeII::fe21006, t_FeII::fe21007, t_FeII::fe21103, t_FeII::fe21104, t_FeII::fe21106, t_FeII::fe21107, t_FeII::fe21108, t_FeII::fe21110, t_FeII::fe21204, t_FeII::fe21207, t_FeII::fe21208, t_FeII::fe21209, t_FeII::fe21211, t_FeII::fe21308, t_FeII::fe21406, t_FeII::fe21507, t_FeII::fe21508, t_FeII::fe21609, t_FeII::fe22to7, t_FeII::fe24to2, t_FeII::fe24to6, t_FeII::fe24to7, t_FeII::fe25to6, t_FeII::fe27to6, t_FeII::fe27to7, t_FeII::fe28to7, t_FeII::fe28to8, t_FeII::fe29to8, t_FeII::fe29to9, Fe2LevN, t_FeII::fe30to3, t_FeII::fe30to8, t_FeII::fe32to1, t_FeII::fe32to2, t_FeII::fe32to6, t_FeII::fe32to7, t_FeII::fe33to2, t_FeII::fe33to3, t_FeII::fe33to6, t_FeII::fe33to7, t_FeII::fe34to8, t_FeII::fe35to8, t_FeII::fe36to2, t_FeII::fe36to3, t_FeII::fe36to5, t_FeII::fe37to6, t_FeII::fe37to7, t_FeII::fe38to11, t_FeII::fe39to6, t_FeII::fe39to7, t_FeII::fe39to8, t_FeII::fe40to7, t_FeII::fe40to8, t_FeII::fe40to9, t_FeII::fe41to8, t_FeII::fe41to9, t_FeII::fe42to6, t_FeII::fe42to7, t_FeII::fe43to7, t_FeII::fe80to28, FeII, t_FeII::nFeIILevel, and t_emission::xIntensity.
Referenced by Fe2_cooling().
| void FeIIIntenZero | ( | void | ) |
FeIIIntenZero zero out intensity of FeII atom
Definition at line 1893 of file atom_feii.cpp.
References t_transition::Coll, t_emission::ColOvTot, t_collision::cool, DEBUG_ENTRY, t_transition::Emis, Fe2LevelPop, Fe2LevN, FeII, t_collision::heat, t_transition::Hi, t_transition::Lo, t_FeII::nFeIILevel, t_emission::ots, t_emission::phots, t_quantumState::Pop, and t_emission::xIntensity.
Referenced by Fe2_cooling().
| void FeIILevelPops | ( | void | ) |
Definition at line 715 of file atom_feii.cpp.
References amat, AMAT, t_emission::Aul, cdEXIT, t_emission::ColOvTot, DEBUG_ENTRY, dense, t_hydro::dstfe2lya, t_dense::eden, t_transition::Emis, t_transition::EnergyErg, Fe2A, Fe2Coll, Fe2CPump, Fe2LevelPop, Fe2LevN, Fe2LPump, FeII, FeIICollRatesBoltzmann(), FeIILyaPump(), t_quantumState::g, getrf_wrapper(), getrs_wrapper(), t_transition::Hi, hydro, ioQQQ, ipIRON, ipiv, t_FeII::lgFeIILargeOn, t_FeII::lgSimulate, t_trace::lgTrace, t_transition::Lo, NFE2LEVN, t_FeII::nFeIILevel, t_FeII::nFeIILevelAlloc, t_emission::Pdest, t_emission::Pelec_esc, t_emission::Pesc, t_emission::phots, t_quantumState::Pop, t_emission::pump, SDIV(), trace, t_emission::xIntensity, t_dense::xIonDense, xMatrix, and yVector.
Referenced by Fe2_cooling().

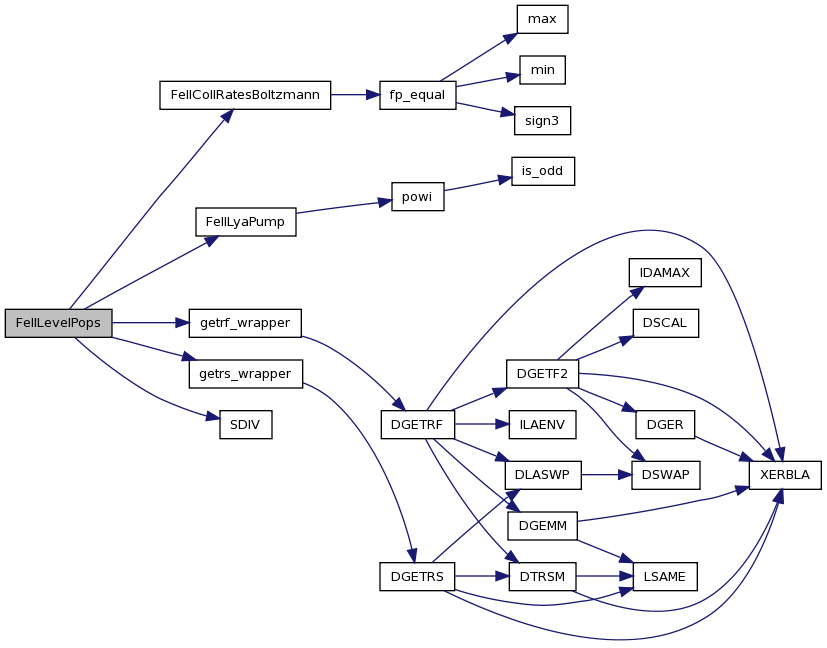

Here is the call graph for this function:
| void FeIIPoint | ( | void | ) |
FeIIPoint called by ContCreatePointers to create pointers for lines in large FeII atom
Definition at line 1487 of file atom_feii.cpp.
References abscf(), t_rfield::chLineLabel, t_emission::dampXvel, DEBUG_ENTRY, t_transition::Emis, t_transition::EnergyErg, t_transition::EnergyK, t_transition::EnergyWN, ERG1CM, Fe2LevN, FeII, t_quantumState::g, t_transition::ipCont, t_emission::ipFine, ipFineCont(), ipoint(), t_transition::Lo, t_FeII::nFeIILevel, t_emission::opacity, PI4, rfield, T1CM, and WAVNRYD.

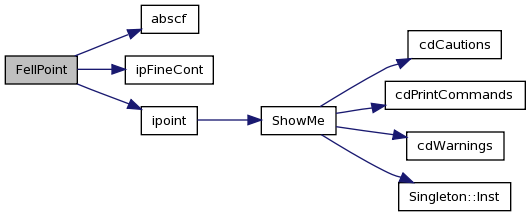

Here is the call graph for this function:
| void FeIIPrint | ( | void | ) |
| void FeIIPun1Depart | ( | FILE * | ioPUN, | |
| long int | nPUN | |||
| ) |
send the departure coef for physical level nPUN to unit ioPUN
| ioPUN | the io unit where the print should be directed | |
| nPUN | the physical (not c) number of the level |
Definition at line 2219 of file atom_feii.cpp.
References ASSERT, DEBUG_ENTRY, Fe2DepCoef, FeII, and t_FeII::nFeIILevel.
Referenced by FeIIPunDepart().
| void FeIIPunchColden | ( | FILE * | ioPUN | ) |
FeIIPunchColden punch level energies, stat weights, column density
| *ioPUN | file we will punch to |
Definition at line 1685 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2ColDen, Fe2LevN, FeII, and t_FeII::nFeIILevel.
| void FeIIPunchLevels | ( | FILE * | ioPUN | ) |
called by parse_punch, punch level energies and stat weights
| ioPUN |
Definition at line 1664 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, and t_FeII::nFeIILevel.
| void FeIIPunchLines | ( | FILE * | ioPUN | ) |
called by FeIIPunchLevels, this creates the punch feii line intensity
| ioPUN |
Definition at line 1745 of file atom_feii.cpp.
References DEBUG_ENTRY, t_transition::Emis, Fe2LevN, FeII, t_LineSave::ipNormWavL, t_LineSave::lgLineEmergent, LineSave, LineSv, t_FeII::nFeIILevelAlloc, t_LineSave::ScaleNormLine, t_tag_LineSv::sumlin, and t_emission::TauIn.
| void FeIIPunchLineStuff | ( | FILE * | io, | |
| realnum | xLimit, | |||
| long | index | |||
| ) |
include FeII lines in punched optical depths, etc, called from PunchLineStuff
| io | ||
| xLimit | ||
| index |
Definition at line 3015 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, t_FeII::nFeIILevel, and pun1Line().

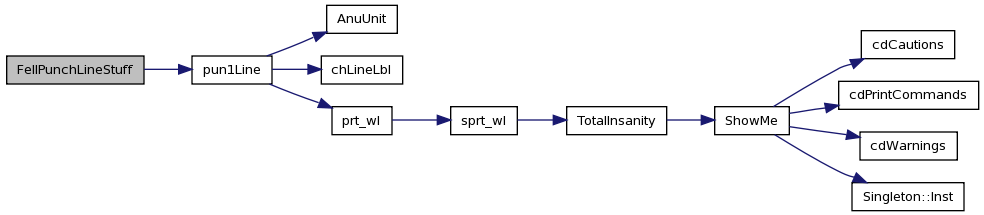

Here is the call graph for this function:
| void FeIIPunchOpticalDepth | ( | FILE * | ioPUN | ) |
called by FeIIPunchLevels, this creates the punch feii line optical depths
| ioPUN |
Definition at line 1710 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, and t_FeII::nFeIILevelAlloc.
| void FeIIPunData | ( | FILE * | ioPUN, | |
| bool | lgDoAll | |||
| ) |
punch line data for FeII atom
| ioPUN | io unit for punch | |
| lgDoAll | punch all levels if true, only subset if false |
Definition at line 2094 of file atom_feii.cpp.
References cdEXIT, DEBUG_ENTRY, Fe2LevN, FeII, ioQQQ, MIN2, ncs1, t_FeII::nFeIILevel, and Punch1LineData().

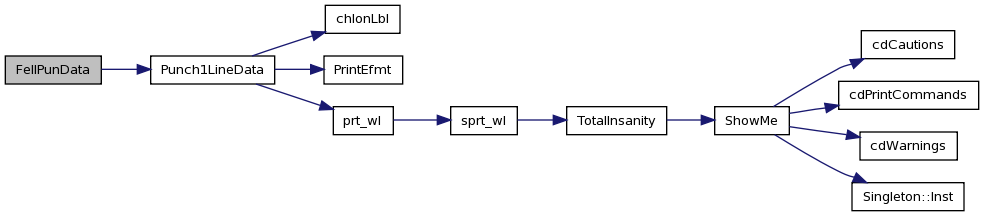

Here is the call graph for this function:
| void FeIIPunDepart | ( | FILE * | ioPUN, | |
| bool | lgDoAll | |||
| ) |
punch some departure coef for large atom, set with punch feii departure command
| ioPUN | ||
| lgDoAll | option to punch all dep coef if true |
Definition at line 2166 of file atom_feii.cpp.
References DEBUG_ENTRY, FeII, FeIIPun1Depart(), t_FeII::nFeIILevel, and NLEVDEP.
Here is the call graph for this function:
| void FeIIPunPop | ( | FILE * | ioPUN, | |
| bool | lgPunchRange, | |||
| long int | ipRangeLo, | |||
| long int | ipRangeHi, | |||
| bool | lgPunchDensity | |||
| ) |
punch some level pops for large atom, set with punch feii level populations command
| ioPUN | ||
| lgPunchRange | punch range of levels if true, only selected subset if false | |
| ipRangeLo | if ipPunchRange is true, this is lower bound of range on C scale | |
| ipRangeHi | if ipPunchRange is true, this is upper bound of range on C scale | |
| lgPunchDensity | flag saying whether to punch density (cm-3, true) or relative population (flase) |
Definition at line 2333 of file atom_feii.cpp.
References ASSERT, DEBUG_ENTRY, dense, Fe2LevelPop, FeII, ipIRON, t_FeII::nFeIILevel, NLEVPOP, SDIV(), and t_dense::xIonDense.
Here is the call graph for this function:
| double FeIIRadPress | ( | void | ) |
rad pre due to FeII lines called in PresTotCurrent
Definition at line 3033 of file atom_feii.cpp.
References DEBUG_ENTRY, t_transition::Emis, Fe2LevN, FeII, t_transition::Hi, t_FeII::nFeIILevel, t_quantumState::Pop, t_emission::PopOpc, PressureRadiationLine(), and SMALLFLOAT.
Here is the call graph for this function:
| void FeIIReset | ( | void | ) |
initialize some variables, called by zero
Definition at line 2249 of file atom_feii.cpp.
References DEBUG_ENTRY, FeII, t_FeII::nFeIILevel, and t_FeII::nFeIILevelAlloc.
called in LineSet4, this sums over FeII bands and returns intensities args are lower and upper edges of bands as set in fe2bands.dat
| wl1 | ||
| wl2 |
Definition at line 1348 of file atom_feii.cpp.
References ASSERT, DEBUG_ENTRY, dense, Fe2LevN, FeII, ipIRON, t_FeII::nFeIILevel, and t_dense::xIonDense.
Referenced by lines_lv1_k_zn().
| void FeIIZero | ( | void | ) |
zero out variables that deal with FeII, called by zero
Definition at line 2264 of file atom_feii.cpp.
References t_FeII::ddT_Fe2_large_cool, DEBUG_ENTRY, t_FeII::Fe2_large_cool, t_FeII::Fe2_large_heat, t_FeII::fe2con_wl1, t_FeII::fe2con_wl2, t_FeII::fe2ener, t_FeII::fe2thresh, FeII, ipCRD, ipCRDW, t_FeII::ipRedisFcnResonance, t_FeII::ipRedisFcnSubordinate, t_FeII::lgFeIILargeOn, lgFeIIMalloc, t_FeII::lgLyaPumpOn, t_FeII::lgPrint, t_FeII::lgSimulate, t_FeII::lgSlow, t_FeII::nfe2con, NFE2LEVN, t_FeII::nFeIILevel, and t_FeII::nFeIILevelAlloc.
Referenced by zero().
| void ParseAtomFeII | ( | char * | chCard | ) |
ParseAtomFeII parse the atom feii command
Definition at line 2799 of file atom_feii.cpp.
References cdEXIT, DEBUG_ENTRY, t_FeII::fe2con_wl1, t_FeII::fe2con_wl2, FeII, FFmtRead(), INPUT_LINE_LENGTH, ioQQQ, ipCRD, ipCRDW, ipPRD, t_FeII::ipRedisFcnResonance, t_FeII::ipRedisFcnSubordinate, t_FeII::lgFeIILargeOn, lgFeIIMalloc, t_FeII::lgPrint, t_FeII::lgSimulate, t_FeII::lgSlow, t_FeII::nfe2con, NFE2LEVN, t_FeII::nFeIILevel, t_FeII::nFeIILevelAlloc, nMatch(), NoNumb(), and TotalInsanity().
Referenced by ParseTest().

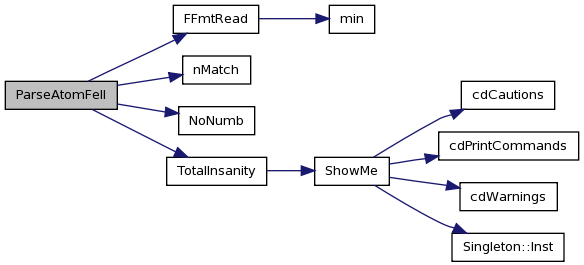

Here is the call graph for this function:
| void PunFeII | ( | FILE * | io | ) |
Definition at line 2995 of file atom_feii.cpp.
References DEBUG_ENTRY, Fe2LevN, FeII, and t_FeII::nFeIILevel.
Referenced by PunchSpecial().
Referenced by AssertFeIIDep(), t_fe2ovr_la::atoms_fe2ovr(), Fe2_cooling(), FeII_Colden(), FeII_LineZero(), FeII_OTS(), FeII_RT_Make(), FeII_RT_Out(), FeII_RT_tau_reset(), FeII_RT_TauInc(), FeIIAccel(), FeIIAddLines(), FeIICollRatesBoltzmann(), FeIICreate(), FeIIFillLow16(), FeIIIntenZero(), FeIILevelPops(), FeIILyaPump(), FeIIPoint(), FeIIPun1Depart(), FeIIPunchColden(), FeIIPunchLevels(), FeIIPunchLines(), FeIIPunchLineStuff(), FeIIPunchOpticalDepth(), FeIIPunData(), FeIIPunDepart(), FeIIPunPop(), FeIIRadPress(), FeIIReset(), FeIISumBand(), FeIIZero(), lines_lv1_k_zn(), ParseAtomFeII(), ParseDont(), ParsePunch(), and PunFeII().
| bool lgFeIIMalloc |
this is set true when space is allocated for the FeII arrays, once this happens FeII.nFeIILevel cannot be changed with the atom feii levels command set false in cddefines
Definition at line 95 of file cdinit.cpp.
Referenced by FeIICreate(), FeIIZero(), and ParseAtomFeII().
| const int NFE2PR = 61 |
number of points in partition function table
Definition at line 337 of file atomfeii.h.
Referenced by t_fe2ovr_la::fe2par(), and t_fe2ovr_la::t_fe2ovr_la().
| const int NFEII = 373 |
number of FeII lines in Fred's atom
Definition at line 335 of file atomfeii.h.
Referenced by t_fe2ovr_la::atoms_fe2ovr(), t_fe2ovr_la::init_pointers(), t_fe2ovr_la::t_fe2ovr_la(), t_fe2ovr_la::tau_inc(), and t_fe2ovr_la::zero_opacity().
