cloudy: /home66/gary/public_html/cloudy/c08_branch/source/cddrive.cpp File Reference

double cdB21cm ( void )

cdB21cm returns B as measured by 21 cm assumes tangled field weighted by n(H0)/T

Definition at line 1678 of file cddrive.cpp.

References t_mean::B_HarMeanTempRadius, DEBUG_ENTRY, mean, and SMALLFLOAT.

void cdCautions ( FILE * )

produces list of cautions

Definition at line 239 of file cddrive.cpp.

References t_warnings::chCaunln, DEBUG_ENTRY, t_warnings::ncaun, and warnings.

Referenced by cdErrors(), PunLineIntensity(), punResults(), and ShowMe().

STATIC void cdClock ( struct timeval * clock_dat )

Definition at line 457 of file cddrive.cpp.

References cdEXIT, DEBUG_ENTRY, and ioQQQ.

Referenced by cdExecTime(), and cdSetExecTime().

void cdClosePunchFiles ( void )

wrapper to close all punch files

Definition at line 2111 of file cddrive.cpp.

References ClosePunchFiles(), and DEBUG_ENTRY.

Here is the call graph for this function:

int cdColm	(	const char *	chLabel,
		long int	ion,
		double *	theocl
	)

Definition at line 625 of file cddrive.cpp.

References t_colden::C1Colden, t_colden::C2Colden, t_colden::C3Colden, caps(), cdH2_colden(), t_elementnames::chElementNameShort, t_colden::colden, colden, DEBUG_ENTRY, elementnames, findspecies(), t_colden::He123S, molecule::hevcol, ioQQQ, ipCOL_H2g, ipCOL_H2p, ipCOL_H2s, ipCOL_H3p, ipCOL_HeHp, ipCOL_HMIN, ipHYDROGEN, LIMELM, MAX2, mean, t_colden::O1Colden, t_colden::Si2Colden, and t_mean::xIonMeans.

Referenced by lgCheckAsserts(), PrtColumns(), punch_average(), and punch_colden().

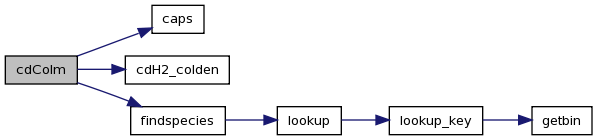

Here is the call graph for this function:

double cdCooling_last ( void )

cdCooling_last The returns the total cooling (erg cm^-3 s^-1) for the last computed zone

Definition at line 346 of file cddrive.cpp.

References t_thermal::ctot, and thermal.

void cdDate ( char chString[] )

cdDate The argument is a string with at least 8 char that will receive a null terminated string with the date of the current version of the code.

Definition at line 374 of file cddrive.cpp.

References Singleton< T >::Inst().

Here is the call graph for this function:

void cdDepth_depth ( double cdDepth[] )

returns depth structure of previous model

Parameters:

cdDepth[]

Definition at line 965 of file cddrive.cpp.

References DEBUG_ENTRY, t_struc::depth, nzone, and struc.

long int cdDLine	(	char *	chLabel,
		realnum	wavelength,
		double *	relint,
		double *	absint
	)

cdDLine get the predicted emergent line intensity, also index for line in stack

Parameters:

	*chLabel
	wavelength	wavelength of line as printed by code
	*relint	linear intensity relative to normalization line
	*absint	log of luminosity or intensity of line

Returns:: returns array index for line in array stack if we found the line, or false==0 if we did not find the line

Definition at line 1486 of file cddrive.cpp.

References ASSERT, cap4(), t_radius::Conv2PrtInten, DEBUG_ENTRY, t_LineSave::ipNormWavL, LineSave, LineSv, t_LineSave::nsum, radius, t_LineSave::ScaleNormLine, t_tag_LineSv::sumlin, and WavlenErrorGet().

Here is the call graph for this function:

int cdDrive ( void )

cdDrive This command actually computes a model. It returns 0 if the calculation was successful, and 1 if an error condition was encountered

Definition at line 77 of file cddrive.cpp.

References cdEXIT, ClosePunchFiles(), cloudy(), DEBUG_ENTRY, bad_mpi::failMode(), grid_do(), InitCoreload(), input, ioQQQ, lgAbort, lgcdInitCalled, t_optimize::lgNoVary, t_optimize::lgOptimr, t_trace::lgTrace, t_optimize::lgVaryOn, t_input::nSave, nSimThisCoreload, optimize, and trace.

Referenced by main().

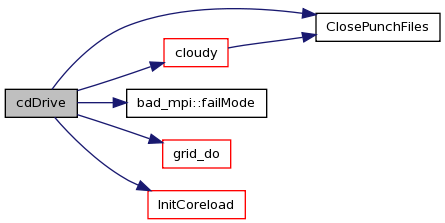

Here is the call graph for this function:

double cdEDEN_last ( void )

cdEDEN_last return electron density of last zone

Definition at line 403 of file cddrive.cpp.

References dense, and t_dense::eden.

long int cdEmis	(	char *	chLabel,
		realnum	wavelength,
		double *	emiss
	)

cdEmis This routine finds the local emissivity for any line. The first argument is the 4 character (null terminated) label as it appears in the standard output. The second argument is float wavelength as it appears in the standard output. The emissivity (erg /cm^3 /s) is returned as the last parameter. cdEms returns the index of the line in the stack if it was found, the negative of the total number of lines in the stack if it could not find the line

Parameters:

	*chLabel	4 char null terminated string label
	wavelength	line wavelength
	*emiss	the vol emissivity of this line in last computed zone

Returns:: return value will be index of line within stack

Definition at line 548 of file cddrive.cpp.

References cap4(), caps(), DEBUG_ENTRY, INPUT_LINE_LENGTH, t_LineSave::lgLineEmergent, LineSave, LineSv, t_LineSave::nsum, and WavlenErrorGet().

Referenced by punch_line().

Here is the call graph for this function:

void cdEmis_ip	(	long int	ipLine,
		double *	emiss
	)

cdEms_ip obtain the local emissivity for a line with known index

Parameters:

	ipLine	index of the line in the stack
	*emiss	the vol emissivity of this line in last computed zone

Definition at line 604 of file cddrive.cpp.

References ASSERT, DEBUG_ENTRY, t_tag_LineSv::emslin, t_LineSave::lgLineEmergent, LineSave, LineSv, and t_LineSave::nsum.

Referenced by punch_line().

void cdErrors ( FILE * )

cdErrors After the calculation is completed, a summary of all error messages can be be generated by calling this routine. The argument is the output file

Parameters:

[out] *ioOUT output file

Definition at line 899 of file cddrive.cpp.

References cdCautions(), cdNwcns(), cdWarnings(), t_input::chTitle, DEBUG_ENTRY, and input.

Here is the call graph for this function:

double cdExecTime ( void )

cdExecTime returns the elapsed time cpu time (sec) that has elapsed since cdInit called cdSetExecTime.

Definition at line 494 of file cddrive.cpp.

References before, cdClock(), cdEXIT, DEBUG_ENTRY, ioQQQ, and lgCalled.

Referenced by main().

Here is the call graph for this function:

double cdHeating_last ( void )

cdHeating_last returns the total heating (erg cm^-3 s^-1) for the last computed zone

Definition at line 389 of file cddrive.cpp.

References t_thermal::htot, and thermal.

void cdInp ( FILE * )

cdInp - redirect input stream to open file

Definition at line 1641 of file cddrive.cpp.

References DEBUG_ENTRY, and ioStdin.

Referenced by main().

int cdIonFrac	(	const char *	chLabel,
		long int	IonStage,
		double *	fracin,
		const char *	chWeight,
		bool	lgDensity
	)

 * cdIonFrac
 * This returns the ionization fraction for any element included in the calculation.
 * The first parameter is 4 char null terminated string giving the first 4 letters of
 * element name as spelled by Cloudy.
 * The second parameter is an integer giving the ionization stage,
 * 1 for atom, 2 for first ion, etc.
 * The third parameter returns the predicted ionization fraction of that ion stage.
 * The last parameter is an 8 character + null string that says either "volume" or "radius",
 * to specify whether the average should be weighted by volume or radius.
 * The return value is 0 if the routine could find the species and
 * non-zero if it failed to find the element

Parameters:

	*chLabel	four char string, null terminated, giving the element name
	IonStage	IonStage is ionization stage, 1 for atom, up to N+1 where N is atomic number
	*fracin	will be fractional ionization
	*chWeight	how to weight the average, must be "VOLUME" or "RADIUS"
	lgDensity	if true then weighting also has electron density, if false then only volume or radius

Definition at line 1061 of file cddrive.cpp.

References caps(), t_elementnames::chElementNameShort, DEBUG_ENTRY, elementnames, INPUT_LINE_LENGTH, ioQQQ, ipHYDROGEN, LIMELM, MeanIonRadius(), and MeanIonVolume().

Referenced by DynaPunchTimeDep(), lgCheckAsserts(), and punch_average().

Here is the call graph for this function:

long int cdLine	(	const char *	chLabel,
		realnum	wavelength,
		double *	relint,
		double *	absint
	)

cdLine This routine finds the predicted intensity of any line in the standard output.

Parameters:

	*chLabel	1st parameter is the 4-char label + null terminated label, as it appears in the output.
	wavelength	2nd parameter is the float wavelength in Angstroms, not how it appears in printout. The first four digits must agree with the number in the printout, but the units must be Angstroms. 3rd parameter is the predicted intensity relative to the normalization line. 4th par is the log of the predicted luminosity or intensity of the line (ergs).
	*relint	5th is pointer to relative intensity, a double that is returned
	*absint	6th is pointer to log of absolute intensity

Returns:: return value: The routine returns an index (>0) of the array element within stack if it finds the line, It returns the negative of the total number of lines if it could not find the line. (this is a debugging aid) note that this returns a long int since there are LOTS of lines this also IS NOT the standard C convention for success or failure

Definition at line 1270 of file cddrive.cpp.

References ASSERT, BIGFLOAT, cap4(), t_radius::Conv2PrtInten, DEBUG_ENTRY, INPUT_LINE_LENGTH, ioQQQ, t_LineSave::ipNormWavL, t_LineSave::lgLineEmergent, LineSave, LineSv, t_LineSave::nsum, prt_wl(), radius, t_LineSave::ScaleNormLine, t_tag_LineSv::sumlin, TotalInsanity(), and WavlenErrorGet().

Referenced by Drive_cdLine(), lgCheckAsserts(), lines(), lines_table(), optimize_func(), PrtComment(), PrtLineSum(), and punch_line().

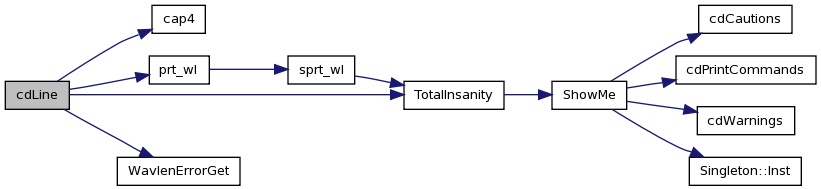

Here is the call graph for this function:

void cdLine_ip	(	long int	ipLine,
		double *	relint,
		double *	absint
	)

cdLine_ip get the predicted line intensity, using index for line in stack

Parameters:

	ipLine
	*relint	linear intensity relative to normalization line
	*absint	log of luminosity or intensity of line

Definition at line 1434 of file cddrive.cpp.

References ASSERT, t_radius::Conv2PrtInten, DEBUG_ENTRY, t_LineSave::ipNormWavL, t_LineSave::lgLineEmergent, LineSave, LineSv, t_LineSave::nsum, radius, t_LineSave::ScaleNormLine, and t_tag_LineSv::sumlin.

Referenced by lgCheckAsserts(), and PrtLineSum().

long int cdLineListPunch ( FILE * io )

create a file with a list of all emission lines punched, and their index within the emission line stack

Parameters:

io

a file handle pointing to a file that is read for writing - the calling routine must close it

Returns:: returns total number of lines in the list

Definition at line 1237 of file cddrive.cpp.

References DEBUG_ENTRY, LineSave, LineSv, t_LineSave::nsum, prt_wl(), and wavelength.

Here is the call graph for this function:

void cdNoExec ( void )

cdNoExec This provides option to have the code prepare the initial conditions for a model, but not actually try to compute the model. I use this when setting up a large grid so that I can quickly run through the full grid as a check that the commands are entered properly and the parameters I am going to vary do so properly. The command is then commented out when the grid is properly set up.

Definition at line 417 of file cddrive.cpp.

References DEBUG_ENTRY, t_noexec::lgNoExec, and noexec.

void cdNotes ( FILE * )

produces list of Notes

Definition at line 322 of file cddrive.cpp.

References t_warnings::chNoteln, DEBUG_ENTRY, t_warnings::nnote, and warnings.

void cdNwcns	(	bool *	lgAbort,
		long int *	NumberWarnings,
		long int *	NumberCautions,
		long int *	NumberNotes,
		long int *	NumberSurprises,
		long int *	NumberTempFailures,
		long int *	NumberPresFailures,
		long int *	NumberIonFailures,
		long int *	NumberNeFailures
	)

cdNwcns This command returns the number of warnings, cautions, notes, surprises, assorted types of failures found the last computed model

Parameters:

	*lgAbort	abort status, if non-zero then big problems happened
	*NumberWarnings	the number of warnings
	*NumberCautions	the number of cautions
	*NumberNotes	the number of notes
	*NumberSurprises	the number of surprises
	*NumberTempFailures	the number of temperature convergence failures
	*NumberPresFailures	the number of pressure convergence failures
	*NumberIonFailures	the number of ionization convergence failures
	*NumberNeFailures	the number of electron density convergence failures

Definition at line 1583 of file cddrive.cpp.

References conv, DEBUG_ENTRY, lgAbort, t_warnings::nbang, t_warnings::ncaun, t_conv::nIonFail, t_conv::nNeFail, t_warnings::nnote, t_conv::nPreFail, t_conv::nTeFail, t_warnings::nwarn, and warnings.

Referenced by cdErrors(), and main().

long int cdnZone ( void )

cdnZone returns number of zones

Definition at line 1038 of file cddrive.cpp.

References nzone.

void cdOutp ( FILE * )

cdOutp This tells the code where to send output. The argument must be a previously opened file handle. All output will go to this file. If this routine is not called then all output will go to stdout, the standard c output

Definition at line 1625 of file cddrive.cpp.

References DEBUG_ENTRY, and ioQQQ.

Referenced by main().

void cdPressure_depth	(	double	TotalPressure[],
		double	GasPressure[],
		double	RadiationPressure[]
	)

cdPressure_depth This returns the pressure and its constituents for the last iteration. space was allocated in the calling routine for the vectors - before calling this, cdnZone should have been called to get the number of zones, then space allocated for the arrays

Parameters:

	TotalPressure[]	total pressure, all forms
	GasPressure[]	gas pressure
	RadiationPressure[]	radiation pressure

Definition at line 990 of file cddrive.cpp.

References DEBUG_ENTRY, t_struc::GasPressure, nzone, t_struc::pres_radiation_lines_curr, t_struc::pressure, and struc.

void cdPressure_last	(	double *	TotalPressure,
		double *	GasPressure,
		double *	RadiationPressure
	)

cdPressure_last This returns the pressure and its constituents for the last computed zone.

Parameters:

	*TotalPressure	total pressure, all forms
	*GasPressure	gas pressure
	*RadiationPressure	radiation pressure

Definition at line 1017 of file cddrive.cpp.

References DEBUG_ENTRY, t_pressure::pres_radiation_lines_curr, t_pressure::PresGasCurr, pressure, and t_pressure::PresTotlCurr.

void cdPrintCommands ( FILE * )

cdPrintCommands( FILE *) This routine prints all input commands into file whose handle is the argument

Parameters:

*ioOUT

[out] output file handle

Definition at line 526 of file cddrive.cpp.

References t_input::chCardSav, input, and t_input::nSave.

Referenced by ShowMe().

void cdPrtWL	(	FILE *	io,
		realnum	wl
	)

cdPrtWL print line wavelengths in Angstroms in the standard format - a wrapper for prt_wl which must be kept parallel with sprt_wl both of those live in pdt.c

Parameters:

`[out]`	*ioOUT	output file handle
`[in]`	the	emission line wavelength

Definition at line 170 of file cddrive.cpp.

References DEBUG_ENTRY, and prt_wl().

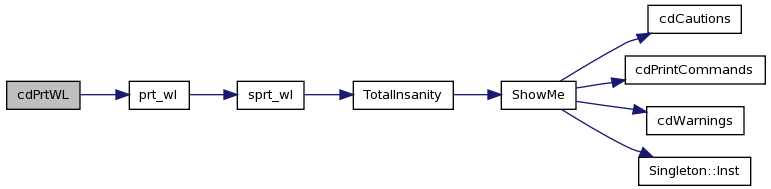

Here is the call graph for this function:

int cdRead ( const char * )

cdRead This sends commands to the code. The normal set of commands described in Part I of Hazy must be entered into a null-terminated string. These strings are then fed to Cloudy with this command. The function returns the number of commands that can still be entered before the command stack is full. The code will stop if you try to continue giving it commands after the command has returned zero. This return value is the opposite of the standard - a non-zero return is normal

Definition at line 1936 of file cddrive.cpp.

References caps(), cdEXIT, t_input::chCardSav, DEBUG_ENTRY, grid, input, INPUT_LINE_LENGTH, ioQQQ, lgcdInitCalled, t_grid::lgGrid, lgInputComment(), t_optimize::lgNoVary, t_optimize::lgOptimr, t_input::lgSetNoBuffering, t_trace::lgTrace, t_optimize::lgVaryOn, t_grid::nGridCommands, NKRD, nMatch(), t_input::nSave, optimize, TotalInsanity(), and trace.

Referenced by main().

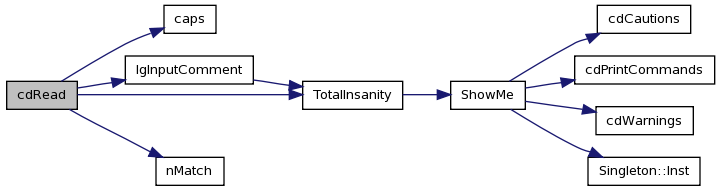

Here is the call graph for this function:

void cdReasonGeo ( FILE * )

This prints the reason why the model stopped, and the model geometry, on the io file pointed to by the file handle

Definition at line 188 of file cddrive.cpp.

References t_warnings::chRgcln, DEBUG_ENTRY, and warnings.

void cdSetExecTime ( void )

normally called by cdInit, this routine sets initial variables for times

Definition at line 487 of file cddrive.cpp.

References before, cdClock(), and lgCalled.

Referenced by cdInit().

Here is the call graph for this function:

void cdSurprises ( FILE * )

produces list of surprises

Definition at line 295 of file cddrive.cpp.

References t_warnings::chBangln, DEBUG_ENTRY, t_warnings::nbang, and warnings.

void cdTalk ( bool )

cdTalk tells the code whether or not to produce any of its normal output, If the argument is true (or if it is not called at all) it produces output, produces no output if it is false

Definition at line 1657 of file cddrive.cpp.

References called, DEBUG_ENTRY, t_called::lgTalk, and t_called::lgTalkForcedOff.

int cdTemp	(	const char *	chLabel,
		long int	IonStage,
		double *	TeMean,
		const char *	chWeight
	)

Todo:: 2 this should have a last argument like cdIonFrac for whether or not weighting is wrt electron density

Definition at line 1717 of file cddrive.cpp.

References caps(), t_elementnames::chElementNameShort, DEBUG_ENTRY, elementnames, t_mean::H2MeanTempRadius, t_mean::H2MeanTempVolume, t_mean::H_21cm_spin_mean_radius, t_mean::HarMeanTempRadius, t_mean::HarMeanTempVolume, HFLines, INPUT_LINE_LENGTH, ioQQQ, ipH1s, ipH2p, ipH_LIKE, ipHYDROGEN, LIMELM, mean, MeanIonRadius(), MeanIonVolume(), SDIV(), SMALLFLOAT, t_mean::TempMeanRadius, t_mean::TempMeanVolume, and Transitions.

Referenced by DynaPunchTimeDep(), lgCheckAsserts(), optimize_func(), punch_average(), and timestep_next().

Here is the call graph for this function:

double cdTemp_last ( void )

cdTemp_last returns the temperature of the last zone on last iteration

Definition at line 1050 of file cddrive.cpp.

References phycon, and t_phycon::te.

void cdTimescales	(	double *	TTherm,
		double *	THRecom,
		double *	TH2
	)

cdTimescales returns the longest thermal, recombination, and H2 formation timescales that occurred in the previous model

Parameters:

	*TTherm	the thermal cooling timescale
	*THRecom	the hydrogen recombination timescale
	*TH2	the H2 formation timescale

Definition at line 262 of file cddrive.cpp.

References DEBUG_ENTRY, MAX2, t_timesc::time_H2_Dest_longest, t_timesc::time_H2_Form_longest, t_timesc::time_Hrecom_long, t_timesc::time_therm_long, and timesc.

void cdVersion ( char chString[] )

cdVersion The argument is a string with at least 8 characters that will receive a null terminated string with the version number of the code.

Definition at line 359 of file cddrive.cpp.

References Singleton< T >::Inst().

Here is the call graph for this function:

void cdWarnings ( FILE * )

These routines produce lists of warnings, cautions, notes, surprises These are the routines that are called by cdErrors. Normally cdErrors and not these routines would be called by the user.

Definition at line 211 of file cddrive.cpp.

References t_warnings::chWarnln, DEBUG_ENTRY, t_warnings::nwarn, and warnings.

Referenced by cdErrors(), optimize_func(), PunLineIntensity(), punResults(), and ShowMe().

long debugLine ( realnum wavelength )

debugLine provides a debugging hook into the main line array loops over whole array and finds every line that matches length, the wavelength, the argument to the function put breakpoint inside if test return value is number of matches, also prints all matches

Parameters:

`[in]`	the	emission line wavelength
`[out]`	the	number of matches

Definition at line 1205 of file cddrive.cpp.

References LineSave, LineSv, t_LineSave::nsum, and WavlenErrorGet().

Here is the call graph for this function:

struct timeval before [static]

Definition at line 454 of file cddrive.cpp.

Referenced by cdExecTime(), and cdSetExecTime().

bool lgCalled = false [static]

Definition at line 438 of file cddrive.cpp.

Referenced by cdExecTime(), cdSetExecTime(), ContBandsCreate(), da(), FeIIBandsCreate(), FeIIContCreate(), and ParseTable().


Functions
int	cdDrive (void)
void	cdPrtWL (FILE *io, realnum wl)
void	cdReasonGeo (FILE *ioOUT)
void	cdWarnings (FILE *ioPNT)
void	cdCautions (FILE *ioOUT)
void	cdTimescales (double TTherm, double THRecom, double *TH2)
void	cdSurprises (FILE *ioOUT)
void	cdNotes (FILE *ioOUT)
double	cdCooling_last (void)
void	cdVersion (char chString[])
void	cdDate (char chString[])
double	cdHeating_last (void)
double	cdEDEN_last (void)
void	cdNoExec (void)
STATIC void	cdClock (struct timeval *clock_dat)
void	cdSetExecTime (void)
double	cdExecTime (void)
void	cdPrintCommands (FILE *ioOUT)
long int	cdEmis (char chLabel, realnum wavelength, double emiss)
void	cdEmis_ip (long int ipLine, double *emiss)
int	cdColm (const char chLabel, long int ion, double theocl)
void	cdErrors (FILE *ioOUT)
void	cdDepth_depth (double cdDepth[])
void	cdPressure_depth (double TotalPressure[], double GasPressure[], double RadiationPressure[])
void	cdPressure_last (double PresTotal, double PresGas, double *PresRad)
long int	cdnZone (void)
double	cdTemp_last (void)
int	cdIonFrac (const char chLabel, long int IonStage, double fracin, const char *chWeight, bool lgDensity)
long	debugLine (realnum wavelength)
long int	cdLineListPunch (FILE *io)
long int	cdLine (const char chLabel, realnum wavelength, double relint, double *absint)
void	cdLine_ip (long int ipLine, double relint, double absint)
long int	cdDLine (char chLabel, realnum wavelength, double relint, double *absint)
void	cdNwcns (bool lgAbort_ret, long int NumberWarnings, long int NumberCautions, long int NumberNotes, long int NumberSurprises, long int NumberTempFailures, long int NumberPresFailures, long int NumberIonFailures, long int *NumberNeFailures)
void	cdOutp (FILE *ioOut)
void	cdInp (FILE *ioInp)
void	cdTalk (bool lgTOn)
double	cdB21cm (void)
int	cdTemp (const char chLabel, long int IonStage, double TeMean, const char *chWeight)
int	cdRead (const char *chInputLine)
void	cdClosePunchFiles (void)
Variables
static bool	lgCalled = false
static struct timeval	before

/home66/gary/public_html/cloudy/c08_branch/source/cddrive.cpp File Reference

Functions

Variables

Function Documentation

Variable Documentation
