#include <conv.h>

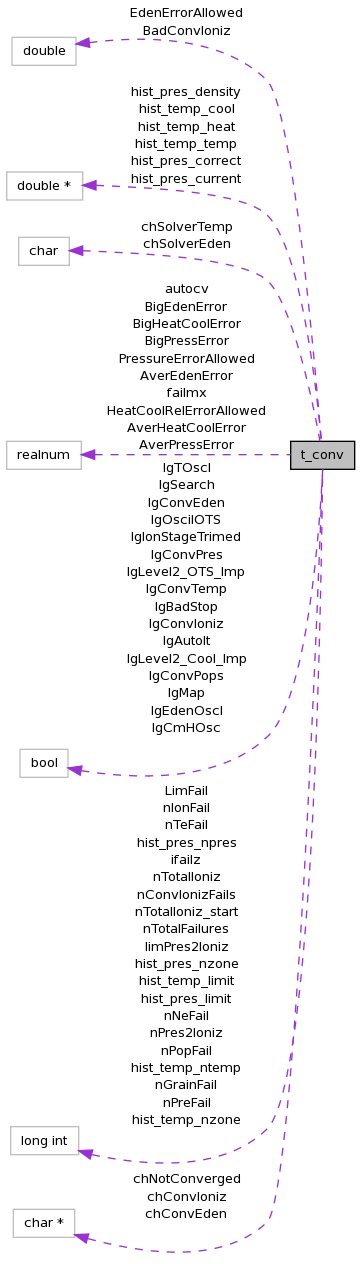

Collaboration diagram for t_conv:
Definition at line 83 of file conv.h.
a convergence criteria
Definition at line 223 of file conv.h.
Referenced by ConvIterCheck(), and zero().
remember the average electron density error
Definition at line 127 of file conv.h.
Referenced by ConvInitSolution(), and zero().
| double t_conv::BadConvIoniz[2] |
when the lgConvIoniz flag is set false, the old and new numbers, the reason for the lack of convergence, should be set to following
Definition at line 104 of file conv.h.
Referenced by ConvIoniz(), and lgIonizConverg().
remember the biggest electron density error as test of convergence quality
Definition at line 184 of file conv.h.
Referenced by ConvInitSolution(), and zero().
remember the biggest and average heating-cooling error
Definition at line 130 of file conv.h.
Referenced by ConvInitSolution(), and zero().
remember the biggest and average pressure error
Definition at line 134 of file conv.h.
Referenced by ConvInitSolution(), and zero().
| char* t_conv::chConvEden |
this says why the electron density did not converge,
Definition at line 86 of file conv.h.
Referenced by ConvEdenIoniz().
| char* t_conv::chConvIoniz |
this says why the ionization did not converge, reasons can be a large change in the level of ionization, or in the heating
Definition at line 90 of file conv.h.
Referenced by ConvEdenIoniz(), ConvFail(), ConvIoniz(), and ion_solver().
| char* t_conv::chNotConverged |
this gives the reason the model was declared not converged when 'iter to convergence' command is given
Definition at line 94 of file conv.h.
Referenced by ConvEdenIoniz(), ConvIterCheck(), and PrtComment().
| char t_conv::chSolverEden[20] |
which electron density solver to use? set with set eden solver command, simple and new
Definition at line 209 of file conv.h.
Referenced by ConvEdenIoniz(), ParseSet(), and zero().
| char t_conv::chSolverTemp[20] |
which temperature density solver to use? set with set eden solver command, default and brent
Definition at line 213 of file conv.h.
Referenced by ConvTempEdenIoniz(), ParseSet(), and zero().
| double t_conv::EdenErrorAllowed |
this is relative error in the electron density we want set in zero to 0.01 reset with set eden error command
Definition at line 228 of file conv.h.
Referenced by advection_set_detault(), ConvEdenIoniz(), GrainDrive(), hmole(), lgConvEden(), ParseSet(), radius_increment(), and zero().
failmx is largest relative error in heating cooling match
Definition at line 175 of file conv.h.
Referenced by ConvFail().
allowed error in heating - cooling balance, set with TOLERANCE command default set in zerologic
Definition at line 237 of file conv.h.
Referenced by advection_set_detault(), ConvFail(), ConvInitSolution(), ConvTempEdenIoniz(), lgConvTemp(), lgCoolHeatCheckConverge(), ParseSet(), TeBrent(), and zero().
| double * t_conv::hist_pres_correct |
| double * t_conv::hist_pres_current |
| double* t_conv::hist_pres_density |
these are used to retain the density pressure history in current zone, can be output with punch pressure history
Definition at line 241 of file conv.h.
Referenced by PressureChange().
| long int t_conv::hist_pres_limit |
| long int t_conv::hist_pres_npres |
| long int t_conv::hist_pres_nzone |
| double * t_conv::hist_temp_cool |
| double * t_conv::hist_temp_heat |
| long int t_conv::hist_temp_limit |
| long int t_conv::hist_temp_ntemp |
| long int t_conv::hist_temp_nzone |
| double* t_conv::hist_temp_temp |
these are used to retain the temp/heat/cooling history in current zone, can be output with punch temperature history
Definition at line 246 of file conv.h.
Referenced by ConvEdenIoniz().
| long int t_conv::ifailz[12] |
zones where converge problems occurred
Definition at line 205 of file conv.h.
Referenced by ConvFail().
| bool t_conv::lgAutoIt |
says "interate to convergence" command given
Definition at line 220 of file conv.h.
Referenced by ConvIterCheck(), PrtComment(), and zero().
| bool t_conv::lgBadStop |
flag saying that calculation stopped for bad reason mostly set in lgEndfun
Definition at line 217 of file conv.h.
Referenced by PrtComment().
| bool t_conv::lgCmHOsc |
this says whether cooling-heating deriv is changing sign
Definition at line 141 of file conv.h.
Referenced by ConvFail(), and ConvTempEdenIoniz().
| bool t_conv::lgConvEden |
true when the electron density has converged
Definition at line 160 of file conv.h.
Referenced by ConvEdenIoniz(), ConvPresTempEdenIoniz(), ConvTempEdenIoniz(), lgConvEden(), and zero().
| bool t_conv::lgConvIoniz |
this flag is used in ConvPresTempEdenIoniz to check that ionization has converged
Definition at line 97 of file conv.h.
Referenced by ConvFail(), ConvIoniz(), ConvPresTempEdenIoniz(), ConvTempEdenIoniz(), ion_solver(), and RT_OTS_PrtRate().
| bool t_conv::lgConvPops |
this flag is used in ConvPresTempEdenIoniz to check that populations have converged
Definition at line 100 of file conv.h.
Referenced by ConvFail(), ConvPresTempEdenIoniz(), and hmole().
| bool t_conv::lgConvPres |
true if pressure is converged, false if not
Definition at line 157 of file conv.h.
Referenced by ConvPresTempEdenIoniz(), lgConvPres(), PressureChange(), and zero().
| bool t_conv::lgConvTemp |
true if temperature is converged, false if not
Definition at line 154 of file conv.h.
Referenced by ConvFail(), ConvPresTempEdenIoniz(), ConvTempEdenIoniz(), lgConvTemp(), and zero().
| bool t_conv::lgEdenOscl |
this says whether electron density is changing sign
Definition at line 147 of file conv.h.
Referenced by ConvEdenIoniz(), and ConvFail().
flag set in ConvBase, saying whether ionization stage is trimmed down
Definition at line 138 of file conv.h.
Referenced by CoolDima(), ion_trim(), and RT_line_all().
true if level 2 lines were contributors to the cooling, set in dimacool
Definition at line 166 of file conv.h.
Referenced by CoolDima(), and zero().
| bool t_conv::lgMap |
lgMap is option to map failures
Definition at line 202 of file conv.h.
Referenced by ConvFail(), and zero().
| bool t_conv::lgOscilOTS |
this is true if ots rates are oscillating, and this is why ionization is not converged
Definition at line 151 of file conv.h.
Referenced by ConvInitSolution(), ConvIoniz(), and ConvTempEdenIoniz().
| bool t_conv::lgSearch |
conv.lgSearch is true during initial temp-ion search phase, false after first zone established
Definition at line 124 of file conv.h.
Referenced by atmol_popsolve(), ConvEdenIoniz(), ConvInitSolution(), ConvIoniz(), CoolDima(), CoolEvaluate(), eden_sum(), Fe2_cooling(), GrainCharge(), GrainChargeTemp(), GrainDrive(), H2_LevelPops(), hmole(), ion_solver(), ion_trim(), MyAssert(), PresTotCurrent(), radius_increment(), and RT_line_static().
| bool t_conv::lgTOscl |
this says whether temp is changing sign
Definition at line 144 of file conv.h.
Referenced by ConvFail(), and ConvTempEdenIoniz().
| long int t_conv::LimFail |
LimFail is limit to number of te failures, set with "failures" cmnd
Definition at line 199 of file conv.h.
Referenced by ConvFail(), grid_do(), and zero().
| long int t_conv::limPres2Ioniz |
a limit to the above, in case where one zone takes forever to not converge, usually very large, set with SET PRESIONIZ command
Definition at line 110 of file conv.h.
Referenced by ParseSet().
| long int t_conv::nConvIonizFails |
number of ConvIoniz ionization failures
Definition at line 193 of file conv.h.
Referenced by ConvEdenIoniz(), and ConvIoniz().
| long int t_conv::nGrainFail |
number of grain ionization balance failures
Definition at line 196 of file conv.h.
Referenced by ConvFail().
| long int t_conv::nIonFail |
nIonFail is number of ionization failures
Definition at line 187 of file conv.h.
Referenced by cdNwcns(), and ConvFail().
| long int t_conv::nNeFail |
nNeFail is number of electron density failures
Definition at line 181 of file conv.h.
Referenced by cdNwcns(), and ConvFail().
| long int t_conv::nPopFail |
nIonFail is number of level population failures
Definition at line 190 of file conv.h.
Referenced by ConvFail().
| long int t_conv::nPreFail |
nPreFail is number of pressure failures
Definition at line 178 of file conv.h.
Referenced by cdNwcns(), and ConvFail().
| long int t_conv::nPres2Ioniz |
this will count the number of ionizations in one call from ConPvPresTempIoniz
Definition at line 107 of file conv.h.
Referenced by ConvBase(), ConvEdenIoniz(), ConvInitSolution(), ConvIoniz(), ConvPresTempEdenIoniz(), CoolEvaluate(), hmole_reactions(), ion_photo(), lgIonizConverg(), PrtZone(), RT_line_all(), and zero().
| long int t_conv::nTeFail |
nTeFail number of temperature failures
Definition at line 172 of file conv.h.
Referenced by cdNwcns(), ConvFail(), and ShowMe().
| long int t_conv::nTotalFailures |
total number of all falures, used to trigger abort
Definition at line 169 of file conv.h.
Referenced by ConvFail().
| long int t_conv::nTotalIoniz |
counts the number of calls to conv base after iteration starts can be used to determine very first pass through an iteration reset to zero at start of each iteration in a simulation
Definition at line 115 of file conv.h.
Referenced by ChargTranEval(), ConvBase(), ConvEdenIoniz(), ConvInitSolution(), hmole(), ion_solver(), ion_trim(), IonHelium(), IonNitro(), iso_collide(), iso_radiative_recomb(), lgCheckAsserts(), PressureChange(), PresTotCurrent(), RT_DestProb(), RT_line_one(), vib_evap(), and zero().
| long int t_conv::nTotalIoniz_start |
the same counter but set to zero after the initial solution is converged, so this is a measure of the number of calls within true zones
Definition at line 120 of file conv.h.
Referenced by ConvInitSolution(), and lgCheckAsserts().
this is relative error in the pressure, initialized to 0.02 in reset with set pressure error command
Definition at line 233 of file conv.h.
Referenced by advection_set_detault(), lgConvPres(), ParseSet(), and PresTotCurrent().
