cloudy: /home66/gary/public_html/cloudy/c08_branch/source/lines

	xInten	xInten - local emissivity per unit vol, no fill fac
	wavelength	lam integer wavelength
	*chLab	string label for ion
	chInfo	character type of entry for line - 'c' cooling, 'h' heating, 'i' info only, 'r' recom line
	*chComment	string explaining line

Definition at line 452 of file lines_service.cpp.

References ASSERT, t_tag_LineSv::chComment, t_tag_LineSv::chSumTyp, DEBUG_ENTRY, t_radius::dVeff, t_tag_LineSv::emslin, t_LineSave::ipass, LineSave, LineSv, t_LineSave::nsum, radius, t_tag_LineSv::sumlin, and t_tag_LineSv::wavelength.

Referenced by lines(), lines_continuum(), lines_general(), lines_grains(), lines_helium(), lines_hydro(), lines_lv1_k_zn(), lines_lv1_li_ne(), lines_lv1_na_ar(), lines_molecules(), and PutLine().

void lindst	(	double	xInten,
		realnum	wavelength,
		const char *	chLab,
		long int	ipnt,
		char	chInfo,
		bool	lgOutToo,
		const char *	chComment
	)

put forbidden line into stack, using index derived below

Parameters:

	xInten	- local emissivity per unit vol
	wavelength	wavelength Angstroms
	*chLab	string label for ion
	ipnt	offset of line in continuum mesh
	chInfo	character type of entry for line - 'c' cooling, 'h' heating, 'i' info only, 'r' recom line
	lgOutToo	should line be included in outward beam?
	*chComment	string explaining line

Definition at line 584 of file lines_service.cpp.

References t_rfield::anu, t_rfield::AnuOrg, ASSERT, t_tag_LineSv::chComment, t_tag_LineSv::chSumTyp, DEBUG_ENTRY, t_radius::dVeff, t_radius::dVolOutwrd, t_radius::dVolReflec, emergent_line(), t_tag_LineSv::emslin, EN1RYD, EnergyRyd, t_opac::ExpZone, t_rt::fracin, t_LineSave::ipass, LineSave, LineSv, MAX2, t_rfield::nflux, t_LineSave::nsum, opac, t_rfield::outlin, radius, t_rfield::reflin, rfield, rt, RYDLAM, t_tag_LineSv::sumlin, t_tag_LineSv::wavelength, and t_rfield::widflx.

Referenced by H2_LinesAdd(), lines(), lines_continuum(), lines_general(), lines_lv1_k_zn(), lines_lv1_li_ne(), lines_lv1_na_ar(), and PutLine().

Here is the call graph for this function:

void LineConvRate2CS	(	transition *	t,
		realnum	rate
	)

convert down coll rate back into electron cs in case other parts of code need this for reference

Parameters:

	*t	- line struct collision strength is stored in t->cs
	rate	- deexcitation rate, units s-1

Definition at line 1119 of file lines_service.cpp.

References ASSERT, t_dense::cdsqte, t_transition::Coll, t_collision::cs, DEBUG_ENTRY, dense, t_quantumState::g, and t_transition::Hi.

Referenced by CoolChlo(), CoolIron(), CoolNick(), CoolSili(), and CoolSulf().

void MakeCS ( transition * t )

MakeCS compute collision strength by g-bar approximations

Parameters:

*t

Definition at line 1250 of file lines_service.cpp.

References t_transition::Coll, t_collision::cs, DEBUG_ENTRY, dense, t_transition::Emis, t_transition::EnergyK, t_transition::EnergyWN, gbar0(), gbar1(), t_emission::gf, t_transition::Hi, t_quantumState::IonStg, t_quantumState::nelem, WAVNRYD, and t_dense::xIonDense.

Referenced by CoolAlum(), CoolCalc(), CoolIron(), CoolMagn(), and CoolSili().

Here is the call graph for this function:

double OccupationNumberLine ( transition * t )

OccupationNumberLine - derive the photon occupation number at line center for any line

Parameters:

*t

Definition at line 136 of file lines_service.cpp.

References ASSERT, DEBUG_ENTRY, t_transition::Emis, t_quantumState::g, t_transition::Hi, t_transition::ipCont, t_transition::Lo, t_emission::Pesc, t_quantumState::Pop, SDIV(), and SMALLFLOAT.

Referenced by H21_cm_pops().

Here is the call graph for this function:

void outline ( transition * t )

outline - adds line photons to reflin and outlin

Todo:: 1 explore effects of adding term *opac.tmn[ip] to following

Definition at line 52 of file lines_service.cpp.

References ASSERT, t_radius::BeamInIn, t_radius::BeamInOut, t_radius::BeamOutOut, t_emission::ColOvTot, DEBUG_ENTRY, t_transition::Emis, t_emission::FracInwd, t_transition::ipCont, opac, t_rfield::outlin, t_emission::phots, radius, t_rfield::reflin, rfield, and t_opac::tmn.

Referenced by FeII_RT_Out(), and H2_RT_diffuse().

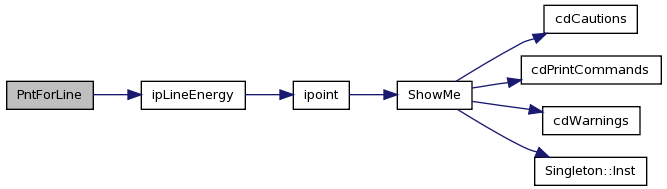

void PntForLine	(	double	wavelength,
		const char *	chLabel,
		long int *	ipnt
	)

PntForLine generate pointer for forbidden line

Parameters:

	wavelength	wavelength of line in Angstroms
	*chLabel	label for the line
	*ipnt	this is array index on the f, not c scale, for the continuum cell holding the line

Definition at line 676 of file lines_service.cpp.

References ASSERT, cdEXIT, DEBUG_ENTRY, EnergyRyd, ioQQQ, t_LineSave::ipass, ipLineEnergy(), LineSave, MAXFORLIN, and RYDLAM.

Referenced by lines(), lines_lv1_k_zn(), lines_lv1_li_ne(), and lines_lv1_na_ar().

Here is the call graph for this function:

void PutCS	(	double	cs,
		transition *	t
	)

PutCS enter a collision strength into an individual line struc

Parameters:

	cs
	*t	the line struc

Definition at line 406 of file lines_service.cpp.

References ASSERT, t_transition::Coll, t_collision::cs, and DEBUG_ENTRY.

Referenced by CoolAlum(), CoolArgo(), CoolCalc(), CoolCarb(), CoolChlo(), CoolChro(), CoolCoba(), CoolDima(), CoolFluo(), CoolIron(), CoolMagn(), CoolMang(), CoolNeon(), CoolNick(), CoolNitr(), CoolOxyg(), CoolPhos(), CoolPota(), CoolScan(), CoolSili(), CoolSodi(), CoolSulf(), CoolTita(), CoolVana(), CoolZinc(), Fe2_cooling(), and oi_level_pops().

void PutExtra ( double Extra )

PutExtra enter and 'extra' intensity source for some line

Parameters:

Extra

Definition at line 892 of file lines_service.cpp.

References DEBUG_ENTRY, and ExtraInten.

Referenced by lines(), lines_lv1_k_zn(), lines_lv1_li_ne(), and lines_lv1_na_ar().

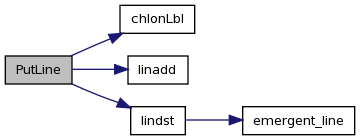

void PutLine	(	transition *	t,
		const char *	chComment,
		const char *	chLabel
	)

PutLine enter local line intensity into the intensity stack for eventual printout

Parameters:

	*t	transition structure for line
	*chComment	a description of the line
	*chLabel	the line label

Definition at line 745 of file lines_service.cpp.

References ASSERT, chLabel, t_transition::Coll, t_emission::ColOvTot, t_collision::cool, DEBUG_ENTRY, t_transition::Emis, t_transition::EnergyErg, ExtraInten, t_rt::fracin, t_emission::FracInwd, t_collision::heat, t_LineSave::ipass, t_transition::ipCont, linadd(), lindst(), LineSave, t_emission::PopOpc, t_emission::pump, rt, t_transition::WLAng, and t_emission::xIntensity.

Here is the call graph for this function:

void PutLine	(	transition *	t,
		const char *	chComment
	)

PutLine enter local line intensity into the intensity stack for eventual printout

Parameters:

	*t	transition structure for line
	*chComment	a description of the line

Definition at line 817 of file lines_service.cpp.

References ASSERT, chIonLbl(), chLabel, t_transition::Coll, t_emission::ColOvTot, t_collision::cool, DEBUG_ENTRY, t_transition::Emis, t_transition::EnergyErg, ExtraInten, t_rt::fracin, t_emission::FracInwd, t_collision::heat, t_LineSave::ipass, t_transition::ipCont, linadd(), lindst(), LineSave, t_emission::PopOpc, t_emission::pump, rt, t_transition::WLAng, and t_emission::xIntensity.

Here is the call graph for this function:

double RefIndex ( double EnergyWN )

RefIndex calculates the index of refraction of air using the line energy in wavenumbers, used to convert vacuum wavelengths to air wavelengths.

Parameters:

EnergyWN

Definition at line 369 of file lines_service.cpp.

References ASSERT, and DEBUG_ENTRY.

Referenced by atmdat_Chianti_readin(), atmdat_lamda_readin(), Fe11Lev5(), Fe13Lev5(), Fe3Lev14(), Fe7Lev8(), FillExtraLymanLine(), iso_create(), and lines_setup().

void StateJunk ( quantumState * t )

StateJunk set all elements of quantumState struc to dangerous values

Parameters:

*t

statistical weight [dimensionless]

population of state [cm-3]

ion stage of element, 1 for atom, 2 ion, etc

atomic number of element, 1 for H, 2 for He, etc

Definition at line 1012 of file lines_service.cpp.

References DEBUG_ENTRY, t_quantumState::g, t_quantumState::IonStg, t_quantumState::nelem, and t_quantumState::Pop.

Referenced by AddState2Stack().

void StateZero ( quantumState * t )

StateZero set all elements of quantumState struc to zero

Parameters:

*t

population of state [cm-3]

Definition at line 1108 of file lines_service.cpp.

References DEBUG_ENTRY, and t_quantumState::Pop.

Referenced by AddState2Stack(), and TransitionZero().

double TexcLine ( transition * t )

TexcLine derive excitation temperature of line from contents of line array

Parameters:

*t

Definition at line 160 of file lines_service.cpp.

References DEBUG_ENTRY, t_transition::EnergyK, t_quantumState::g, t_transition::Hi, t_transition::Lo, t_quantumState::Pop, and SMALLFLOAT.

Referenced by DumpLine(), and H21_cm_pops().

double totlin ( int chInfo )

totlin sum total intensity of cooling, recombination, or intensity lines

Parameters:

chInfo

chInfor is 1 char,
'i' information,
'r' recombination or
'c' collision

Definition at line 1294 of file lines_service.cpp.

References cdEXIT, DEBUG_ENTRY, ioQQQ, LineSave, LineSv, and t_LineSave::nsum.

Referenced by badprt(), and PrtComment().

void TransitionJunk ( transition * t )

TransitionJunk set all elements of transition struc to dangerous values

Parameters:

*t

Definition at line 901 of file lines_service.cpp.

References t_transition::Coll, CollisionJunk(), DEBUG_ENTRY, DummyEmis, t_transition::Emis, t_transition::EnergyErg, t_transition::EnergyK, t_transition::EnergyWN, t_transition::Hi, t_transition::ipCont, t_transition::Lo, and t_transition::WLAng.

Referenced by HyperfineCreate(), and iso_create().

Here is the call graph for this function:

void TransitionZero ( transition * t )

TransitionZero set all elements of transition struc to zero

Parameters:

*t

Definition at line 1034 of file lines_service.cpp.

References t_transition::Coll, CollisionZero(), DEBUG_ENTRY, t_transition::Emis, EmLineZero(), t_transition::Hi, t_transition::Lo, and StateZero().

Referenced by CoolCarb(), FeII_LineZero(), H2_LineZero(), iso_satellite(), and RT_tau_init().

Here is the call graph for this function:

realnum WavlenErrorGet ( realnum wavelength )

WavlenErrorGet - given the real wavelength in A for a line routine will find the error expected between the real wavelength and the wavelength printed in the output, with 4 sig figs,

Parameters:

wavelength

Returns:: function returns difference between exact and 4 sig fig wl, so we have found correct line is fabs(d wl) < return

Definition at line 425 of file lines_service.cpp.

References ASSERT, DEBUG_ENTRY, LineSave, and t_LineSave::sig_figs.

Referenced by cdDLine(), cdEmis(), cdLine(), debugLine(), GetOptLineInt(), lgCheckAsserts(), and ParseNorm().

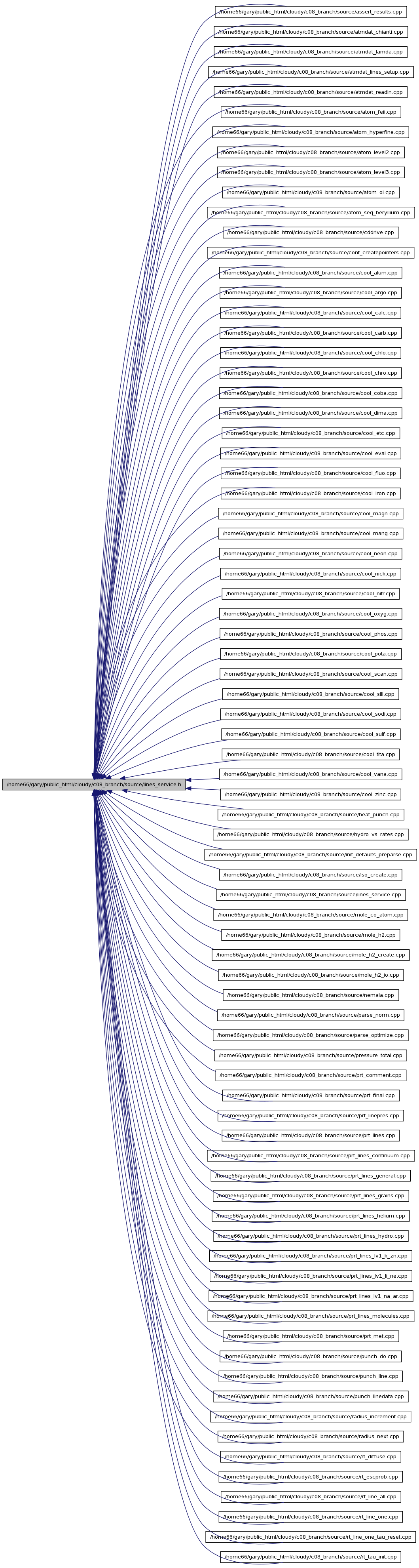

/home66/gary/public_html/cloudy/c08_branch/source/lines_service.h File Reference

Defines

Functions

Define Documentation

Function Documentation


Defines
#define	LOWDEN_LYMAN 0
Functions
void	outline (transition *t)
void	linadd (double xInten, realnum wavelength, const char chLab, char chInfo, const char chComment)
void	lindst (double xInten, realnum wavelength, const char chLab, long int ipnt, char chInfo, bool lgOutToo, const char chComment)
double	emergent_line (double emissivity_in, double emissivity_out, long int ipCont)
void	PntForLine (double wavelength, const char chLabel, long int ipnt)
void	PutLine (transition t, const char chComment)
void	PutLine (transition t, const char chComment, const char *chLabel)
double	TexcLine (transition *t)
void	DumpLine (transition *t)
double	GetGF (double eina, double enercm, double gup)
double	eina (double gf, double enercm, double gup)
double	abscf (double gf, double enercm, double gl)
double	emit_frac (transition *t)
void	chIonLbl (char , transition t)
char *	chLineLbl (transition *t)
double	RefIndex (double EnergyWN)
void	PutCS (double cs, transition *t)
realnum	WavlenErrorGet (realnum wavelength)
double	OccupationNumberLine (transition *t)
void	PutExtra (double Extra)
void	TransitionJunk (transition *t)
void	EmLineJunk (emission *t)
void	CollisionJunk (collision *t)
void	StateJunk (quantumState *t)
void	TransitionZero (transition *t)
void	EmLineZero (emission *t)
void	CollisionZero (collision *t)
void	StateZero (quantumState *t)
void	LineConvRate2CS (transition *t, realnum rate)
double	ConvRate2CS (realnum gHi, realnum rate)
bool	lgTauGood (transition *t)
void	MakeCS (transition *t)
double	totlin (int chInfo)
