The n-3He Experiment at SNS : Integration
Work package manager: Josh Hamblen
Includes the solid model of the entire experiment, and design of the common frame, mounting, and alignment hardware.
9/25/13 Teleconf
Josh; they have Auto Cad Fusion, learning of using AutoCad. Beam line model fro input from Rick Allen and other existing design from MarkNadia/Geoff want to be part of integration work package. Mark has add to his model the preamp boxes plus cables. He will provide model to Josh.
The project engineer experiment will be Jack Thomison.
10/2/2013 Teleconf
Josh got information from Libertad about the brand of extruded Al used at UNAM, and downloaded the CAD modelsHas the 3d model of the NPDG cave imported into Fusion 360.
Will work on support for Libertad's square coils.
Mark, Chris, and others will discuss design for alignment of chamber, etc at DNP meeting in Newport News, VA.
10/14/2013 Teleconf
Meeting Minutes(pdf)12/04/2013 Teleconf
12/11/2013 Integration Meeting at ORNL (meeting notes)
3/21/2014 Integration Meeting
Meeting Details(Link)5/19/2014 Integration Meeting
Meeting Minutes(pdf)Drawing and Fabrication List
5/29/2014 Draft spreadsheet
6/17/2014:
N3He Fabrication List-061714.pdf
07/03/2014 Updated List:
N3He Fabrication List-070314.pdf
07/16/2014 Updated Drawing and Fabrication List
N3He Fabrication List-071614.pdf
5/30/2014 Spin Flipper Mount Drawings (Final Signed R00 Drawings):
FUND13N3HE10M8U8713A001.pdfFUND13N3HE10M8U8713A002.pdfFUND13N3HE10M8U8713A003.pdfFUND13N3HE10M8U8713A004.pdf

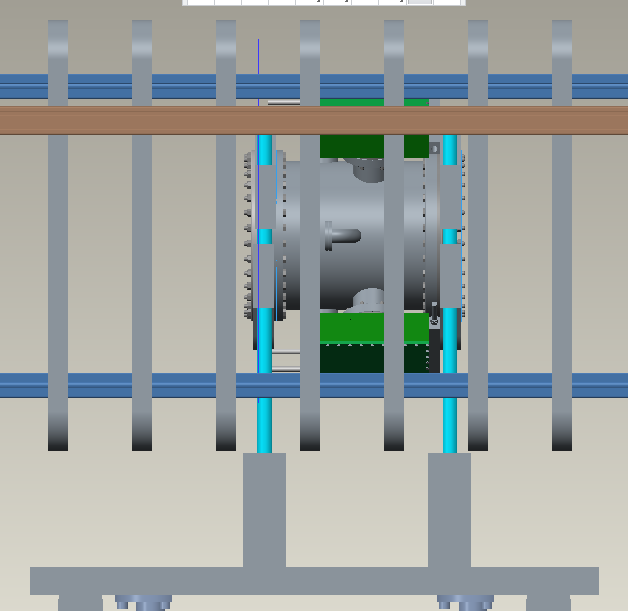

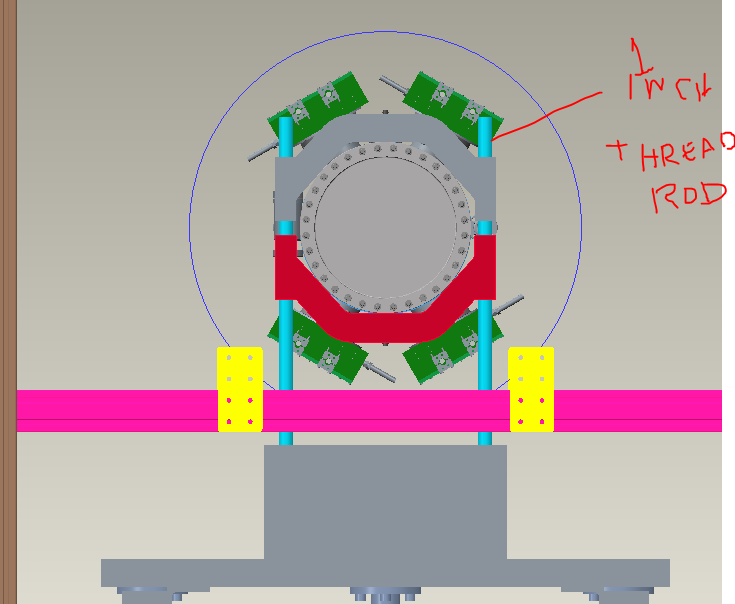

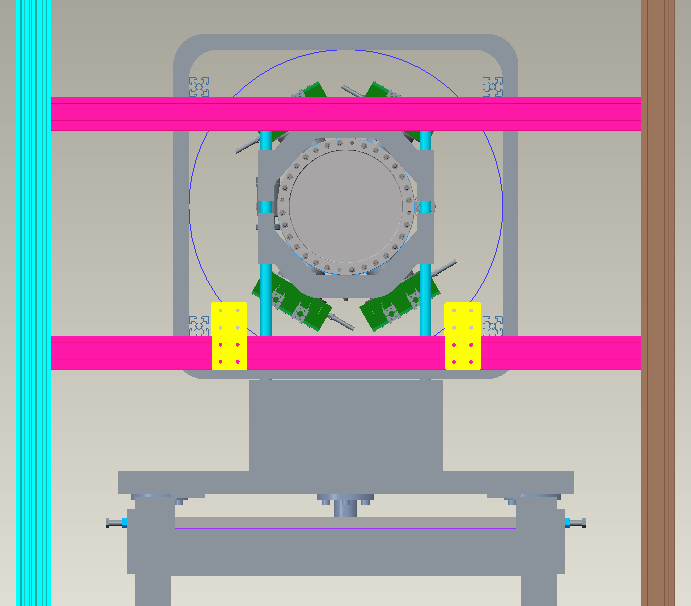

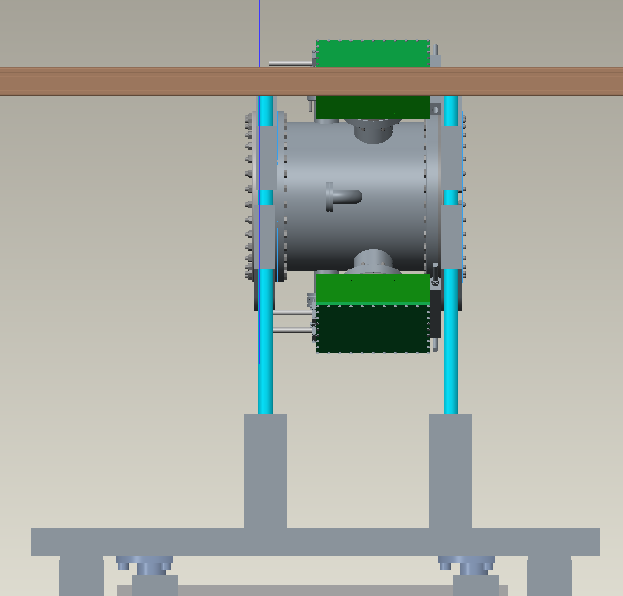

06/04/2014 Chamber Mounting:
140604-Chamber Mounting.docx
06/11/2014 Chamber Mounting Flange Draft Drawing
FUND13N3HE10M8U8713A07X-Draft.pdf
06/24/2014 Chamber Mount - Final Signed R00 Drawings:
FUND13N3HE10M8U8713A070.pdfFUND13N3HE10M8U8713A071.pdfFUND13N3HE10M8U8713A072.pdfFUND13N3HE10M8U8713A073.pdfFUND13N3HE10M8U8713A074.pdfFUND13N3HE10M8U8713A075.pdfFUND13N3HE10M8U8713A076.pdfFUND13N3HE10M8U8713A077.pdfFUND13N3HE10M8U8713A078.pdf
06/19/2014 V-Block and Sled Drawings - Final Signed R00 Drawings:
FUND13N3HE10M8U8713A060.pdfFUND13N3HE10M8U8713A061.pdfFUND13N3HE10M8U8713A062.pdf
06/19/2014 4-Jaw Collimator - Final Signed R00 Drawings:
FUND13N3HE10M8U8713A050.pdfFUND13N3HE10M8U8713A051.pdfFUND13N3HE10M8U8713A052.pdfFUND13N3HE10M8U8713A054.pdf
07/02/2014 Laser Mount - Final Signed R01 Drawings:
FUND13N3HE10M8U8713A040.pdf
07/17/2014 X-Y Scanner Mount - Final Signed R01 Drawings:
FUND13N3HE10M8U8713A020.pdf
07/30/2014 Borated Polyethylene Shield Wall - Signed Drawings
FUND13N3HE55M8U8713A001-R01.pdfFUND13N3HE55M8U8713A002-R00.pdfFUND13N3HE55M8U8713A003-R00.pdfFUND13N3HE55M8U8713A004-R01.pdfFUND13N3HE55M8U8713A005-R00.pdfFUND13N3HE55M8U8713A006-R00.pdfFUND13N3HE55M8U8713A007-R00.pdfFUND13N3HE55M8U8713A008-R00.pdf
08/20/2014 Photo of Ion Chamber Lifting Assembly
Pictures of the experiment for the Jan. 10 review meeting:
 |

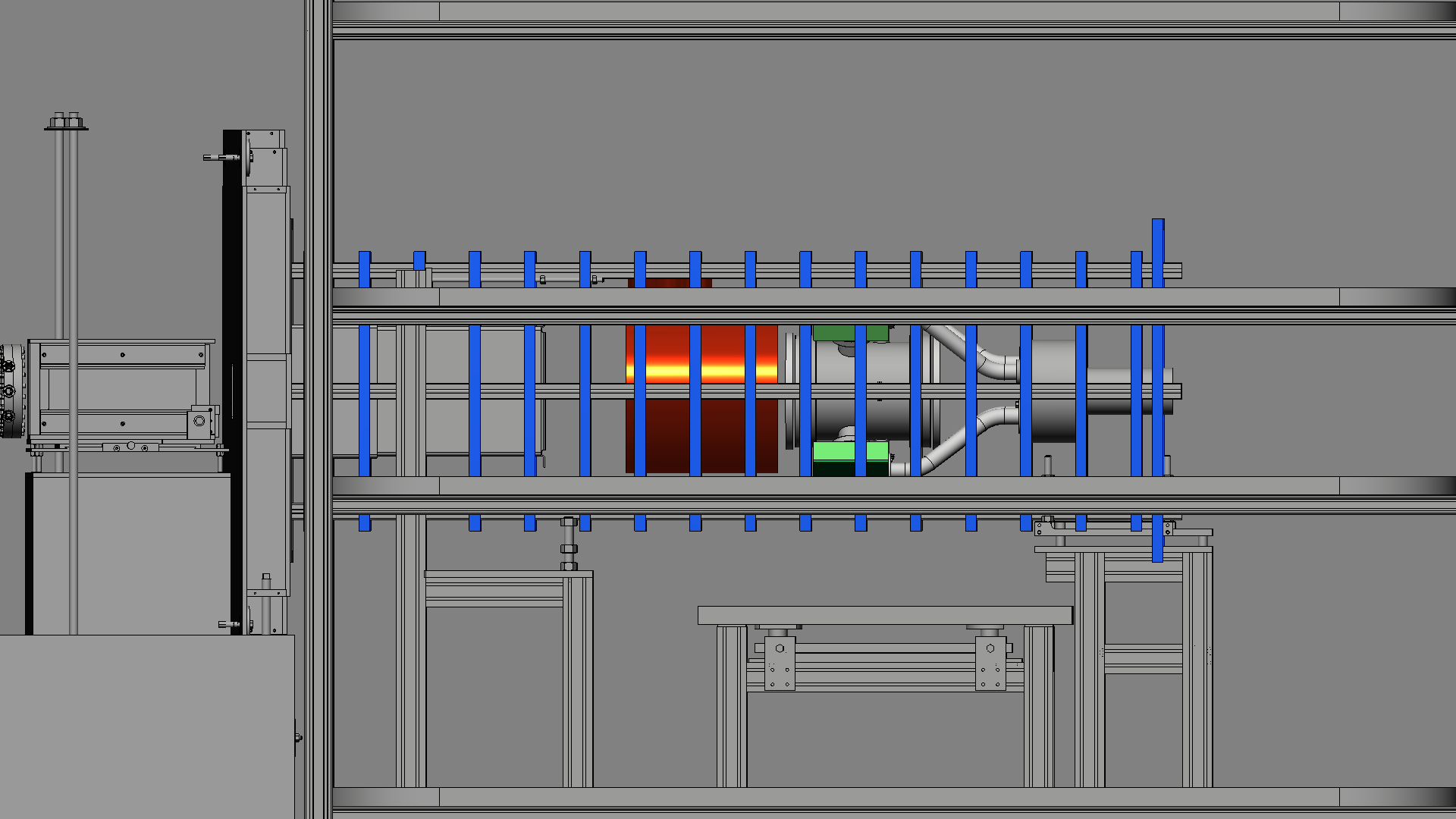

| Side View (Click for full size) |
Side View PDF
 |

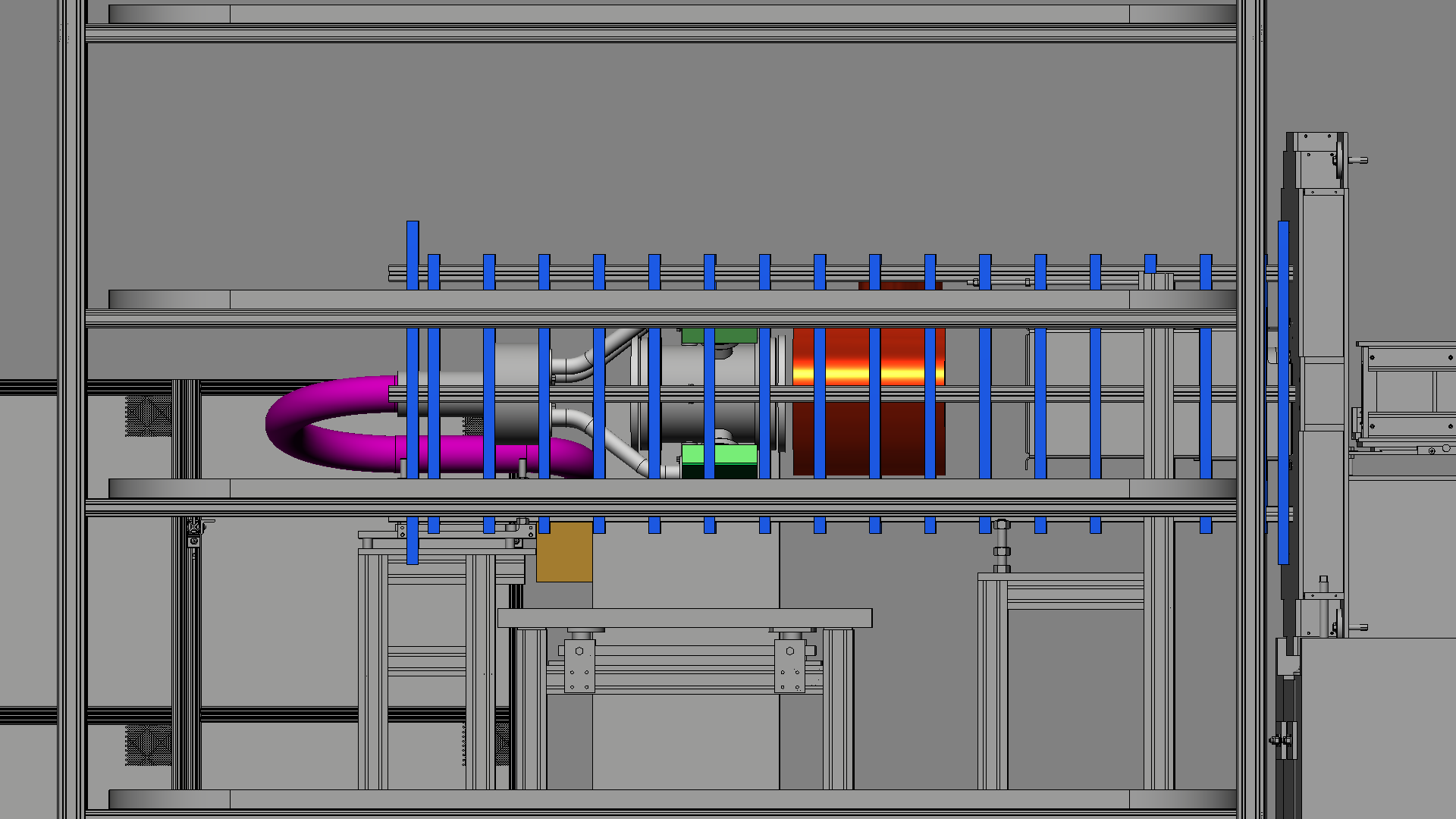

| Other Side View (Click for full size) |
Other Side View PDF
 |

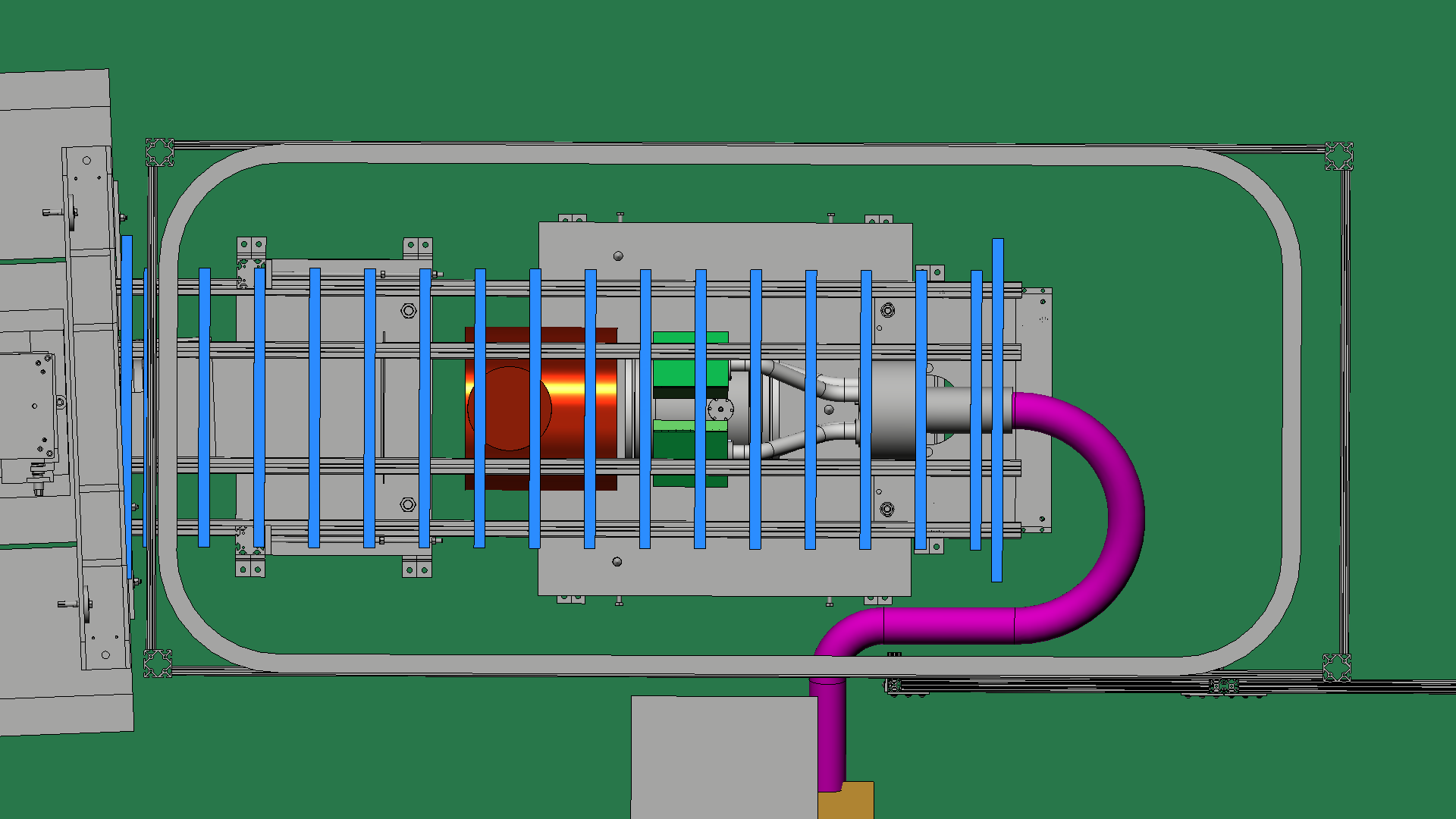

| Top View (Click for full size) |
Top View PDF
Design Files:
Official Beamline 13/NPDGamma from Rick Allen: http://www.pa.uky.edu/%7Ecrawford/pub/fund13npdg00m8u8713a001_asm.stp (file too big to upload to wiki)
10/30/13: Very preliminary n3He model (stp file) - Josh Hamblen
2/28/14: Updated n3He model (zipped stp file) - Josh Hamblen

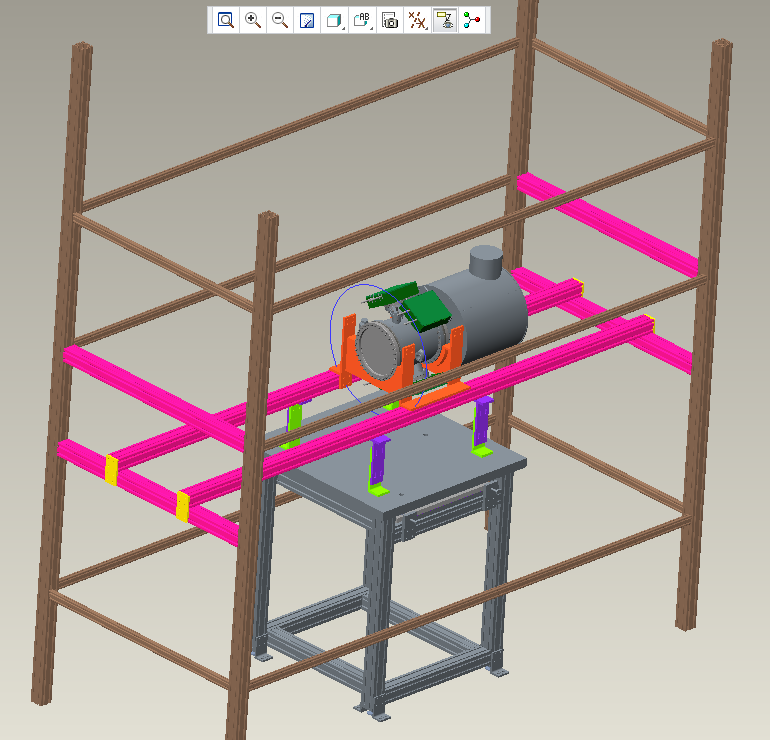

03/10/14 Pro/E Integration Model - Jack Thomison
